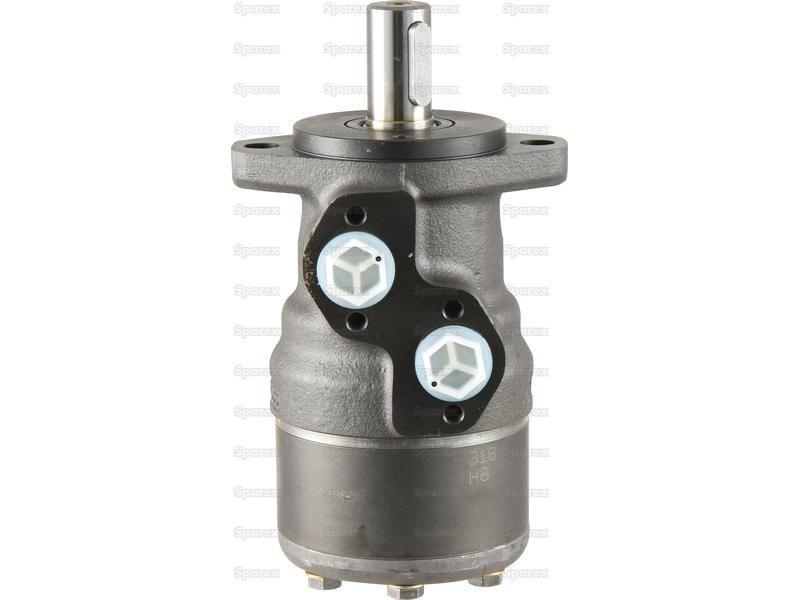

Orbital Hydraulic Motor Danfoss (11186674, 1510712, OMR100, OMR1001510712)
Part Number: S.137169Categories: Hydraulics
Part Number: S.137169
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: OMRDisplacement cm°³: 100Flow Rate: 60L/min
Technical Information
| Brand | Danfoss |
| Displacement cm³ | 100 |
| Drain Port Thread | 1/4" |

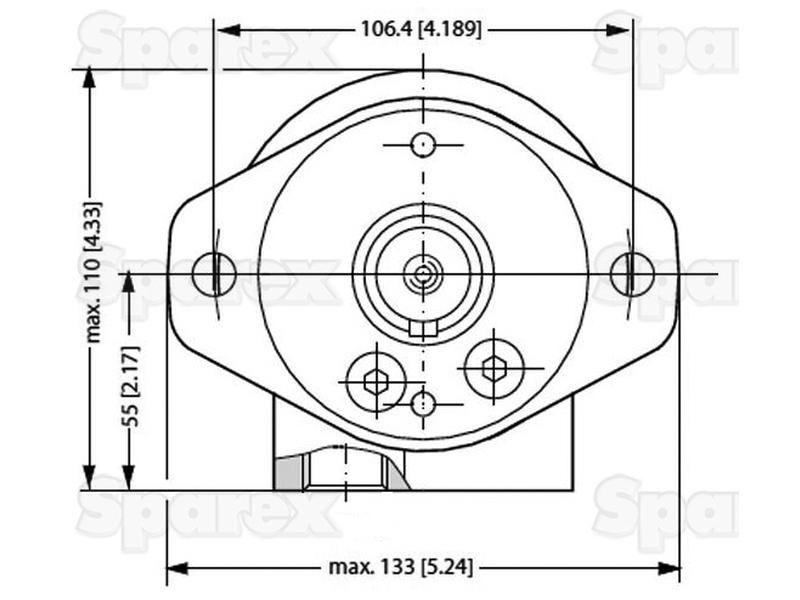

| Flange Type | Oval Mounting Flange - 2 Hole |
| Hydraulic Motor Type | OMR |

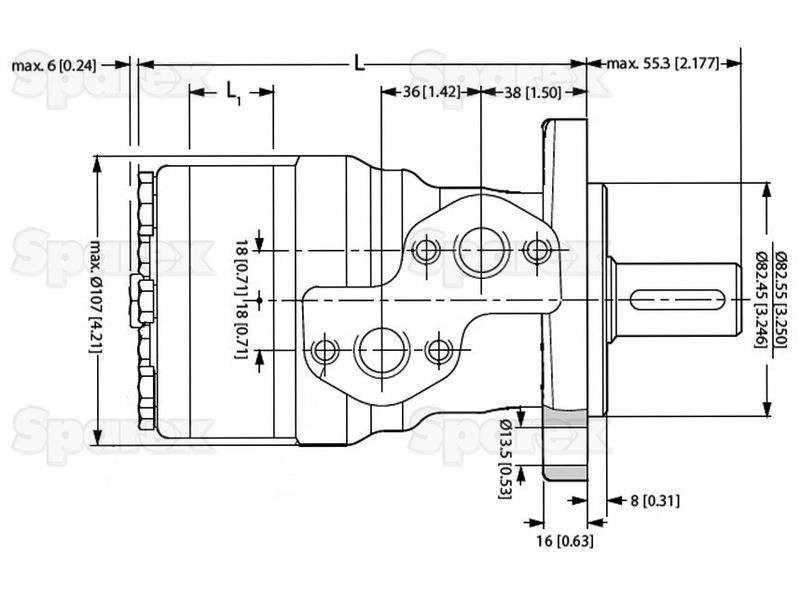

| L mm | 145 |
| L1 mm | 17.4 |
| Main Port Thread Size | 1/2" |
| Maximum Continuous KW Power | 13 |
| Maximum Continuous Torque Nm | 240 |
| Maximum Continuous Working Pressure Bar | 175 |
| Maximum Flow Rate LPM | 60 |
| Maximum Peak Torque Nm | 320 |
| Maximum Peak Working Pressure Bar | 225 |
| Maximum RPM | 600 |
| Model | OMR100 |
| Reference | 11186674 |
| Related Products | 137136 |
| Seal Kit and Repair Kits | S.137136 |

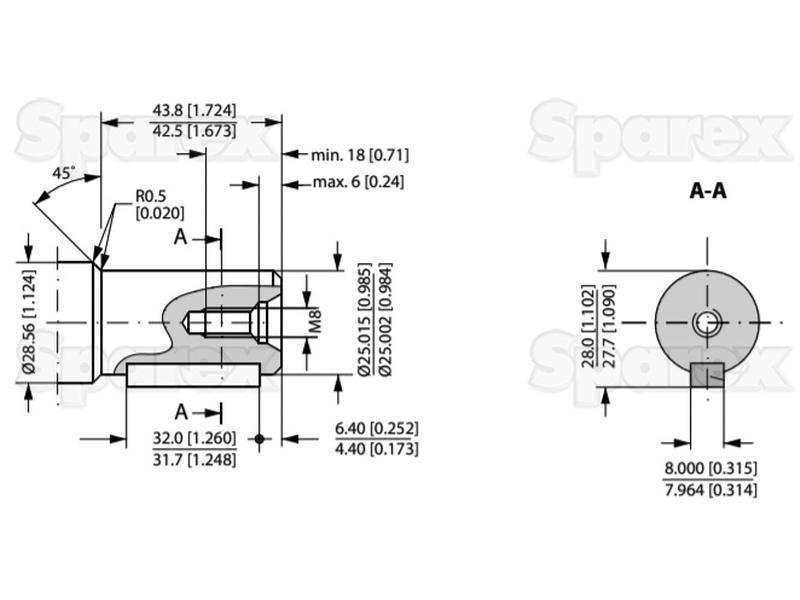

| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 11186674, 1510712, OMR100, OMR1001510712 |
