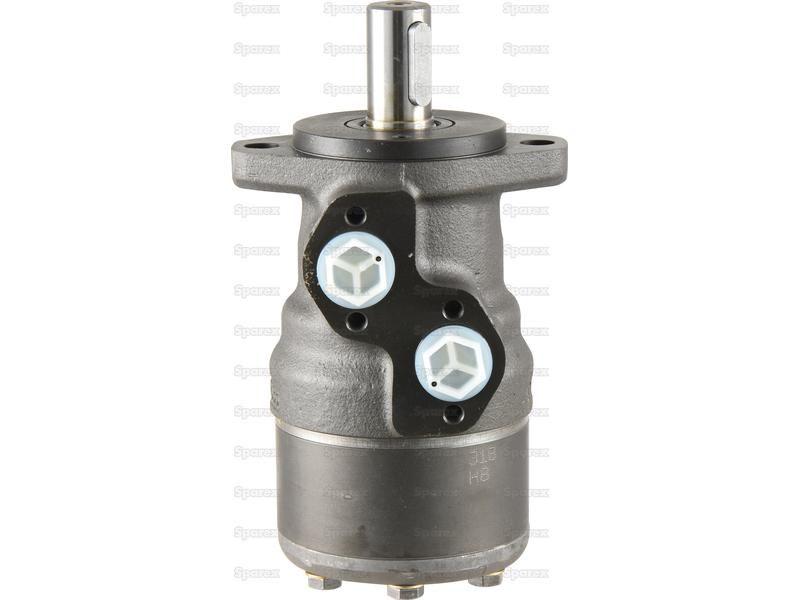

Orbital Hydraulic Motor Danfoss (11186665, 1510415, 1510715, OMR200, OMR2001510415)
Part Number: S.137155Categories: Hydraulics
Part Number: S.137155
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: OMRDisplacement cm°³: 199.8Flow Rate: 60L/min
Technical Information
| Brand | Danfoss |
| Displacement cm³ | 199.8 |
| Drain Port Thread | 1/4" |
| Flange Type | SAE Flange - 2 Hole |
| Hydraulic Motor Type | OMR |

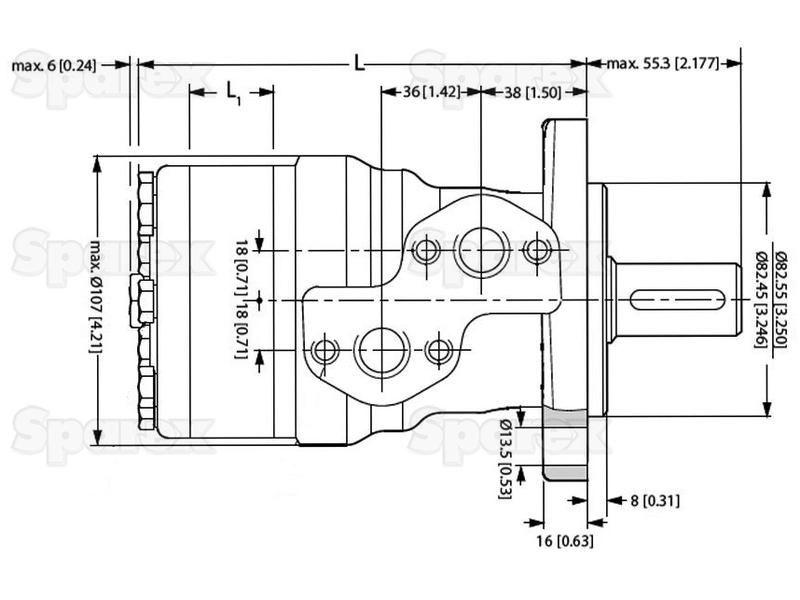

| L mm | 162.5 |
| L1 mm | 34.8 |
| Main Port Thread Size | 1/2" |
| Maximum Continuous KW Power | 8 |
| Maximum Continuous Torque Nm | 300 |
| Maximum Continuous Working Pressure Bar | 110 |
| Maximum Flow Rate LPM | 60 |
| Maximum Peak Torque Nm | 560 |
| Maximum Peak Working Pressure Bar | 225 |
| Maximum RPM | 300 |
| Model | OMR200 |
| Reference | 11186665 |
| Related Products | 137136 |
| Seal Kit and Repair Kits | S.137136 |

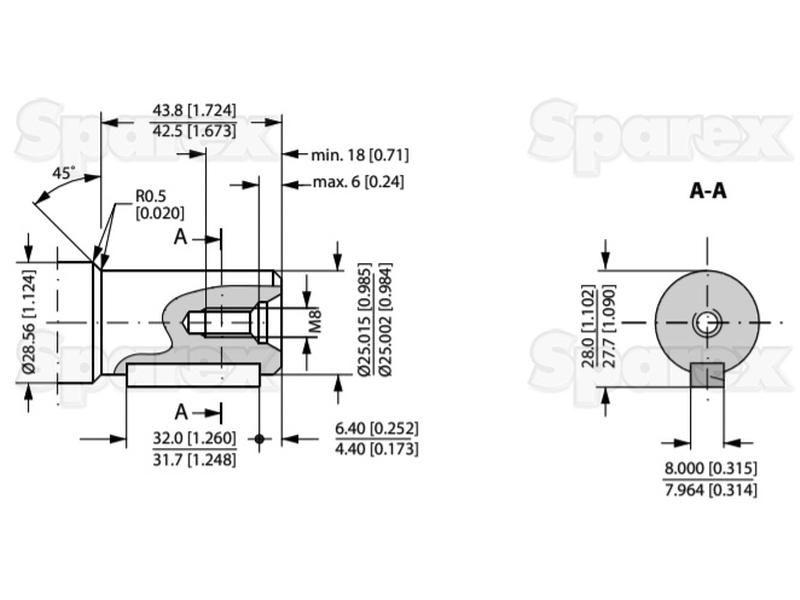

| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 11186665, 1510415, 1510715, OMR200, OMR2001510415 |
