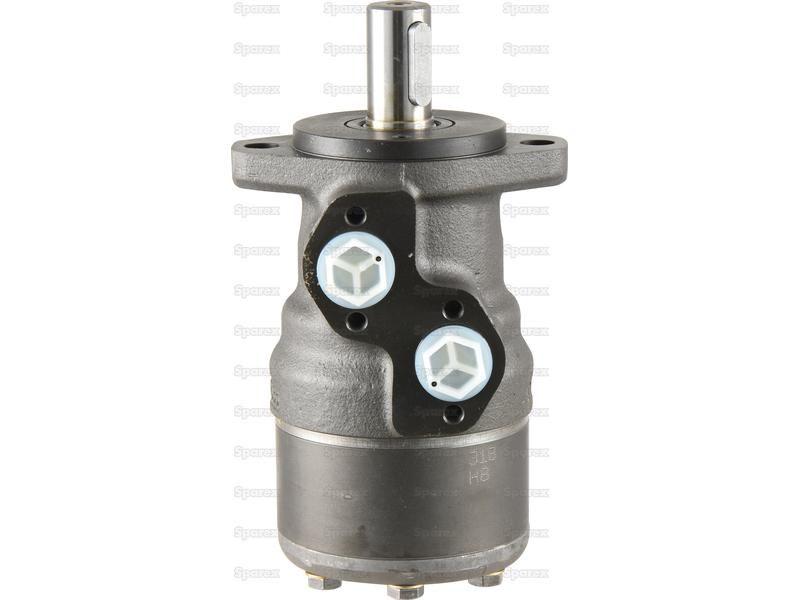

Orbital Hydraulic Motor Danfoss (11186658, 1510714, OMR160, OMR1601510714)
Part Number: S.137146Categories: Hydraulics
Part Number: S.137146
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: OMRDisplacement cm°³: 159.6Flow Rate: 60L/min

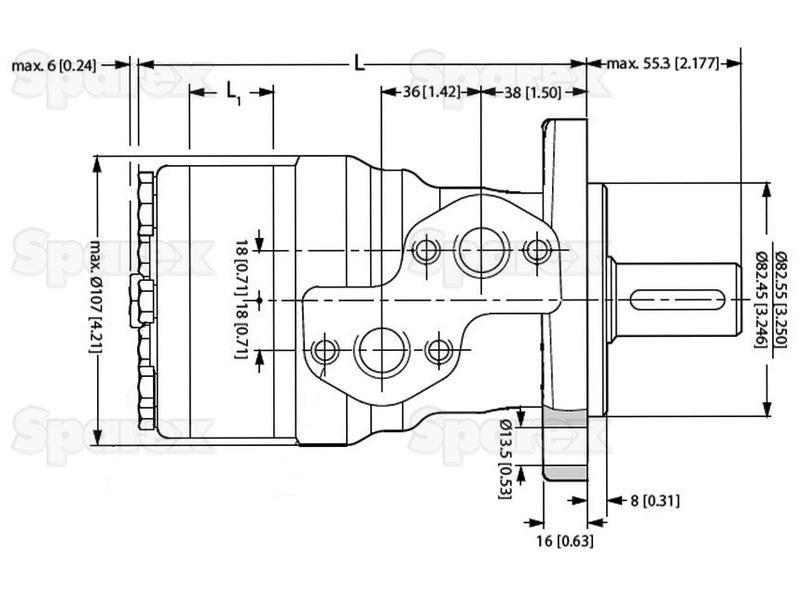

Technical Information
| Brand | Danfoss |
| Displacement cm³ | 159.6 |
| Drain Port Thread | 1/4" |

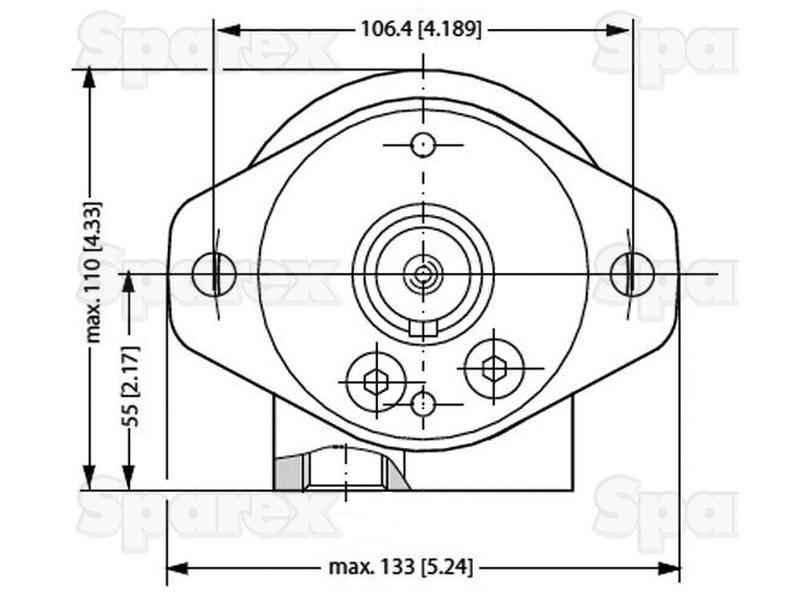

| Flange Type | SAE Flange - 2 Hole |
| Hydraulic Motor Type | OMR |
| L mm | 155.5 |
| L1 mm | 27.8 |
| Main Port Thread Size | 1/2" |
| Maximum Continuous KW Power | 10 |
| Maximum Continuous Torque Nm | 300 |
| Maximum Continuous Working Pressure Bar | 130 |
| Maximum Flow Rate LPM | 60 |
| Maximum Peak Torque Nm | 460 |
| Maximum Peak Working Pressure Bar | 225 |
| Maximum RPM | 375 |
| Model | OMR160 |
| Reference | 11186658 |
| Related Products | 137136 |
| Seal Kit and Repair Kits | S.137136 |

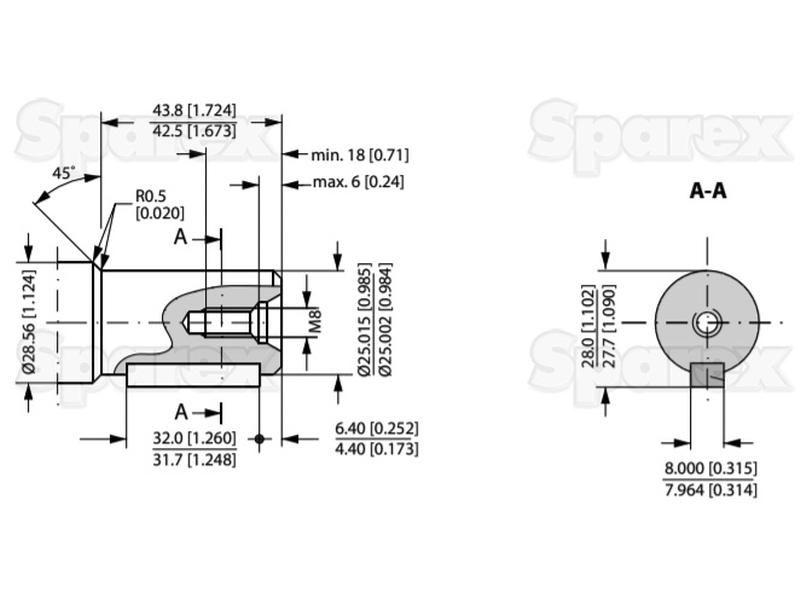

| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 11186658, 1510714, OMR160, OMR1601510714 |
