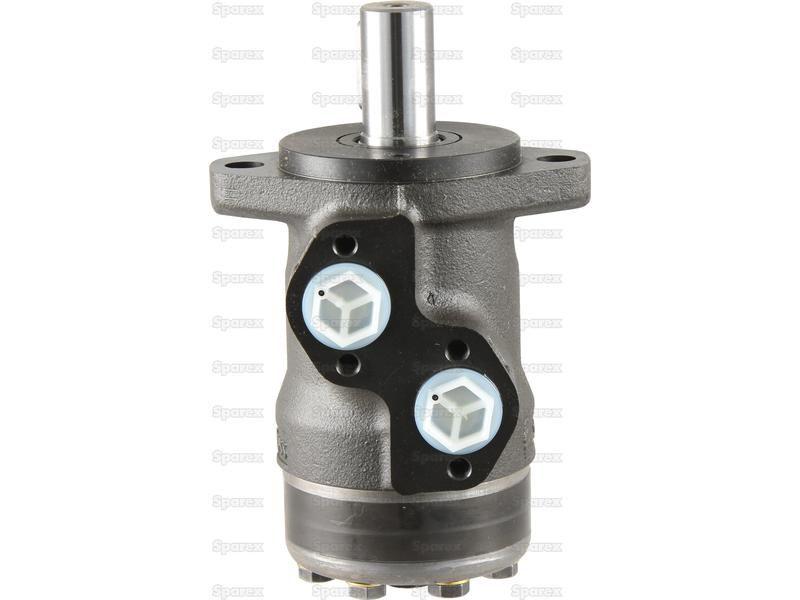

Orbital Hydraulic Motor Danfoss (11185775, 1510641, OMP32, OMP321510641)
Part Number: S.137168Categories: Hydraulics
Part Number: S.137168
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: OMPDisplacement cm°³: 32Flow Rate: 50L/min
Technical Information
| Brand | Danfoss |
| Displacement cm³ | 32 |
| Drain Port Thread | 1/4" |
| Flange Type | Oval Mounting Flange - 2 Hole |
| Hydraulic Motor Type | OMP |
| L mm | 131 |
| L1 mm | 5.2 |
| Main Port Thread Size | 1/2" |
| Maximum Continuous KW Power | 5.8 |
| Maximum Continuous Torque Nm | 43 |
| Maximum Continuous Working Pressure Bar | 100 |
| Maximum Flow Rate LPM | 50 |
| Maximum Peak Torque Nm | 86 |
| Maximum Peak Working Pressure Bar | 225 |
| Maximum RPM | 1560 |
| Model | OMP32 |
| Reference | 11185775 |
| Related Products | 137136, 137163 |
| Seal Kit and Repair Kits | S.137136 |
| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 11185775, 1510641, OMP32, OMP321510641 |
