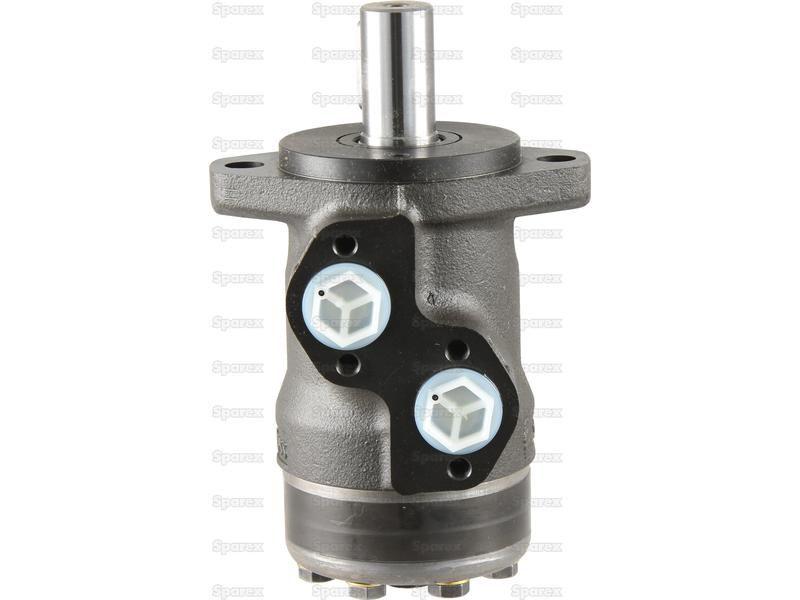

Orbital Hydraulic Motor Danfoss (11185771, 1510610, 501510610, OMP50, OMP501510610)
Part Number: S.137133Categories: Hydraulics
Part Number: S.137133
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: OMPDisplacement cm°³: 50Flow Rate: 60L/min
Technical Information
| Brand | Danfoss |
| Displacement cm³ | 50 |
| Drain Port Thread | 1/4" |

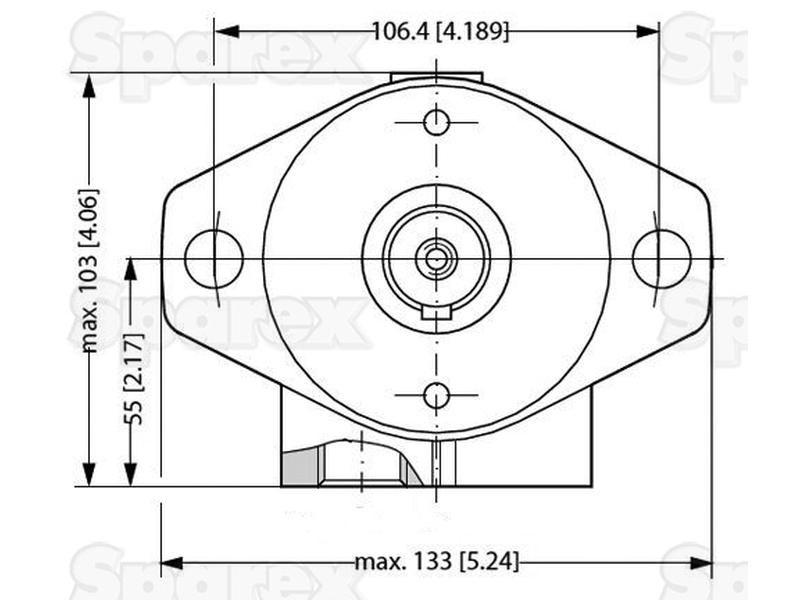

| Flange Type | SAE Flange - 2 Hole |
| Hydraulic Motor Type | OMP |

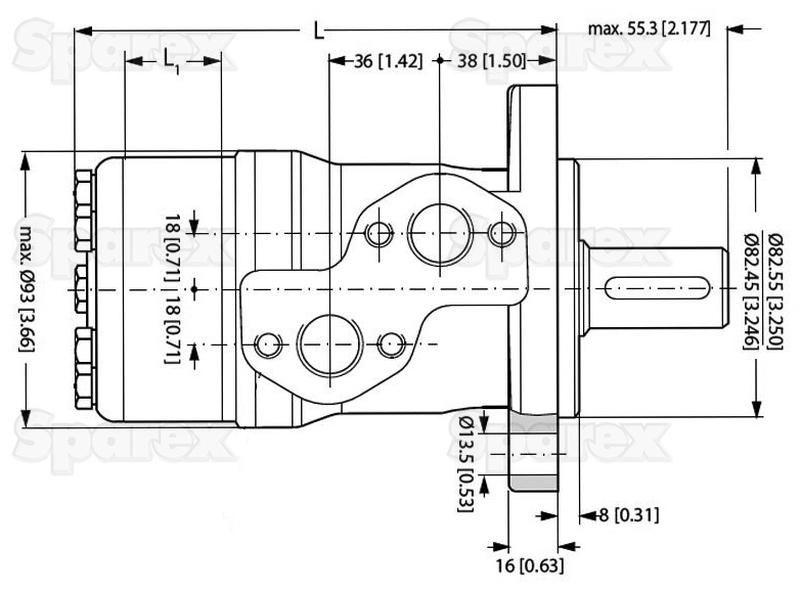

| L mm | 132 |
| L1 mm | 6.5 |
| Main Port Thread Size | 1/2" |
| Maximum Continuous KW Power | 10 |
| Maximum Continuous Torque Nm | 93 |
| Maximum Continuous Working Pressure Bar | 140 |
| Maximum Flow Rate LPM | 60 |
| Maximum Peak Torque Nm | 140 |
| Maximum Peak Working Pressure Bar | 225 |
| Maximum RPM | 1230 |
| Model | OMP50 |
| Reference | 11185771 |
| Related Products | 137136, 137163 |
| Seal Kit and Repair Kits | S.137136 |

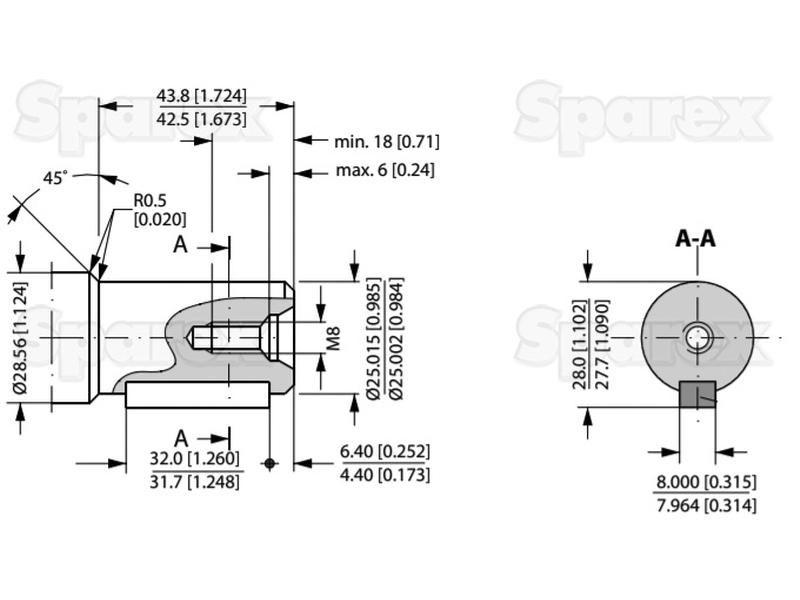

| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 11185771, 1510610, 501510610, OMP50, OMP501510610 |
