Massey Ferguson Select 100 200 300 500 600 Series Fuel Injection Pump | 83928509
Part Number: S.105953Categories: Fuel Injection
Part Number: S.105953
Grade: Replacement
Part Details

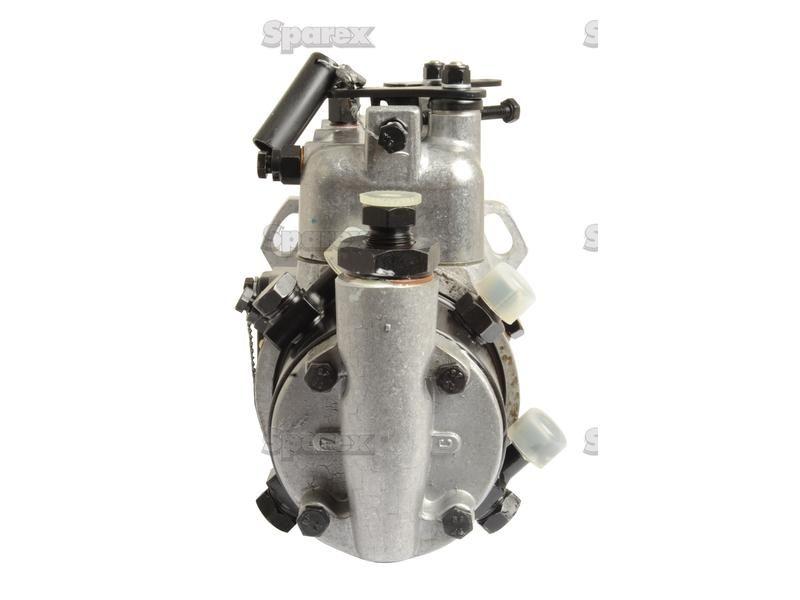

Massey Ferguson Select 100 200 300 500 600 Series Fuel Injection Pump | 83928509 Perkins A4.236
Technical Information
| Temperature range | -20°C to +73°C |
| Pressure (bar) | 0.1 |
| Maximum Plunger Stroke (mm) | 1.5 |
| Related products | 105973,24893,24894,24895,44020,44021 |
| Number of Plungers | 2 |
| Maximum Power per Engine Cylinder (kw) | 20 |
| Maximum Pump Speed rpm | 2500 |
| Number of Pumping Outlets | 4 |
| Maximum Peak Injection Pressure (bar) | 500 |
| Plunger Diameter (mm) | 8.5 |
| Tariff Code | 8413308090 |
| Engine Model | A4.236 |
| Pump rotation | Clockwise |
| Fuel lubrificated | For test: Calibration Oil ISO4113 For operate: diesel fuel |
| Automatic advance range | No |
| Hydraulic Timing Device | No |
| Engine Manufacturer | Perkins |
| Brand | Sparex |
| Mechanical Governor | Yes |
Manufacturer Part Numbers
| CAV |
|---|
| 2643C183, 3241F140, 3241F350, 3241F351, 3241F352 |
| Lucas |
| CAV3841F350 |
| Massey Ferguson |
| 1447170M91, 1447172M91, 1447175M91 |
