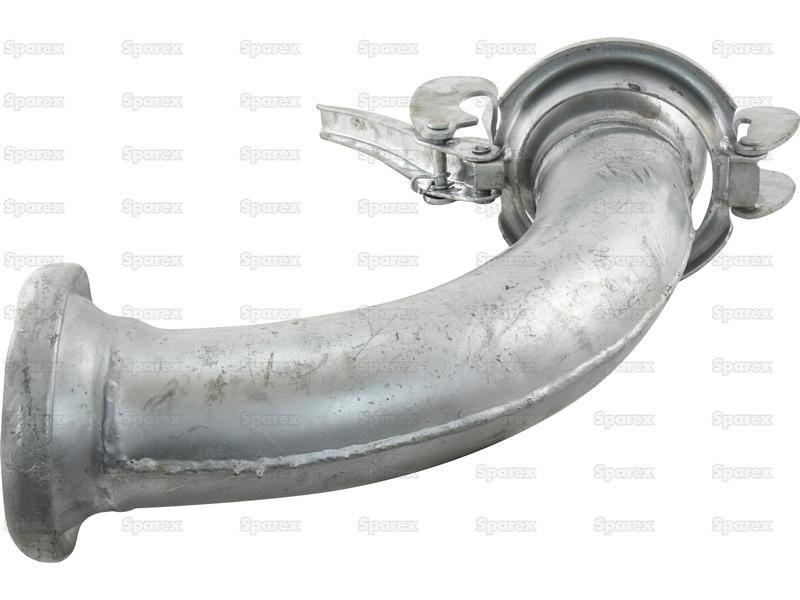

Male & Female Coupling with 90° Galvanised Bend 4" Galvanised B | Bauer
Part Number: S.59441Categories: Muck Spreader
Part Number: S.59441
Grade: Replacement
Part Details

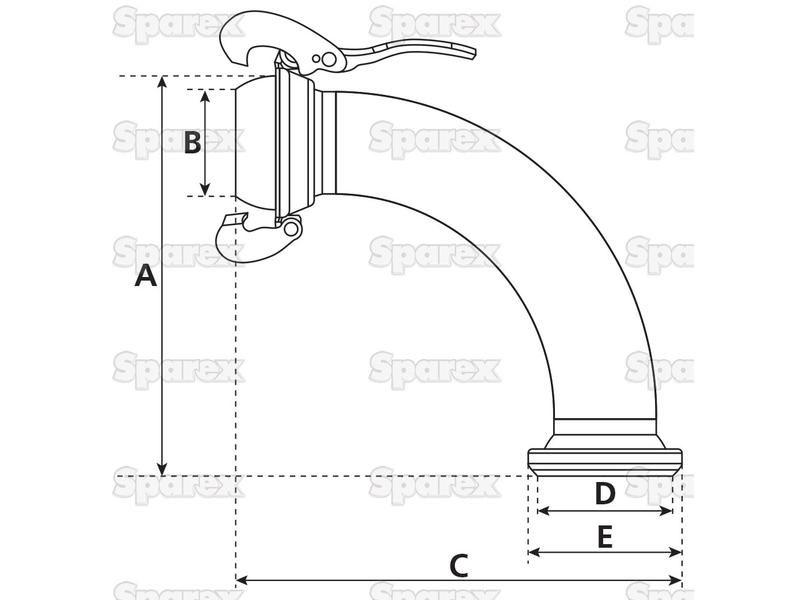

Male & Female Coupling with 90° Galvanised Bend 4" Galvanised B | Bauer Coupler type: Bauer FittingLength: 500mmA: 435mmB: 112mmC: 500mmFitted with locking pin & Chain to stop clamp handle from accidentally opening
Technical Information
| Ø ins | 4 |
| Ø mm | 108 |
| A mm | 435 |
| B mm | 112 |
| Brand | Sparex |
| C mm | 500 |
| Coupler type | Bauer Fitting |
| D mm | 146 |
| Degrees | 90° |
| E mm | 167 |
| Finish | Galvanised |
| Length mm | 500 |
| Male Female | Male / Female |
| Notes | Fitted with locking pin & Chain to stop clamp handle from accidentally opening |
| Related Products | 13, 59412 |
| Supplied with | Gasket Ring and Clamp Ring |
| Tariff Code | 7303009090 |
