Lower Link Weld On Implement Mounting Pin 22x137mm Cat. 1
Part Number: S.505Categories: PTO (shaft), Linkage
Part Number: S.505
Grade: Replacement
Part Details

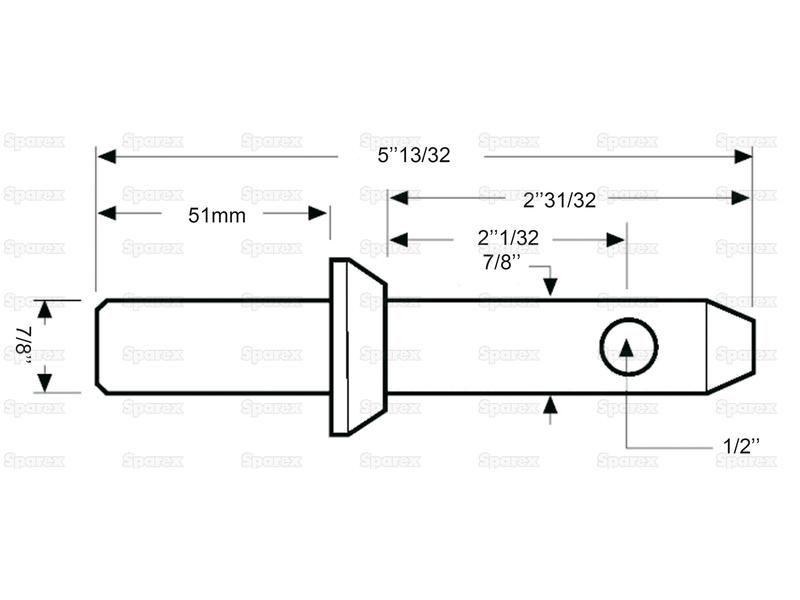

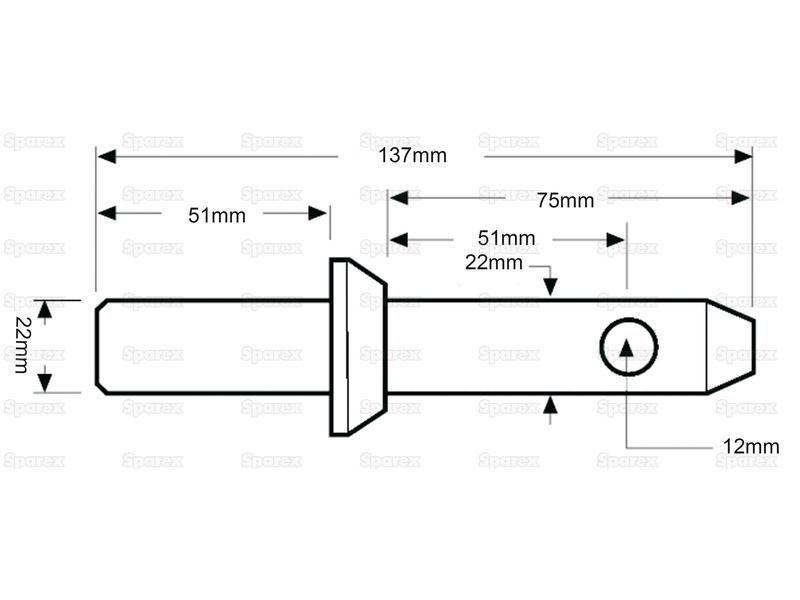

Lower Link Weld On Implement Mounting Pin 22x137mm Cat. 1 Pin Ø:22mm, Working length: 51mm, Overall length: 137mm, Hole Ø: 12mm
Technical Information
| A Ø ins | 1/2 |
| A Ø mm | 12 |
| A ins | 5 2/5 |
| A mm | 137 |
| B Ø ins | 7/8 |
| B Ø mm | 22 |
| B ins | 2 3 1/32 |
| B mm | 75 |
| Brand | Sparex |
| C ins | 2 |
| C mm | 51 |
| Category | 1 |
| D ins | 2 |
| D mm | 51 |
| E ins | 7/8 |
| E mm | 22 |
| F ins | 7/8 |
| F mm | 22 |
| Hole Ø ins | 1/2 |
| Hole Ø mm | 12 |
| Overall length ins | 5 13/32 |
| Overall length mm | 137 |
| Pin Ø ins | 7/8 |
| Pin Ø mm | 22 |
| Pin Type | Implement Attachment - Weld On |
| Related Products | 2300 |
| Tariff Code | 8708999790 |
| Working length ins | 2 1/32 |
| Working length mm | 51 |
