Lower link implement pin dual 22 - 28x191mm, Thread size 1x32mm Thread size 1/2
Part Number: S.213Categories: PTO (shaft), Linkage
Part Number: S.213
Grade: Replacement
Part Details

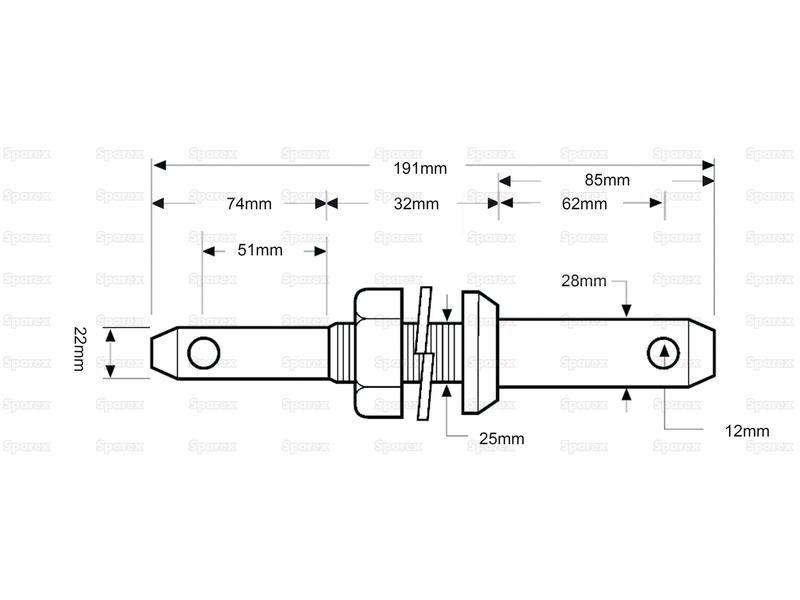

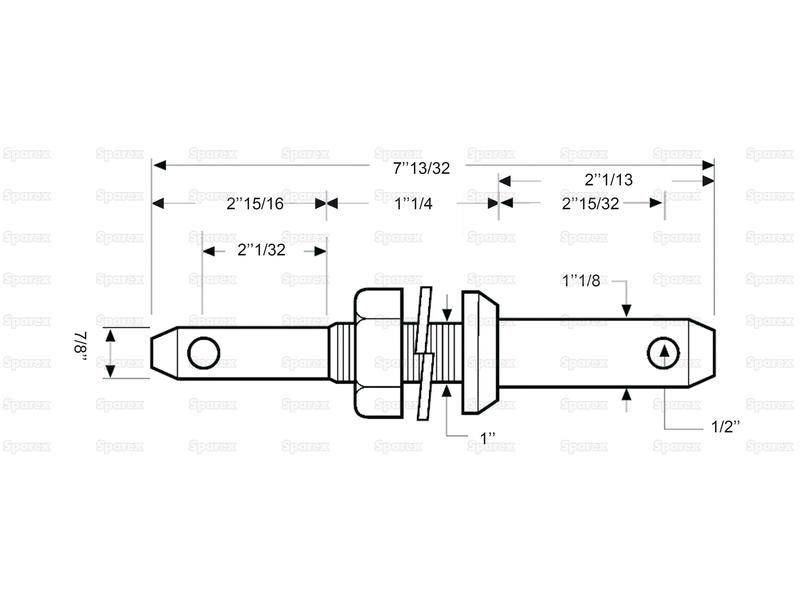

Lower link implement pin dual 22 - 28x191mm, Thread size 1x32mm Thread size 1/2 Pin Ø: 22 - 28mm, Working length: 51 - 62mm, Overall length: 191mm, Thread size: 1 UNF, Thread length: 32mm, Hole Ø: 12mm
Technical Information
| A Ø ins | 1/2 |
| A Ø mm | 12 |
| A ins | 7 2/5 |
| A mm | 191 |
| B Ø ins | 7/8 |
| B Ø mm | 22 |
| B ins | 3 |
| B mm | 74 |
| Brand | Sparex |
| C ins | 1 1/4 |
| C mm | 32 |
| Category | 1/2 |
| D ins | 2 1/2 |
| D mm | 62 |
| E ins | 2 |
| E mm | 51 |
| F ins | 2 |
| F mm | 85 |
| G ins | 1 1/8 |
| G mm | 28 |
| H ins | 1 |
| H mm | 25 |
| Hole Ø ins | 1/2 |
| Hole Ø mm | 12 |
| I ins | 7/8 |
| I mm | 22 |
| Overall length ins | 7 13/32 |
| Overall length mm | 191 |
| Pin Ø ins | 7/8 - 11/8 |
| Pin Ø mm | 22 - 28 |
| Pin Type | Implement Attachment |
| Related Products | 23194 |
| Tariff Code | 8708999790 |
| Thread length mm | 32 |
| Thread size | 1 |
| Thread type | UNF |
| Working length ins | 2 1/32 - 2 7/16 |
| Working length mm | 51 - 62 |
