Lower link implement pin 36x149mm, Thread size 1 1/8''x48mm Cat. 3
Part Number: S.3005Categories: PTO (shaft), Linkage
Part Number: S.3005
Grade: Replacement
Part Details

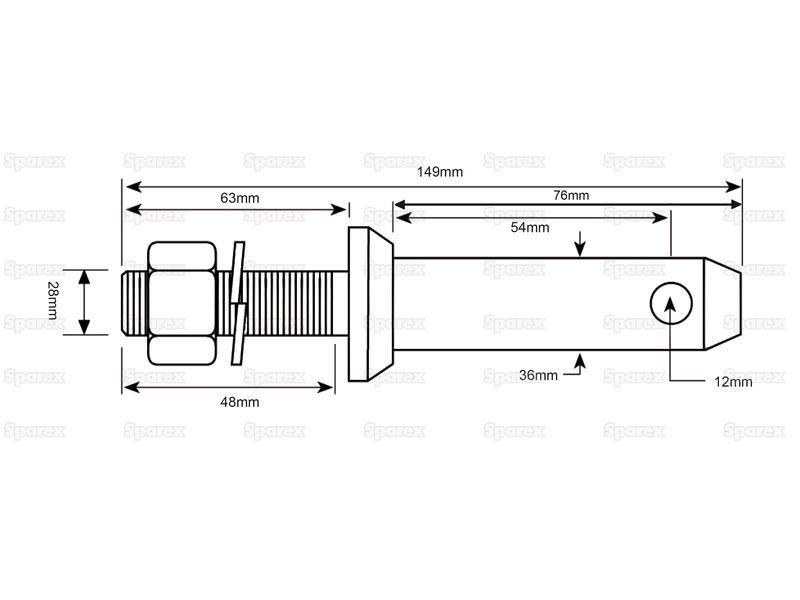

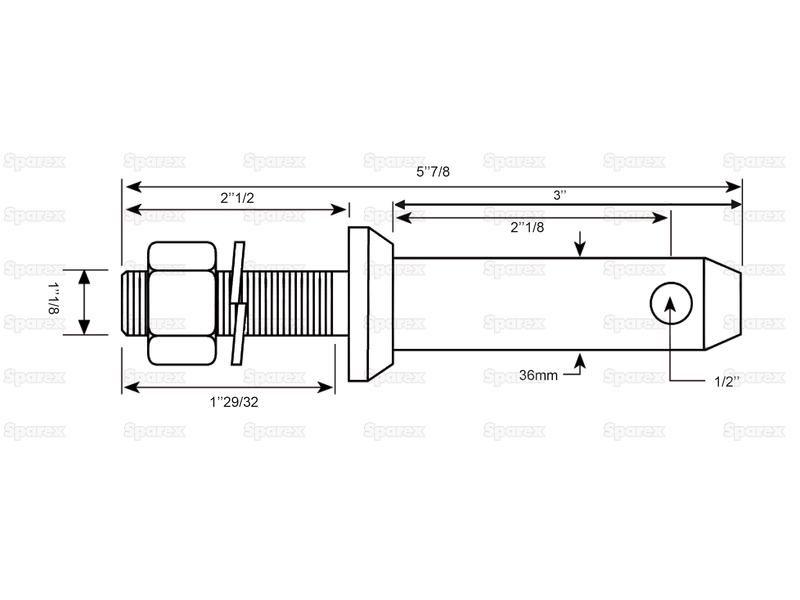

Lower link implement pin 36x149mm, Thread size 1 1/8''x48mm Cat. 3 Pin Ø: 36mm, Working length: 54mm, Overall length: 149mm, Thread size: 1 1/8'' UNF, Thread length: 48mm, Hole Ø: 12mm
Technical Information
| A Ø ins | 1/2 |
| A Ø mm | 12 |
| A ins | 5 7/8 |
| A mm | 149 |
| B Ø ins | 1 1/8 |
| B Ø mm | 28.5 |
| B ins | 3 |
| B mm | 76 |
| Brand | Sparex |
| C ins | 2 1/8 |
| C mm | 54 |
| Category | 3 |
| D ins | 2 |
| D mm | 48 |
| E ins | 2 1/2 |
| E mm | 63 |
| F ins | 1 4/9 |
| F mm | 36 |
| G ins | 1 1/8 |
| G mm | 28 |
| Hole Ø ins | 1/2 |
| Hole Ø mm | 12 |
| Overall length ins | 5 7/8 |
| Overall length mm | 149 |
| Pin Ø ins | 1 7/16 |
| Pin Ø mm | 36 |
| Pin Type | Implement Attachment |
| Related Products | 23194 |
| Tariff Code | 8708999790 |
| Thread length mm | 48 |
| Thread size | 1 1/8'' |
| Thread type | UNF |
| Working length ins | 2 1/8 |
| Working length mm | 54 |
