Lower link implement pin 28x149mm, Thread size 7/8''x38mm Cat. 2 for Massey Ferguson 765 (Pre 100 Series (1947 - 65))

Part Number: S.203Categories: PTO (shaft), Linkage
Lower link implement pin 28x149mm, Thread size 7/8''x38mm Cat. 2 for Massey Ferguson 765 (Pre 100 Series (1947 - 65))
Lower link implement pin 28x149mm, Thread size 7/8''x38mm Cat. 2 for Massey Ferguson 765 (Pre 100 Series (1947 - 65))
Lower link implement pin 28x149mm, Thread size 7/8''x38mm Cat. 2 for Massey Ferguson 765 (Pre 100 Series (1947 - 65))

Part Number: S.203

Grade: Replacement

Part Details

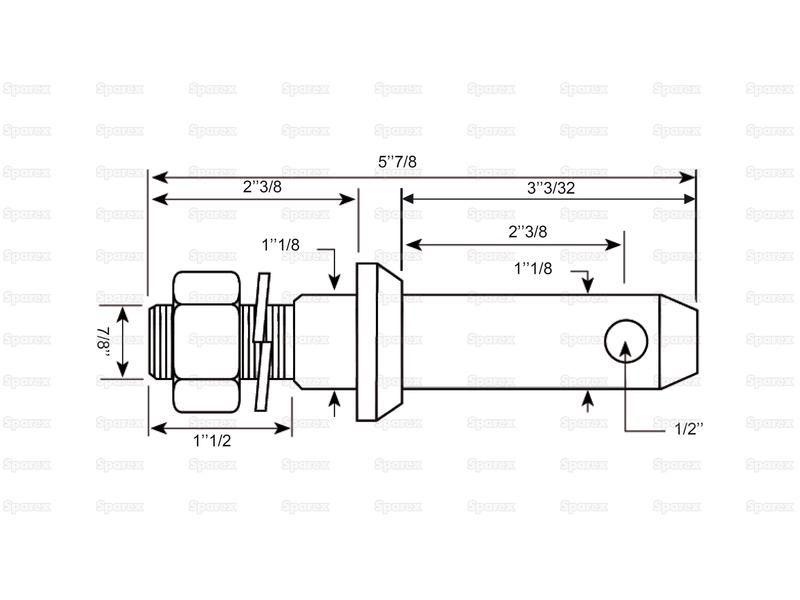

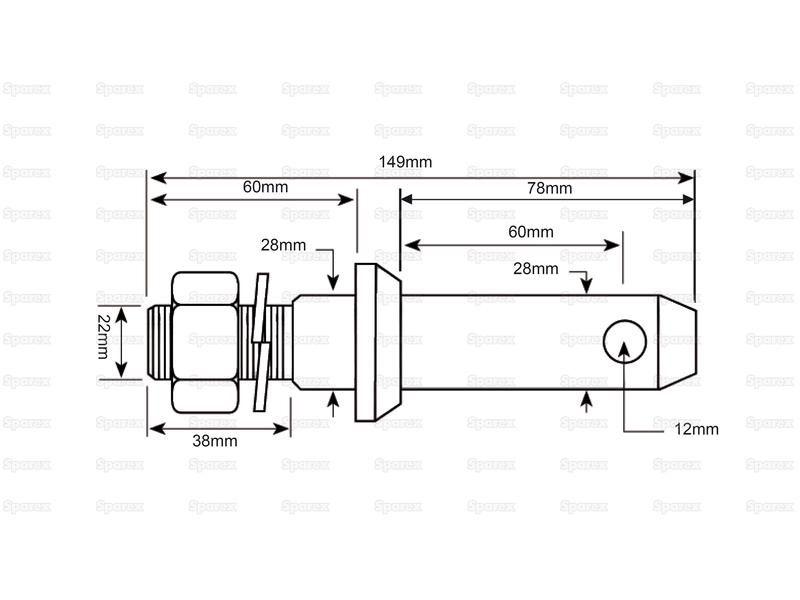

Lower link implement pin 28x149mm, Thread size 7/8''x38mm Cat. 2 Pin Ø: 28mm, Working length: 60mm, Overall length: 149mm, Thread size: 7/8'' UNF, Thread length: 38mm, Hole Ø: 12mm

Technical Information

A Ø ins 1/2
A Ø mm 12
A ins 5 7/8
A mm 149
B Ø ins 7/8
B Ø mm 22
B ins 3
B mm 78
Brand Sparex
C ins 2 3/8
C mm 60
Category 2
D ins 1 1/2
D mm 38
E ins 2 3/8
E mm 60
F ins 1 1/8
F mm 28
G ins 1 1/8
G mm 28
H ins 7/8
H mm 22
Hole Ø ins 1/2
Hole Ø mm 12
Overall length ins 5 7/8
Overall length mm 149
Pin Ø ins 1 1/8
Pin Ø mm 28
Pin Type Implement Attachment
Related Products 2301
Tariff Code 8708999790
Thread length mm 38
Thread size 7/8''
Thread type UNF
Working length ins 2 3/8
Working length mm 60

Manufacturer Part Numbers

Massey Ferguson
319522M1, 319522M91
