Lower link implement pin 28x149mm, Thread size 7/8x38mm Cat. 2
Part Number: S.900203Categories: PTO (shaft), Linkage
Part Number: S.900203
Grade: Replacement
Part Details

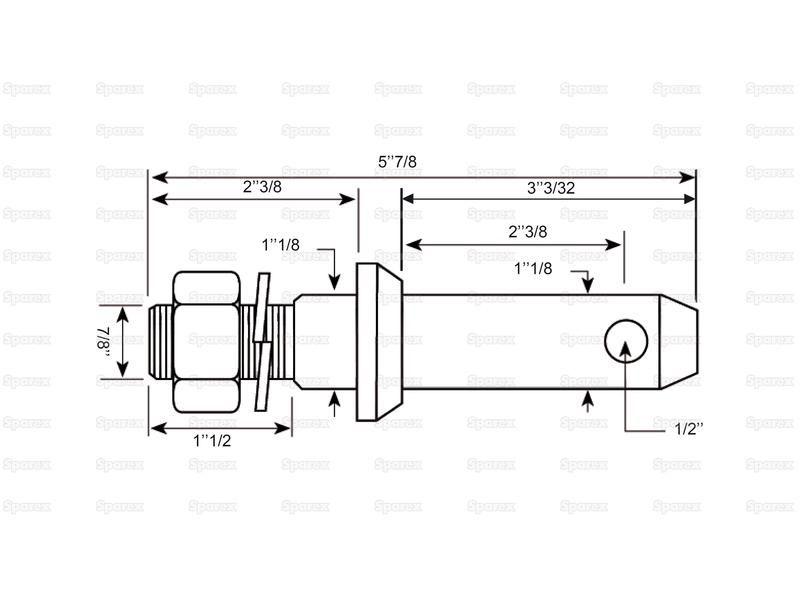

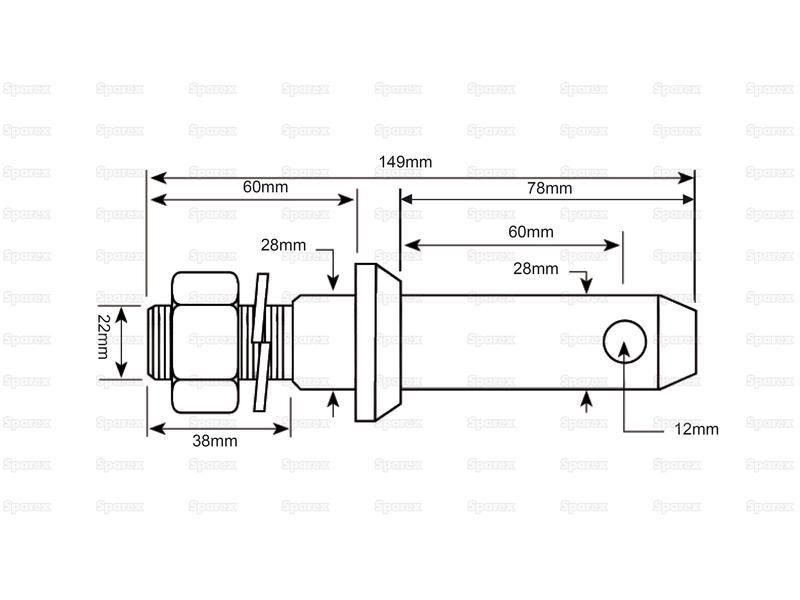

Lower link implement pin 28x149mm, Thread size 7/8x38mm Cat. 2 Pin Ø: 28mm, Working length: 60mm, Overall length: 149mm, Thread size: 7/8 UNF, Thread length: 38mm, Hole Ø: 12mm
Technical Information
| A Ø ins | 1/2 |
| A Ø mm | 12 |
| A ins | 5 7/8 |
| A mm | 149 |
| B Ø ins | 7/8 |
| B Ø mm | 22 |
| B ins | 3 |
| B mm | 78 |
| Brand | Sparex |
| C ins | 2 3/8 |
| C mm | 60 |
| Category | 2 |
| Contains | 1pc. x S.203 |
| D ins | 1 1/2 |
| D mm | 38 |
| E ins | 2 3/8 |
| E mm | 60 |
| F ins | 1 1/8 |
| F mm | 28 |
| G ins | 1 1/8 |
| G mm | 28 |
| H ins | 7/8 |
| H mm | 22 |
| Hole Ø ins | 1/2 |
| Hole Ø mm | 12 |
| Overall length ins | 5 7/8 |
| Overall length mm | 149 |
| Pack Type | Tag |
| Pieces | 1pc. |
| Pin Ø ins | 1 1/8 |
| Pin Ø mm | 28 |
| Pin Type | Implement Attachment |
| Related Products | 119246, 119248 |
| Tariff Code | 8708999790 |
| Thread length mm | 38 |
| Thread size | 7/8 |
| Thread type | UNF |
| Working length ins | 2 3/8 |
| Working length mm | 60 |
