Lower link implement pin 28x141mm, Thread size 3/4''x36mm Cat. 2 for Ransome

Part Number: S.196Categories: PTO (shaft), Linkage
Lower link implement pin 28x141mm, Thread size 3/4''x36mm Cat. 2 for Ransome
Lower link implement pin 28x141mm, Thread size 3/4''x36mm Cat. 2 for Ransome
Lower link implement pin 28x141mm, Thread size 3/4''x36mm Cat. 2 for Ransome

Part Number: S.196

Grade: Replacement

Part Details

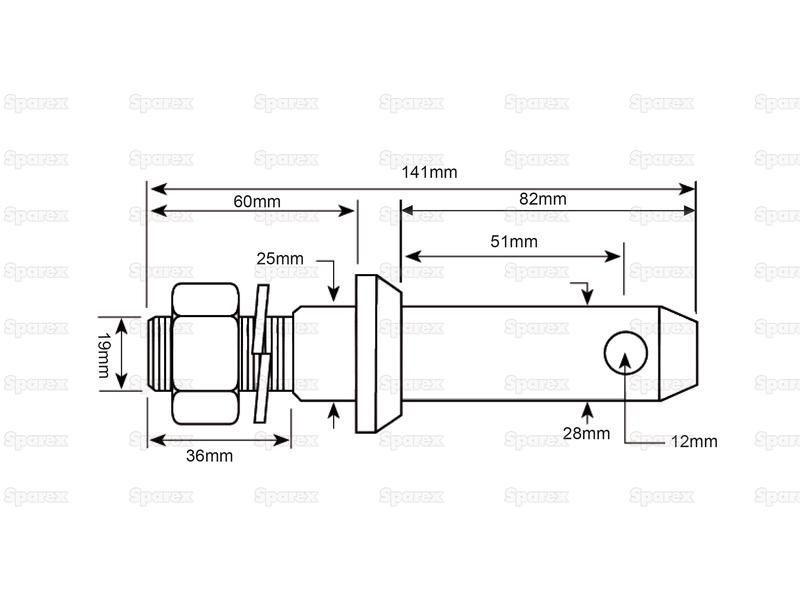

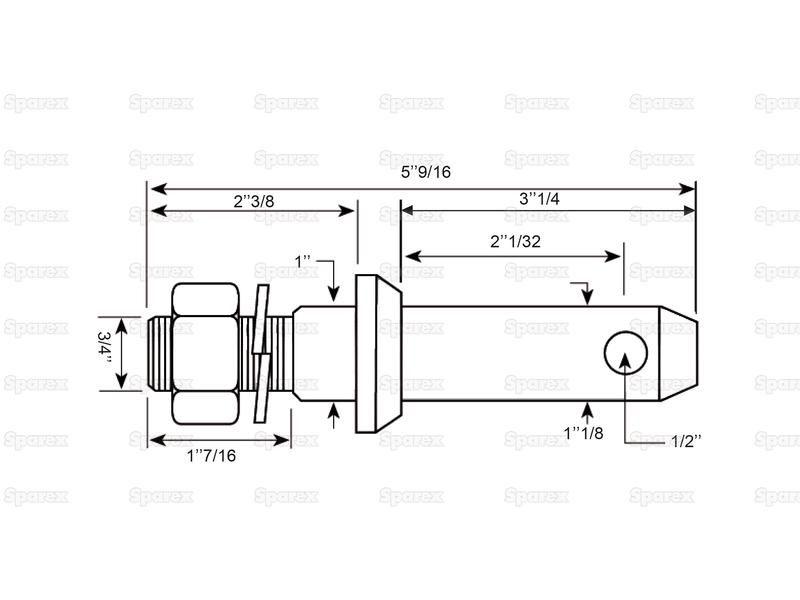

Lower link implement pin 28x141mm, Thread size 3/4''x36mm Cat. 2 Pin Ø: 28mm, Working length: 51mm, Overall length: 141mm, Thread size: 3/4'' UNF, Thread length: 36mm, Hole Ø: 12mm

Technical Information

A Ø ins 1/2
A Ø mm 12
A ins 5 4/7
A mm 141
B Ø ins 3/4
B Ø mm 19
B ins 3 1/4
B mm 82
Brand Sparex
C ins 2
C mm 51
Category 2
D ins 1 4/9
D mm 36
E ins 2 3/8
E mm 60
F ins 1 1/8
F mm 28
G ins 1
G mm 25
H ins 3/4
H mm 19
Hole Ø ins 1/2
Hole Ø mm 12
Overall length ins 5 9/16
Overall length mm 141
Pin Ø ins 1 1/8
Pin Ø mm 28
Pin Type Implement Attachment
Related Products 2301, 23194
Tariff Code 8708999790
Thread length mm 36
Thread size 3/4''
Thread type UNF
Working length ins 2 1/32
Working length mm 51

Models

Ransome
VARIOUS
