Lower link implement pin 28x137mm, Thread size 7/8''x35mm Cat. 2

Part Number: S.202Categories: PTO (shaft), Linkage
Lower link implement pin 28x137mm, Thread size 7/8''x35mm Cat. 2
Lower link implement pin 28x137mm, Thread size 7/8''x35mm Cat. 2
Lower link implement pin 28x137mm, Thread size 7/8''x35mm Cat. 2

Part Number: S.202

Grade: Replacement

Part Details

Lower link implement pin 28x137mm, Thread size 7/8''x35mm Cat. 2 Pin Ø: 28mm, Working length: 60mm, Overall length: 137mm, Thread size: 7/8'' UNF, Thread length: 35mm, Hole Ø: 12mm

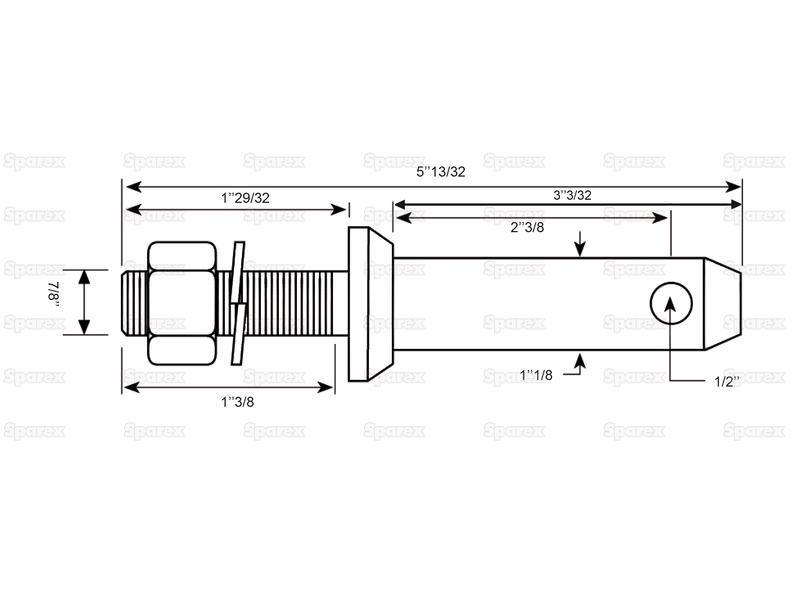

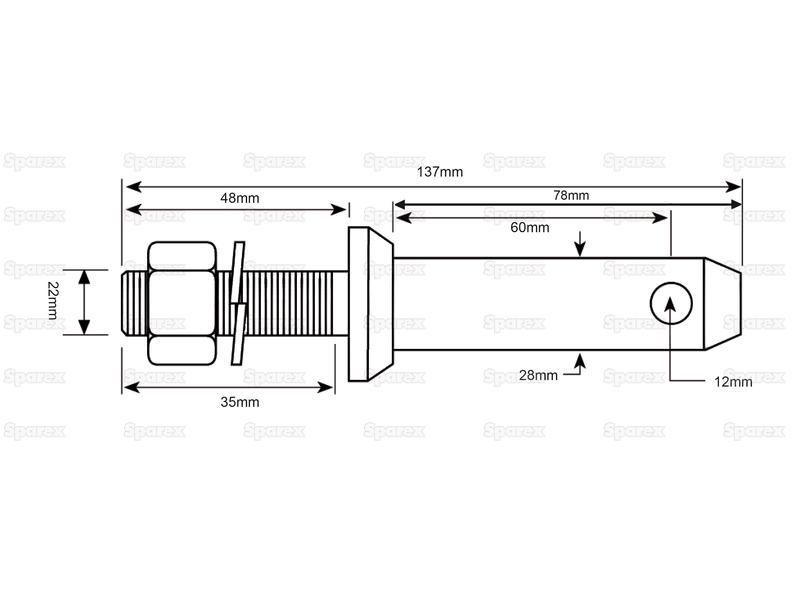

Technical Information

A Ø ins 1/2
A Ø mm 12
A ins 5 2/5
A mm 137
B Ø ins 7/8
B Ø mm 22
B ins 3 3/32
B mm 78
Brand Sparex
C ins 2 3/8
C mm 60
Category 2
D ins 1 3/8
D mm 35
E ins 2
E mm 48
F ins 1 1/8
F mm 28
G ins 7/8
G mm 22
Hole Ø ins 1/2
Hole Ø mm 12
Overall length ins 5 13/32
Overall length mm 137
Pin Ø ins 1 1/8
Pin Ø mm 28
Pin Type Implement Attachment
Related Products 2301, 23194
Tariff Code 8708999790
Thread length mm 35
Thread size 7/8''
Thread type UNF
Working length ins 2 3/8
Working length mm 60
