Lower link implement pin 22x168mm, Thread size 7/8x64mm Cat. 1
Part Number: S.3004Categories: PTO (shaft), Linkage
Part Number: S.3004
Grade: Replacement
Part Details

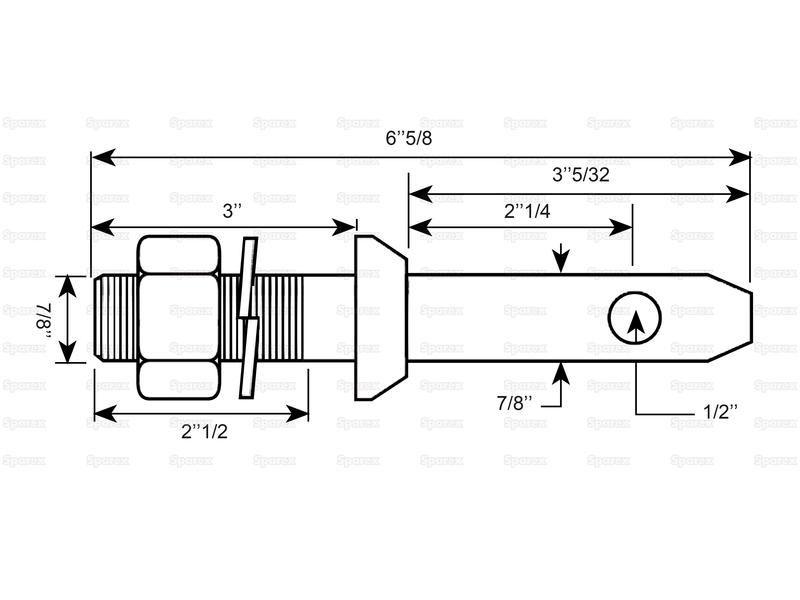

Lower link implement pin 22x168mm, Thread size 7/8x64mm Cat. 1 Pin Ø: 22mm, Working length: 57mm, Overall length: 168mm, Thread size: 7/8 UNF, Thread length: 64mm, Hole Ø: 12mm
Technical Information
| A Ø ins | 1/2 |
| A Ø mm | 12 |
| A ins | 6 5/8 |
| A mm | 168 |
| Amps Max. | 85 |
| Amps Min. | 55 |
| B ins | 3 1/6 |
| B mm | 80 |
| Brand | Sparex |
| C ins | 2 1/4 |
| C mm | 57 |
| Category | 1 |
| D ins | 2 1/2 |
| D mm | 64 |
| E ins | 3 |
| E mm | 76 |
| F ins | 7/8 |
| F mm | 22 |
| G ins | 7/8 |
| G mm | 22 |
| Hole Ø ins | 1/2 |
| Hole Ø mm | 12 |
| Overall length ins | 6 5/8 |
| Overall length mm | 168 |
| Pack Type | Agripak |
| Pin Ø ins | 7/8 |
| Pin Ø mm | 22 |
| Pin Type | Implement Attachment |
| Tariff Code | 8708999790 |
| Thread length mm | 64 |
| Thread size | 7/8 |
| Thread type | UNF |
| Working length ins | 2 1/4 |
| Working length mm | 57 |
