Lower link implement pin 22x146mm, Thread size 7/8''x40mm Cat. 1 for Massey Ferguson 765 (Pre 100 Series (1947 - 65))

Part Number: S.201Categories: PTO (shaft), Linkage
Lower link implement pin 22x146mm, Thread size 7/8''x40mm Cat. 1 for Massey Ferguson 765 (Pre 100 Series (1947 - 65))
Lower link implement pin 22x146mm, Thread size 7/8''x40mm Cat. 1 for Massey Ferguson 765 (Pre 100 Series (1947 - 65))
Lower link implement pin 22x146mm, Thread size 7/8''x40mm Cat. 1 for Massey Ferguson 765 (Pre 100 Series (1947 - 65))

Part Number: S.201

Grade: Replacement

Part Details

Lower link implement pin 22x146mm, Thread size 7/8''x40mm Cat. 1 Pin Ø: 22mm, Working length: 51mm, Overall length: 146mm, Thread size: 7/8'' UNF, Thread length: 40mm, Hole Ø: 12mm

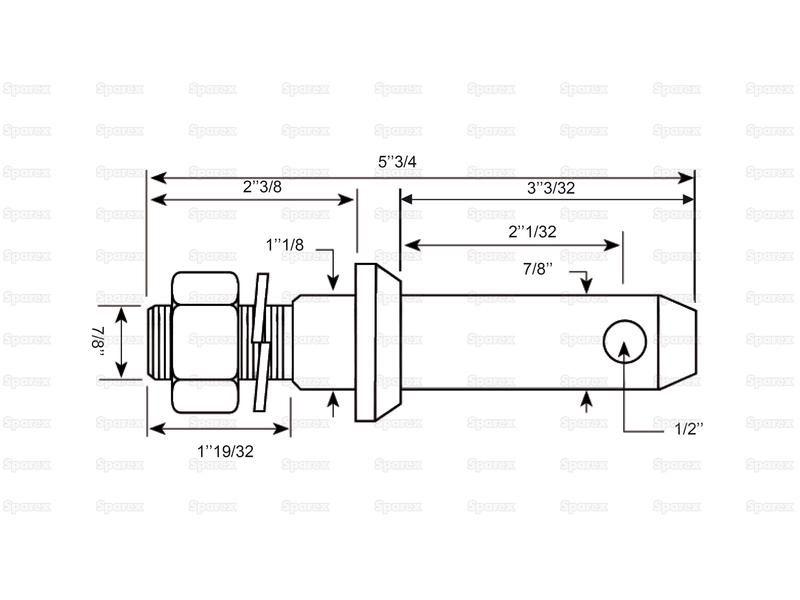

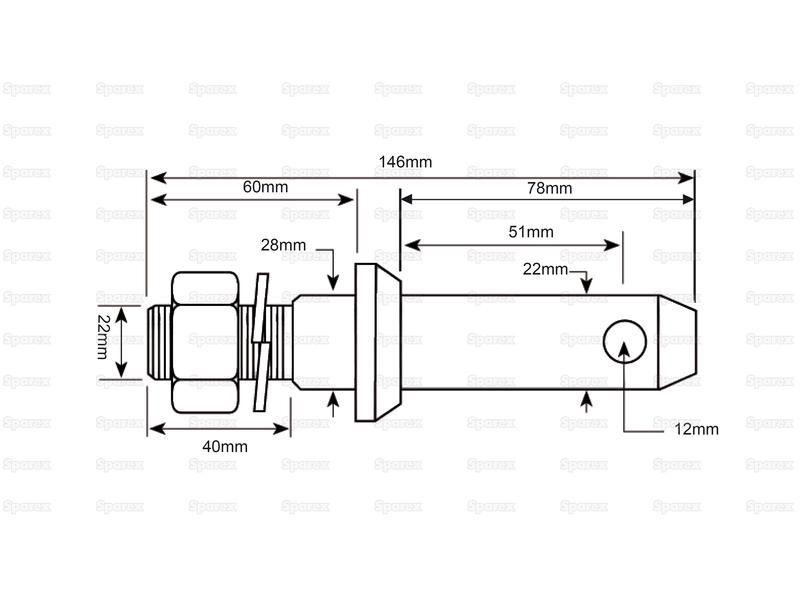

Technical Information

A Ø ins 1/2
A Ø mm 12
A ins 5 3/4
A mm 146
B Ø ins 7/8
B Ø mm 22
B ins 3
B mm 78
Brand Sparex
C ins 2
C mm 51
Category 1
D ins 1 3/5
D mm 40
E ins 2 3/8
E mm 60
F ins 7/8
F mm 22
G ins 1 1/8
G mm 28
H ins 7/8
H mm 22
Hole Ø ins 1/2
Hole Ø mm 12
Overall length ins 5 3/4
Overall length mm 146
Pin Ø ins 7/8
Pin Ø mm 22
Pin Type Implement Attachment
Related Products 2300
Tariff Code 8708999790
Thread length mm 40
Thread size 7/8''
Thread type UNF
Working length ins 2 1/32
Working length mm 51

Manufacturer Part Numbers

Massey Ferguson
319521M1, 319521M91
