Lower link implement pin 22x135mm, Thread size 7/8''x70mm Cat. 1
Part Number: S.211 - Categories: PTO (shaft), Linkage
£17.01
per item, including UK VAT and delivery
Part Number: S.211
Grade: Replacement
Part Details

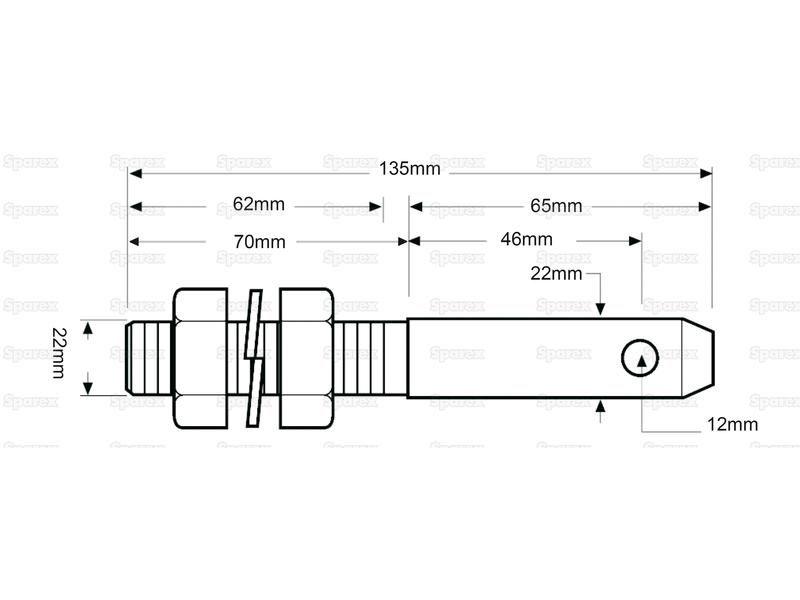

Lower link implement pin 22x135mm, Thread size 7/8''x70mm Cat. 1 Pin Ø: 22mm, Working length: 46mm, Overall length: 135mm, Thread size: 7/8'' UNF, Thread length: 70mm, Hole Ø: 12mm
Technical Information
| A Ø ins | 1/2 |
| A Ø mm | 12 |
| A ins | 5 1/3 |
| A mm | 135 |
| B Ø ins | 7/8 |
| B Ø mm | 22 |
| B ins | 2 4/7 |
| B mm | 65 |
| Brand | Sparex |
| C ins | 1 4/5 |
| C mm | 46 |
| Category | 1 |
| D ins | 2 1/2 |
| D mm | 62 |
| E ins | 2 3/4 |
| E mm | 70 |
| F ins | 7/8 |
| F mm | 22 |
| G ins | 7/8 |
| G mm | 22 |
| Hole Ø ins | 1/2 |
| Hole Ø mm | 12 |
| Overall length ins | 5 5/16 |
| Overall length mm | 135 |
| Pin Ø ins | 7/8 |
| Pin Ø mm | 22 |
| Pin Type | Implement Attachment |
| Related Products | 2300 |
| Tariff Code | 8708999790 |
| Thread length mm | 70 |
| Thread size | 7/8'' |
| Thread type | UNF |
| Working length ins | 1 3/16 |
| Working length mm | 46 |
