Lower link implement pin 16x102mm, Thread size 5/8''x57mm Cat. 0
Part Number: S.3137Categories: PTO (shaft), Linkage
Part Number: S.3137
Grade: Replacement
Part Details

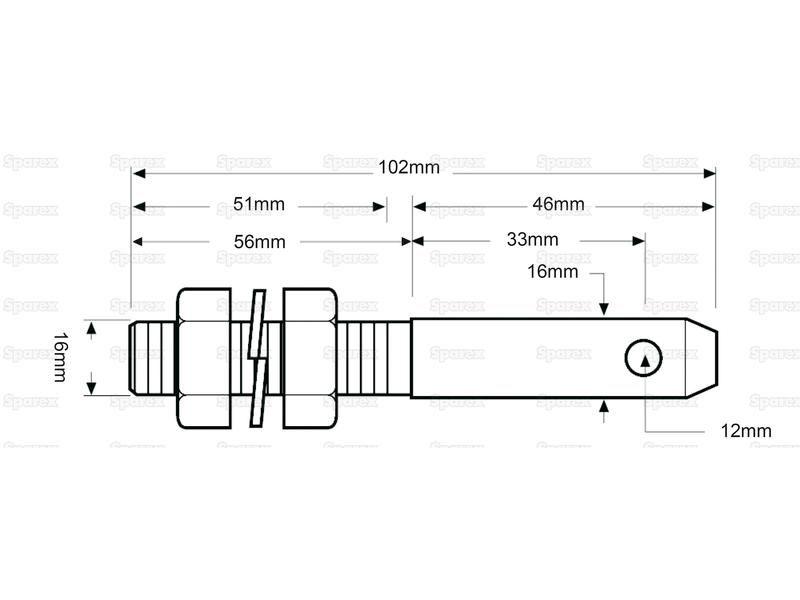

Lower link implement pin 16x102mm, Thread size 5/8''x57mm Cat. 0 Pin Ø: 16mm, Working length: 33mm, Overall length: 102mm, Thread size: 5/8'' UNF, Thread length: 57mm, Hole Ø: 7mm

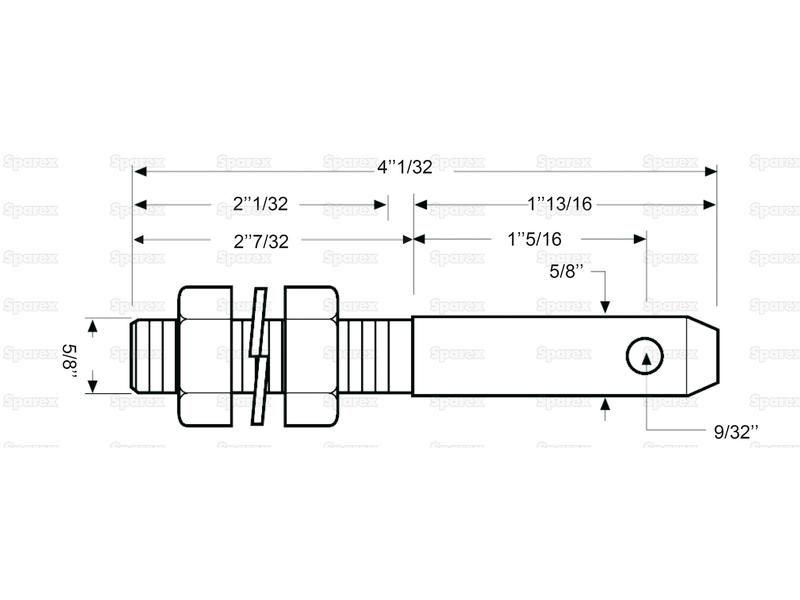

Technical Information
| A Ø ins | 19/32 |
| A Ø mm | 7 |
| A ins | 4 |
| A mm | 102 |
| B Ø ins | 5/8 |
| B Ø mm | 16 |
| B ins | 1 4/5 |
| B mm | 46 |
| Brand | Sparex |
| C ins | 1 1/3 |
| C mm | 33 |
| Category | 0 |
| D ins | 2 |
| D mm | 51 |
| E ins | 2 2/9 |
| E mm | 56 |
| F ins | 5/8 |
| F mm | 16 |
| G ins | 5/8 |
| G mm | 16 |
| Hole Ø ins | 9/32 |
| Hole Ø mm | 7 |
| Overall length ins | 4 1/32 |
| Overall length mm | 102 |
| Pin Ø ins | 5/8 |
| Pin Ø mm | 16 |
| Pin Type | Implement Attachment |
| Tariff Code | 8708999790 |
| Thread length mm | 57 |
| Thread size | 5/8'' |
| Thread type | UNF |
| Working length ins | 1 5/16 |
| Working length mm | 33 |
