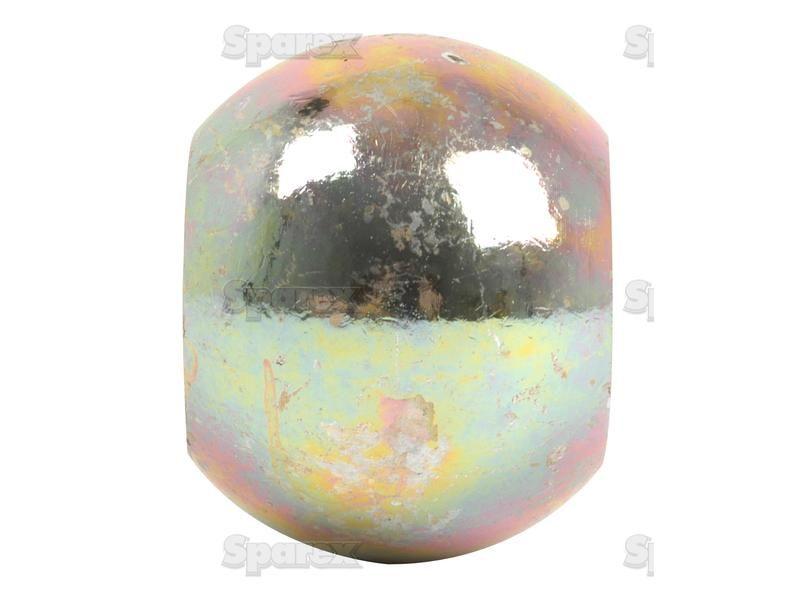

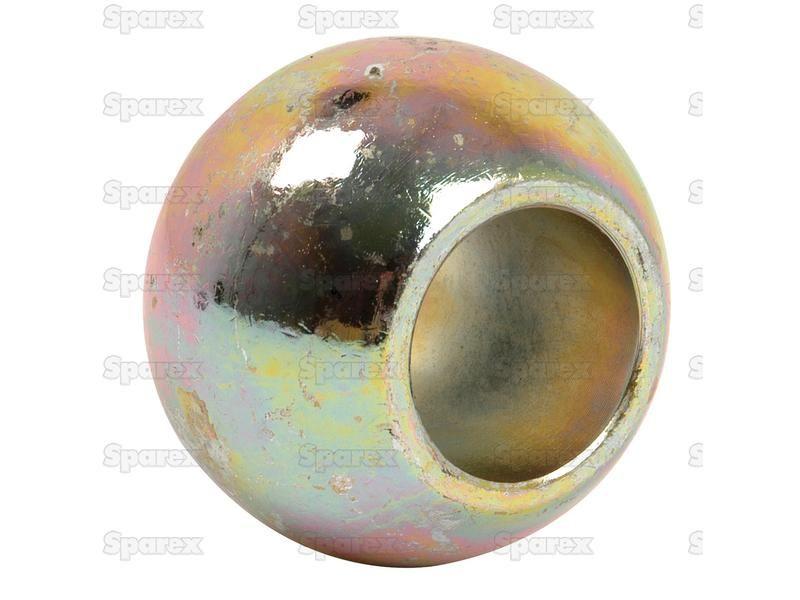

Lower Link Ball (Cat. 2/2) for Case IH VJ70 (VJ Series)
Part Number: S.57Categories: PTO (shaft), Linkage
Part Number: S.57
Grade: Replacement
Part Details

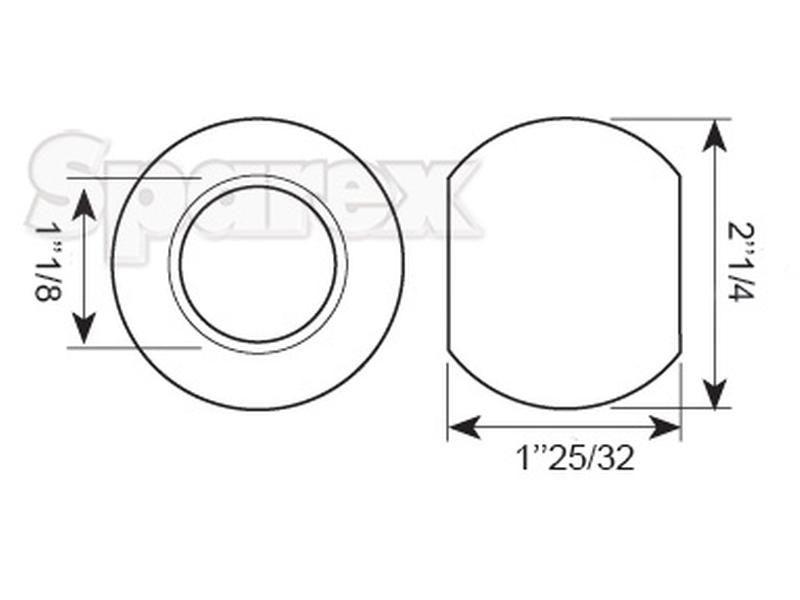

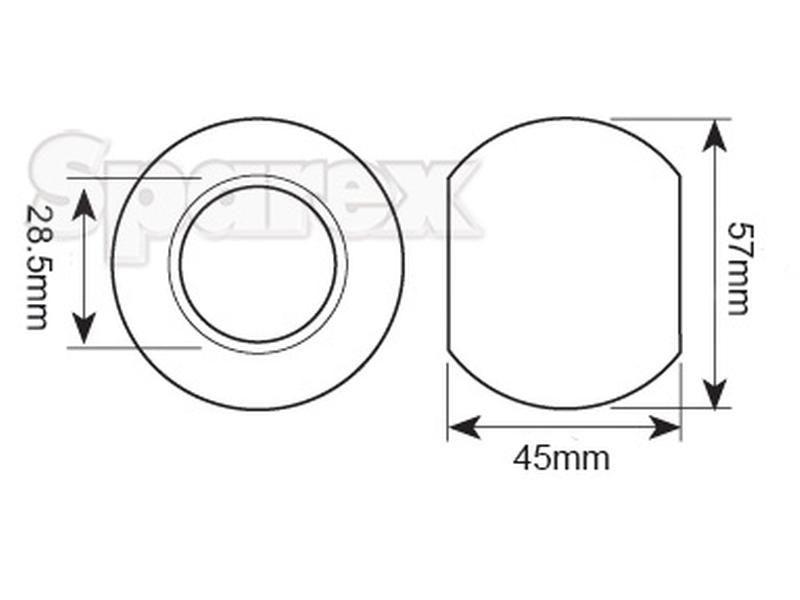

Lower Link Ball (Cat. 2/2) ID: 1 1/8'', OD: 2 1/4'', Width: 1 3/4''
Technical Information
| A Ø ins | 1 1/8 |
| A Ø mm | 28.6 |
| B Ø ins | 2 1/4 |
| B Ø mm | 57 |
| Brand | Sparex |
| C ins | 1 3/4 |
| C mm | 44.5 |
| Category | 2/2 |
| Distance Between Teeth mm | 14.4 |
| Gear Reducted | No |
| Height mm | 190 |
| Inner Ø ins | 1 1/8 |
| Inner Ø mm | 28.5 |
| Kilowatts | 2.8 |
| Length from Front Mounting Face to Rear mm | 224 |
| Length mm | 380 |
| Mounting Hole mm | 12.5 |
| Number of Teeth | 11 |
| Outer Ø ins | 2 1/4 |
| Outer Ø mm | 57 |
| Related Products | 351 |
| Tariff Code | 8708999790 |
| Volts | 12V |
| Width ins | 1 3/4 |
| Width mm | 220 |
Manufacturer Part Numbers
| Case IH |
|---|
| 3224240R1, 758949, 81837C1, 822441 |
| Fiat |
| 758949, 822441 |
| Ford New Holland |
| 00822441, 3224240R1, 758949, 81801634, 81818561, 822441, C0NNC877A, C5NN557A |
| Leyland |
| NT3627 |
