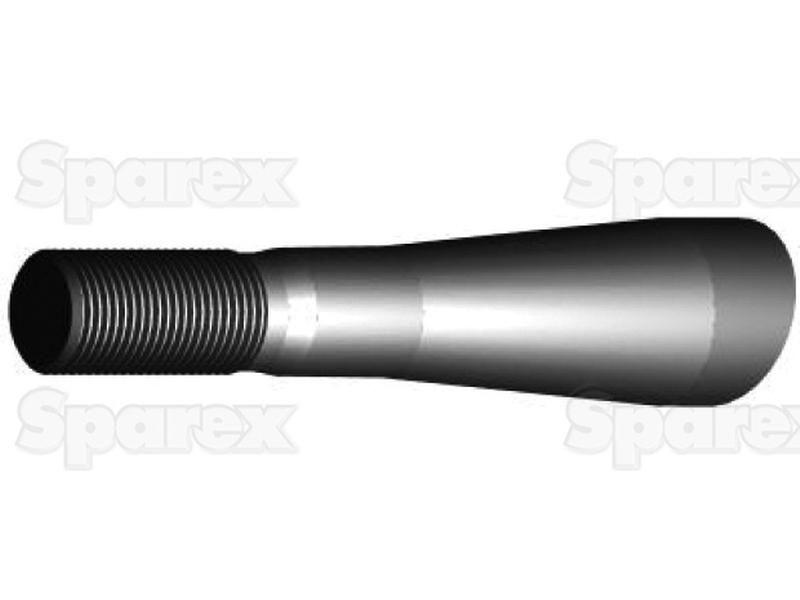

Loader Tine - Straight 1,000mm, Thread size: M24 x 1.5 (Square) Kverneland (221155M24, KK221155M24)
Part Number: S.128936Categories: Loader Tines
Part Number: S.128936
Grade: Replacement
Part Details

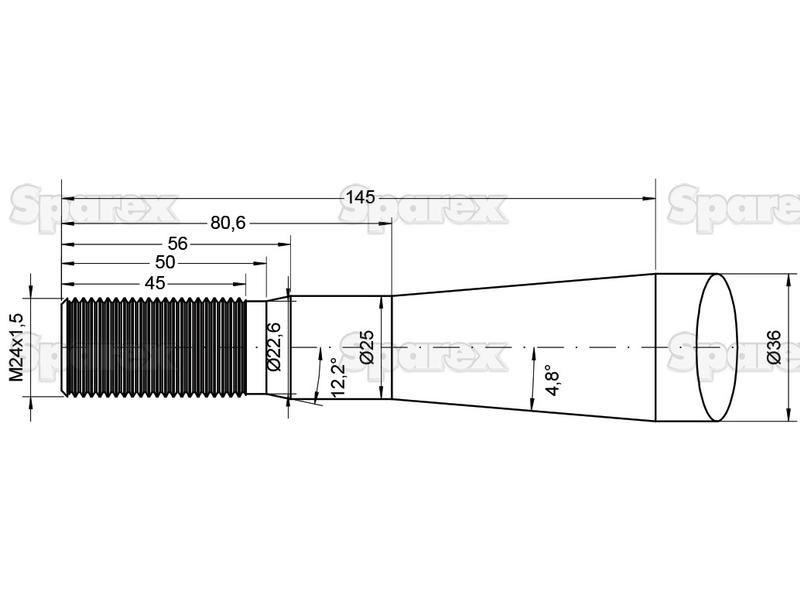

Loader Tine - Straight 1,000mm, Thread size: M24 x 1.5 (Square) Fitting: Conus 1 Max. Tine Ø36mm
Technical Information
| A mm | 1000 |
| B mm | 145 |
| Brand | SHW |
| Bush HD | S.1840 |
| Bush STD | S.14902 |
| Colour | Red |
| Conus Reference | K111 |
| Fitting | Conus 1 |
| Length Tine ins | 39 |
| Length Tine mm | 1,000 |
| Maximum Tine Ø mm | 36 |
| Maximum Torque Nm | 550 |
| Nut | S.77029 |
| Nut Included | Yes |
| OEM Primary Reference | KK221155M24 |
| Profile | Square |
| Related Products | 22829, 77029 |
| Tariff Code | 8431492000 |
| Thread size | M24 x 1.50 |
| Thread type | Metric |
| Type | Straight |
Manufacturer Part Numbers
| Kverneland |
|---|
| 221155M24, KK221155M24 |
