Linkage Drawbar (Cat. 2) No. holes: 9, 937mm
Part Number: S.3394Categories: PTO (shaft), Linkage
Part Number: S.3394
Grade: Replacement
Part Details

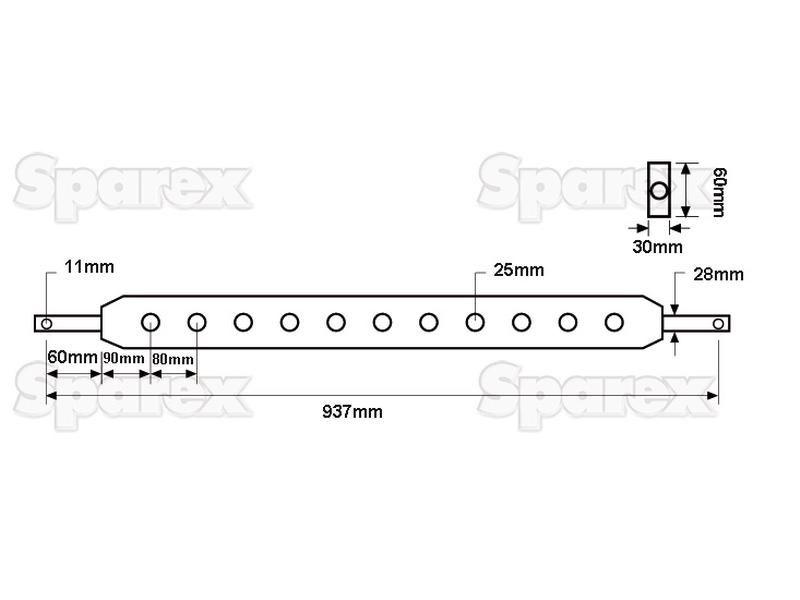

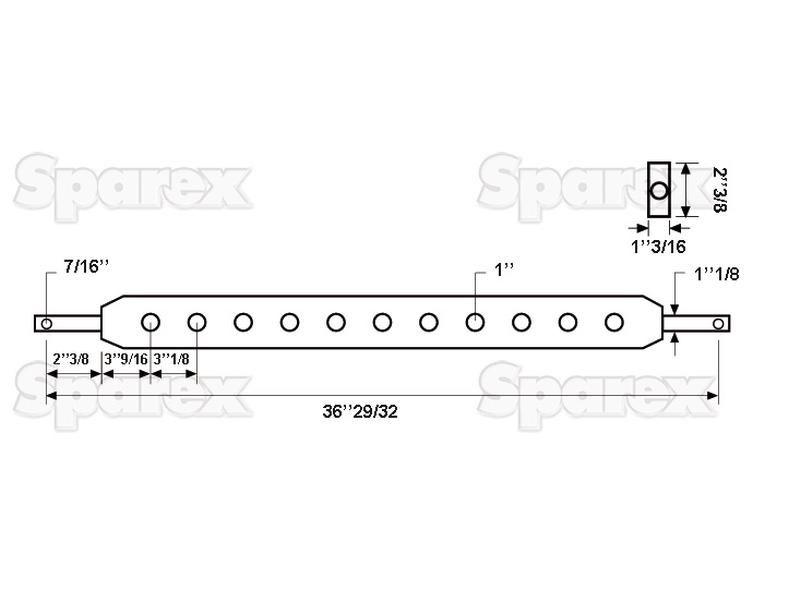

Linkage Drawbar (Cat. 2) No. holes: 9, 937mm Hole Ø: 25mm, (A)30mm x (B)60mm.
Technical Information
| A ins | 1 3/16 |
| A mm | 30 |
| B ins | 2 3/8 |
| B mm | 60 |
| Brand | Sparex |
| C ins | 37 7/8 |
| C mm | 937 |
| Category | 2 |
| D ins | 2 3/8 |
| D mm | 60 |
| E ins | 7 1/8 |
| E mm | 90 |
| f ins2 | 3 1/8 |
| F mm | 80 |
| G Ø ins | 1 1/8 |
| G Ø mm | 28.5 |
| G mm | 28 |
| Hole Ø ins | 1 |
| Hole Ø mm | 25 |
| Linch Pin Ø mm | 11 |
| Number of holes | 9 |
| Tariff Code | 8708999790 |
| Tensile Strength kgs cm2 | 8000 |
| Tensile Strength tons ins2 | 50 |
