LH Front Combination Light | Case/IH, Hella (3226119R1 3404745R91 2BE003182091)
Part Number: S.56130Categories: Electrical Accessories
Part Number: S.56130
Grade: Replacement
Part Details

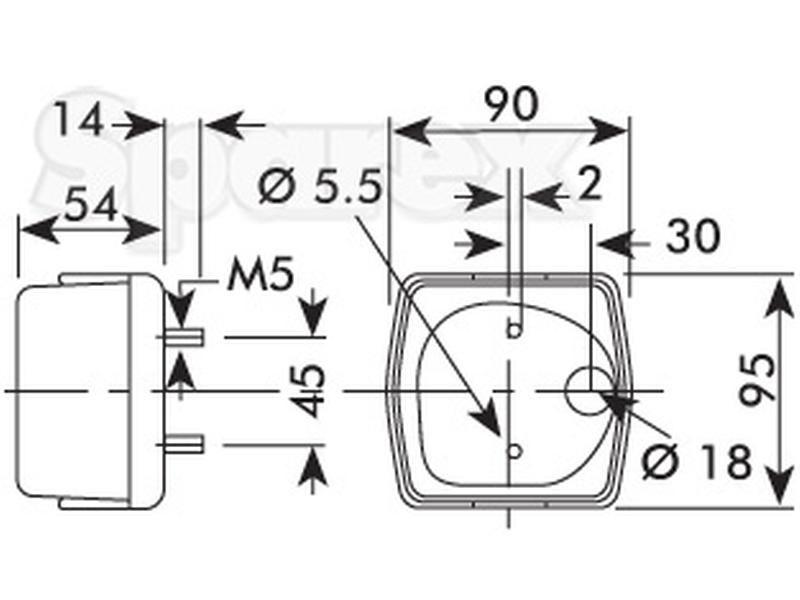

LH Front Combination Light | Case/IH, Hella (3226119R1 3404745R91 2BE003182091) Height: 80mmLength: 90mmDepth: 55mmVolts: 12/24VFunction: 2
Technical Information
| Brand | Hella |
| Bulb Supplied | No |
| Bulb type | BA15s |
| Depth mm | 55 |
| E Approved | Yes |
| Fitting | LH |
| Function | 2 |
| Height mm | 80 |
| Length mm | 90 |
| Light source | Halogen |
| Lux Value | 100 - 420 |
| Overall height mm | 80 |
| Overall length mm | 55 |
| Overall width mm | 90 |
| Related Products | 109959, 109961, 109996, 109997, 110027, 110063, 5075 |
| Replacement bulb | Indicator 12V/21W S.109961, Indicator 24V/21W S.109959, Side 12V/5W S.109952, Side 24V/5W S.109950 |
| Replacement lens | S.56159 |
| Tariff Code | 8539100000 |
| Volts | 12/24V |
| Watts | 21/5W |
Manufacturer Part Numbers
| Case IH |
|---|
| 3226119R1, 3404745R91, 82363C1 |
| HELLA LTD |
| 2BE003182091, 2BE003182-091 |
