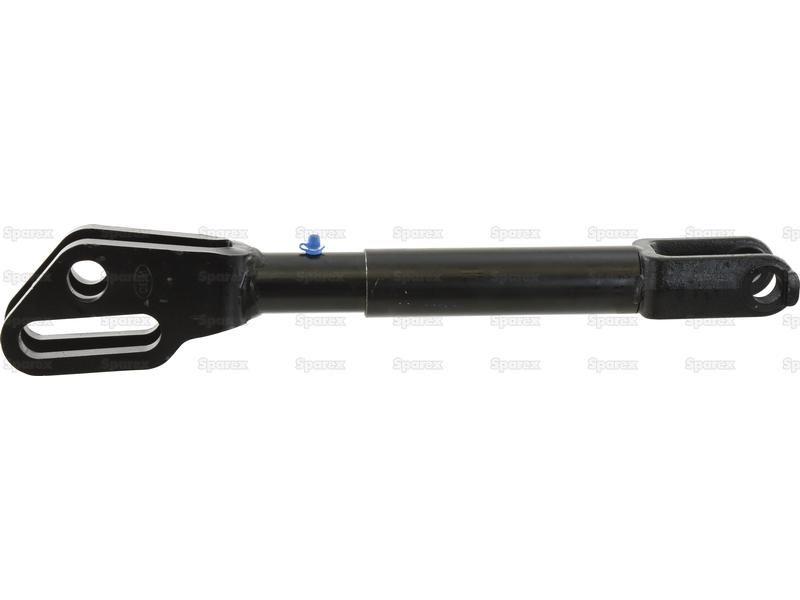

Levelling Box Assembly for Case IH, Fiat, Ford New Holland

Part Number: S.68194Categories: PTO (shaft), Linkage
Levelling Box Assembly for Case IH, Fiat, Ford New Holland
Levelling Box Assembly for Case IH, Fiat, Ford New Holland
Levelling Box Assembly for Case IH, Fiat, Ford New Holland

Part Number: S.68194

Grade: Replacement

Part Details

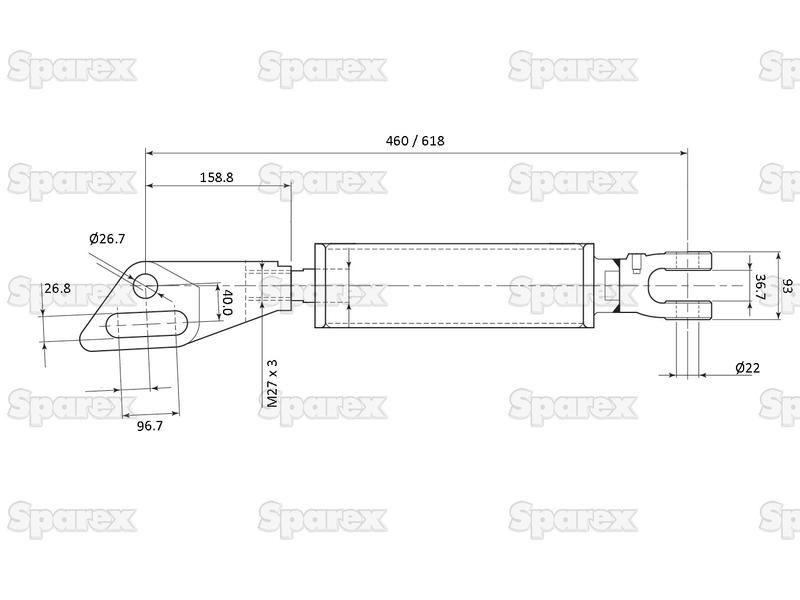

Levelling Box Assembly Min Adj.:457mmMax Adj.:613mmThread size: M27 x 3.00'' Metric

Technical Information

Adjustment Max. mm 613
Adjustment Min. mm 457
Brand Sparex
Fork Hole Ø ins 13/64 & 13/64x313/16
Fork Hole Ø mm 27 & 27x97
Hole Ø ins 55/64
Hole Ø mm 22
Maximum Length ins 249/64
Maximum Length mm 613
Minimum Length ins 1763/64
Minimum Length mm 457
Related Products 149576
Tariff Code 8708999790
Thread size M27 x 3.00
Thread type Metric
Width External mm 56.55
Width Internal mm 25.8

Models

Case IH
JX100U, JX1070U, JX1080U, JX1090U, JX1100U, JX55 (JX Series), JX60 (JX Series), JX65 (JX Series), JX70 (JX Series), JX70U, JX75 (JX Series), JX80 (JX Series), JX80U, JX85 (JX Series), JX90 (JX Series), JX90U, JX95 (JX Series), VJ70 (VJ Series), VJ80 (VJ Series)
Fiat
55-66 (66 Series), 60-66 (66 Series), 60-76 (76 Series), 62-86 (86 Series), 70-66 (66 Series), 70-76 (76 Series), 70-88 (88 Series), 70-90 (90 Series), 72-86 (86 Series), 72-93 (93 Series ), 72-94 (94 Series), 80-66 (66 Series), 80-76 (76 Series), 80-88 (88 Series), 80-90 (90 Series), 82-86 (86 Series), 82-86 (86 Series), 82-93 (93 Series ), 82-94 (94 Series), 85-90 (90 Series), 88-93 (93 Series ), 88-94 (94 Series), L60 (L Series), L65 (L Series), L75 (L Series), L85 (L Series), L95 (L Series)
Ford New Holland
4030 (30 Series), 4230 (30 Series), 4430 (30 Series), 4635 (35 Series ), 4835 (35 Series ), 5635 (35 Series ), 6635 (35 Series ), 7635 (35 Series ), T5030 (T5000 Series), T5040 (T5000 Series), T5050 (T5000 Series), T5060 (T5000 Series), T5070 (T5000 Series), TD55D, TD60 (TD Series), TD60D, TD65D, TD70 (TD Series), TD70D, TD75D, TD80 (TD Series), TD80D, TD85D, TD90 (TD Series), TD90D, TD95 (TD Series), TD95D, TD95D HC PLUS, TL100 (TL Series), TL65 (TL Series), TL70 (TL Series), TL80 (TL Series), TL90 (TL Series)

Manufacturer Part Numbers

Case IH
5119733, 5186941
Fiat
5119733, 5186941
Ford New Holland
5171291, 87352403
