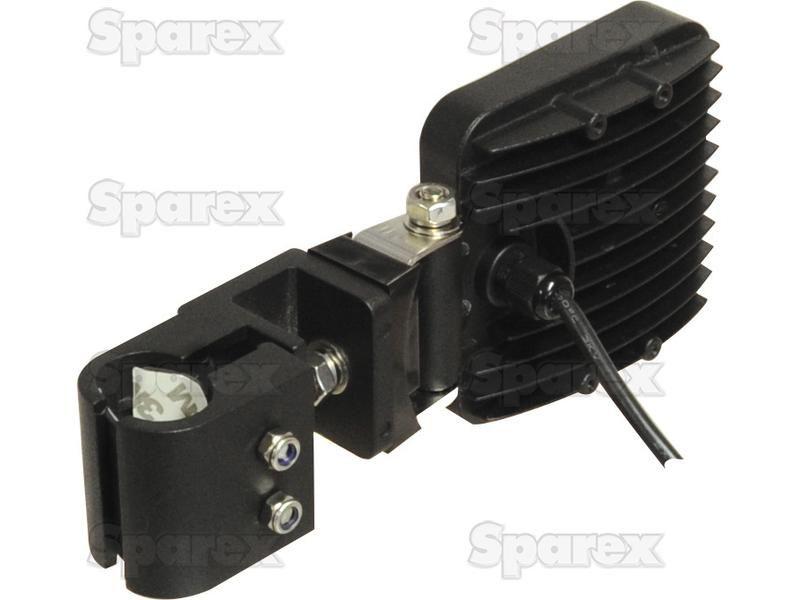

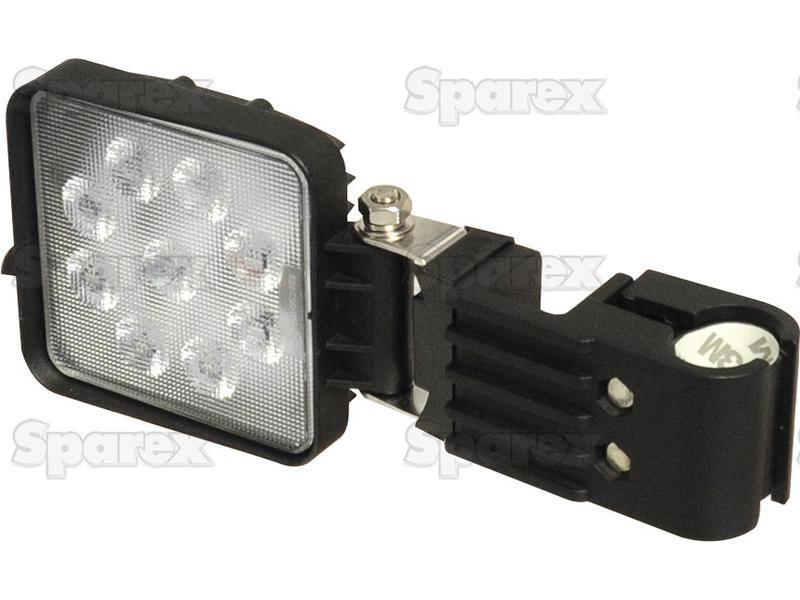

LED Work Light with Handrail Bracket, Interference: No, 2500 Lumens, 10-30V
Part Number: S.119899Categories: Electrical Accessories
Part Number: S.119899
Grade: Replacement
Part Details
LED Work Light with Handrail Bracket, Interference: No, 2500 Lumens, 10-30V ECE Rating: Reg 10CE Approved: YesIP Rating: IP67Connection Type: For Male or Female Insulated Terminal
Technical Information
| Beam Angle | 80° |
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | Yes |
| Connection Type | For Male or Female Insulated Terminal |
| Contains | 1pc. x S.112523 & 1pc. x S.112530 |
| ECE Rating | Reg 10 |
| Fixing | 1 Bolt |
| Function | Flood Beam |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP67 |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 1350 |
| Lumens Raw | 2500 |
| Lux Value | 3305 |
| Number of LEDs | 9 LEDs |
| Overall height mm | 128 |
| Overall length mm | 110 |
| Overall width mm | 41 |
| Power Consumption @ 12V | 1.42Amps |
| Power Consumption @ 24V | 0.71Amps |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Rectangular |
| Tariff Code | 8539100090 |
| Volts | 10-30V |
| Watts | 17W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 55°C |
