LED Work Light with Handrail Bracket, Interference: Class 3, 2400 Lumens, 10-30V

Part Number: S.112529Categories: Electrical Accessories
LED Work Light with Handrail Bracket, Interference: Class 3, 2400 Lumens, 10-30V
LED Work Light with Handrail Bracket, Interference: Class 3, 2400 Lumens, 10-30V
LED Work Light with Handrail Bracket, Interference: Class 3, 2400 Lumens, 10-30V
LED Work Light with Handrail Bracket, Interference: Class 3, 2400 Lumens, 10-30V
LED Work Light with Handrail Bracket, Interference: Class 3, 2400 Lumens, 10-30V
LED Work Light with Handrail Bracket, Interference: Class 3, 2400 Lumens, 10-30V
LED Work Light with Handrail Bracket, Interference: Class 3, 2400 Lumens, 10-30V

Part Number: S.112529

Grade: Replacement

Part Details

LED Work Light with Handrail Bracket, Interference: Class 3, 2400 Lumens, 10-30V ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: Male & Female Terminal

Technical Information

Beam Angle 140°
Brand Sparex
Cable length mm 1000
CE Approved Yes
Connection Type Male & Female Terminal
ECE Rating Reg 10
Fixing Bracket
Function Flood Beam
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP6K9K
Lens Colour Clear
Lens Material Polycarbonate
Light source LED
Lumens Effective 1760
Lumens Raw 2400

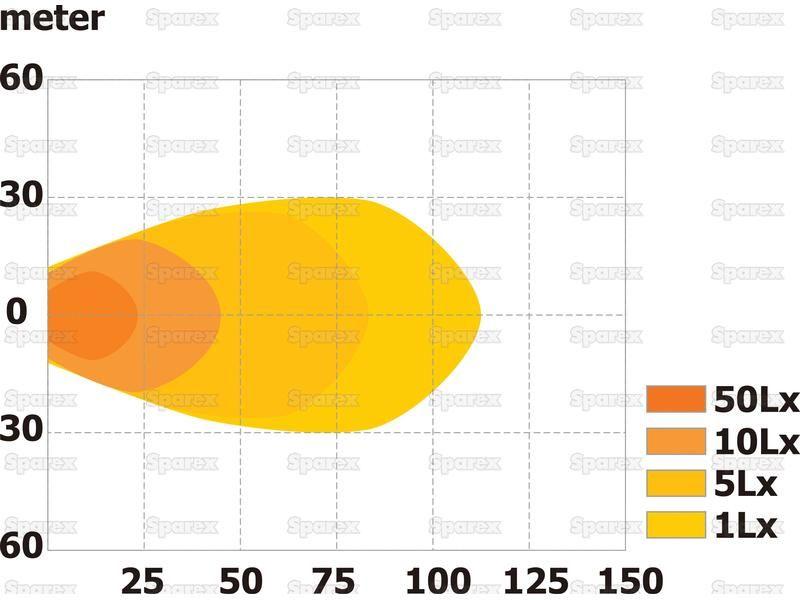

Lux Value 7668
Notes Dimensions without bracket
Number of LEDs 8 LEDs

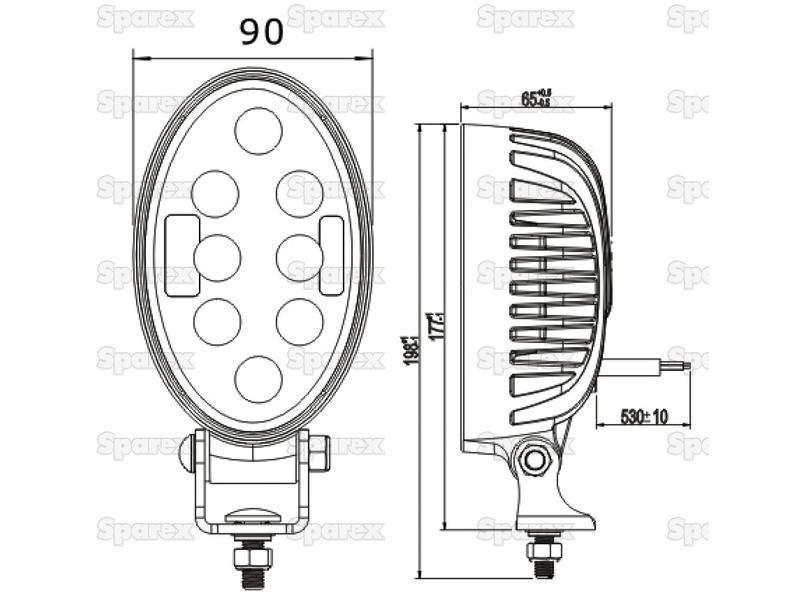

Overall height mm 90
Overall length mm 177
Overall width mm 65
Power Consumption @ 12V 1.67Amps
Power Consumption @ 24V 0.83Amps
Related Products 112524, 112530, 28542, 115244
RoHS Approved Yes
SAE Approved No
Shape Oval
Tariff Code 8539500000
Volts 10-30V
Watts 24W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -40°C to 50°C
