LED Work Light with built in Camera, Wired, 12V
Part Number: S.162713Categories: Electrical Accessories
Part Number: S.162713
Grade: Replacement
Part Details
LED Work Light with built in Camera, Wired, 12V An innovative and convenient way of illuminating and visualising the area around your tractor and implement. A high-power LED flood beam work light with a built-in high-resolution CMOS colour camera to provide clear visibility in the darkest environments and hard to see applications.Fully compatible as an additional camera with S.115175, S.115176 & S.23053 Wired camera systems.See Specifications for product details.
Technical Information
| Audio | No |
| Beam Angle | 40° |
| Brand | Sparex |
| Cable length mm | 2300 |
| CE Approved | Yes |
| Colour encoding | PAL |
| Connectivity | Analogue (CVBS) |
| Contains | 1/3 SHARP CCD 600TV Camera |
| ECE Rating | Reg 10 |
| Fits SD card size | No |
| Fixing | Bolt on |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP69K |
| Lens Colour | Clear |
| Light source | LED |
| Lumens Effective | 1080 |
| Lumens Raw | 1800 |
| Lux Value | 7000 |
| Mirror function | Yes |
| Night vision | Yes |
| Number of LEDs | 6 LEDs |

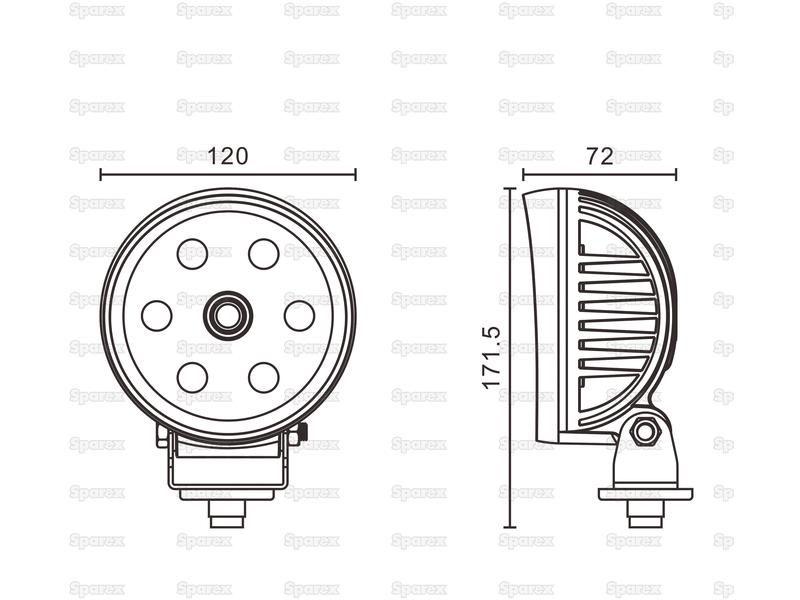

| Overall height mm | 171.5 |
| Overall length mm | 120 |
| Overall width mm | 72 |
| Power Consumption @ 12V | 1.5Amps |
| Power Consumption @ 24V | 0.75Amps |
| Related Products | 23053, 115175, 115176 |
| Resolution | 752 (RGB) x 582 |
| RH or LH Fitment | RH & LH |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Round |
| Tariff Code | 8525809900 |
| Type | Wired |
| Viewing Angle | 110° |
| Volts | 12V |
| Watts | 18W |
| With Noise Suppression | No |
| Working Temperature Degrees Centregrade | -20°C to 60°C |
