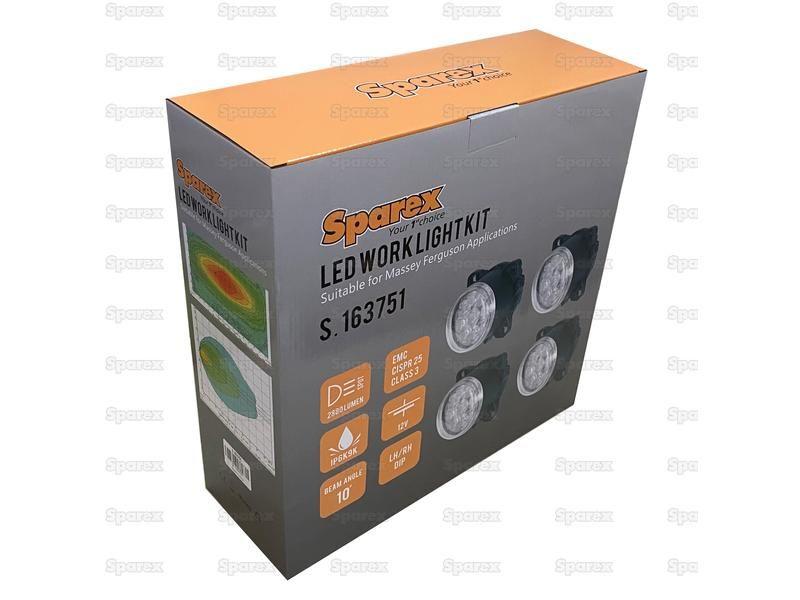

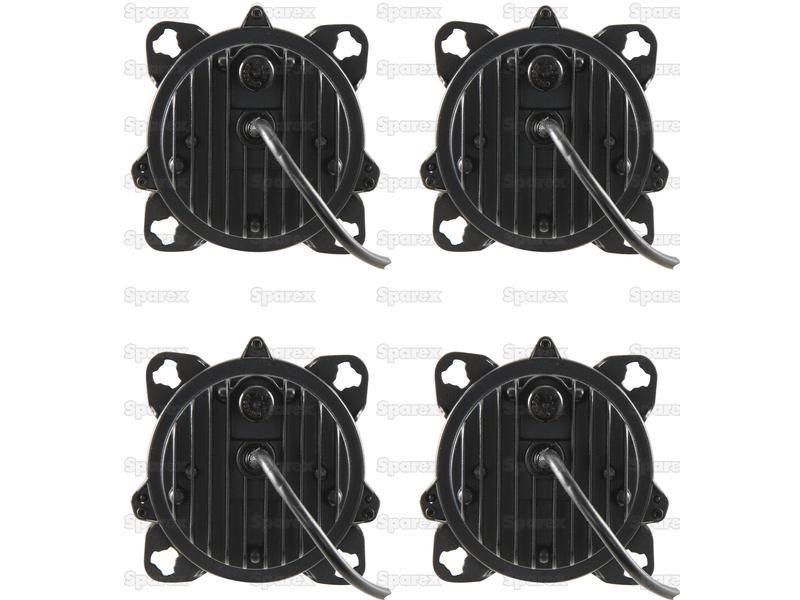

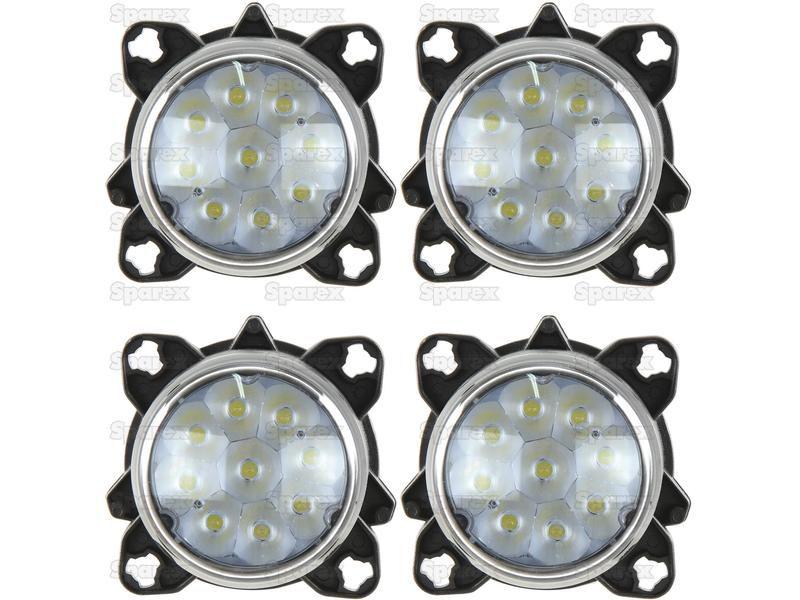

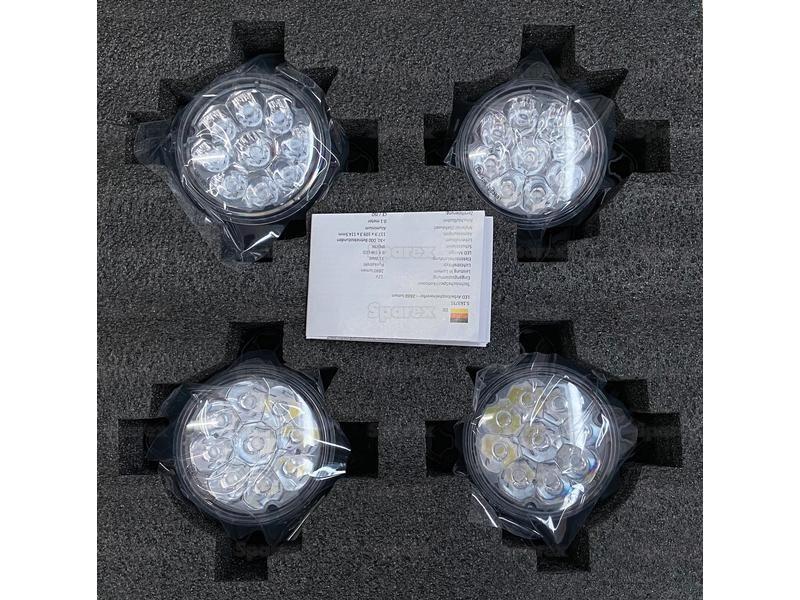

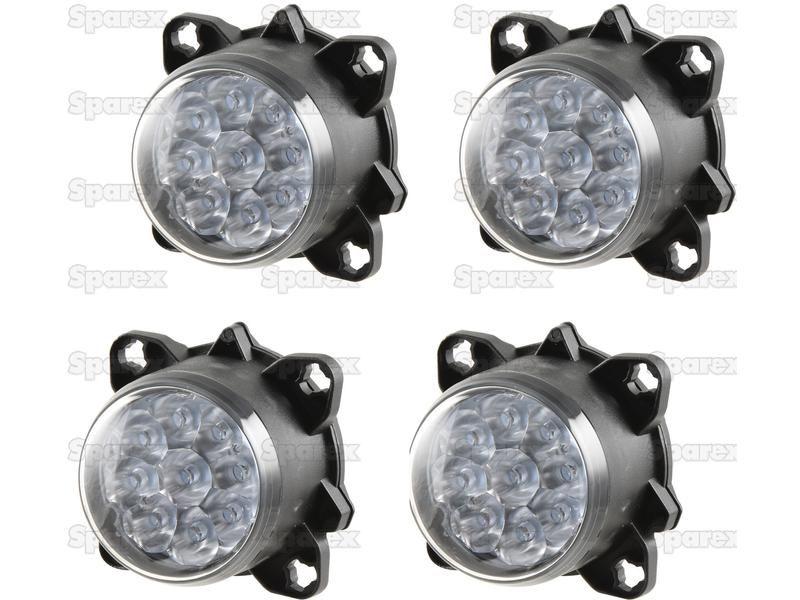

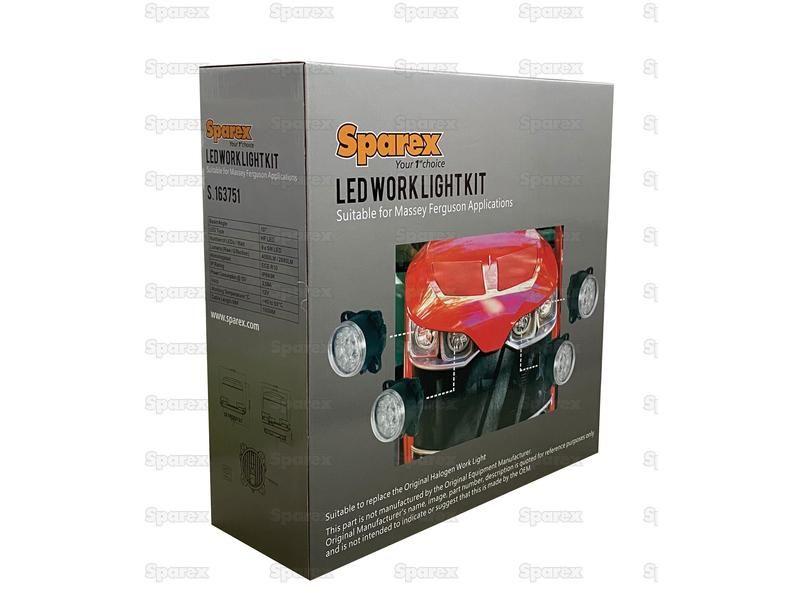

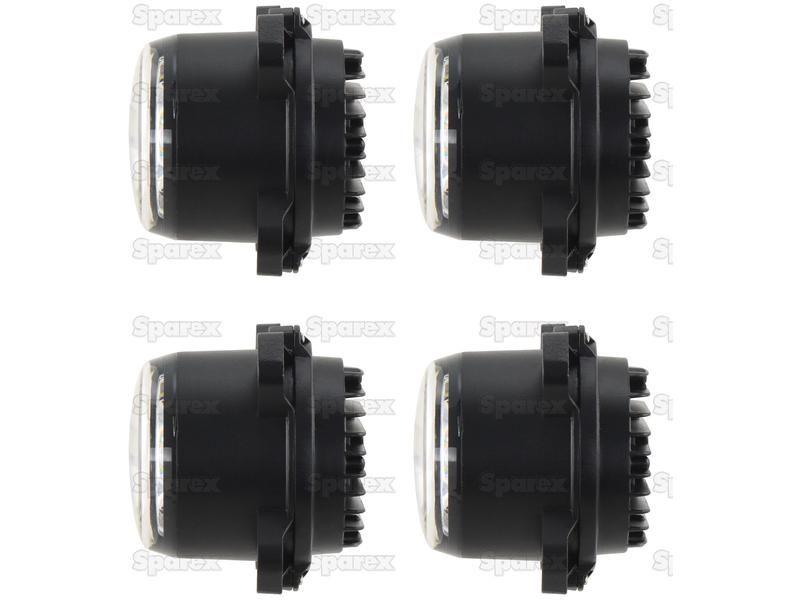

LED Work Light Kit, Interference: Class 3, RH & LH, 4050 Lumens for Massey Ferguson

Part Number: S.163751Categories: Electrical Accessories
LED Work Light Kit, Interference: Class 3, RH & LH, 4050 Lumens for Massey Ferguson
LED Work Light Kit, Interference: Class 3, RH & LH, 4050 Lumens for Massey Ferguson
LED Work Light Kit, Interference: Class 3, RH & LH, 4050 Lumens for Massey Ferguson
LED Work Light Kit, Interference: Class 3, RH & LH, 4050 Lumens for Massey Ferguson
LED Work Light Kit, Interference: Class 3, RH & LH, 4050 Lumens for Massey Ferguson
LED Work Light Kit, Interference: Class 3, RH & LH, 4050 Lumens for Massey Ferguson
LED Work Light Kit, Interference: Class 3, RH & LH, 4050 Lumens for Massey Ferguson

Part Number: S.163751

Grade: Replacement

Part Details

LED Work Light Kit, Interference: Class 3, RH & LH, 4050 Lumens ECE Rating: Reg10 - E4 10R05/01*3681*00CE Approved: YesIP Rating: IP6K9KConnection Type: H9 Connector

Technical Information

Ø mm 94.76
Beam Angle 10°
Brand Sparex
Cable length mm 100
CE Approved Yes
Connection Type H9 Connector
Dip Straight
ECE Rating Reg10 - E4 10R05/01*3681*00
Fixing Bolt on
Function 1 Function
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP6K9K
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 2880
Lumens Raw 4050
Lux Value 95000cd
Number of LEDs 9 LEDs
Overall height mm 109.26
Overall length mm 117.9
Overall width mm 114.5
Power Consumption @ 12V 2.58Amps
Related Products 151851, 151855, 151852, 163752, 163905
RH or LH Fitment RH & LH
RoHS Approved Yes
SAE Approved No
Shape Round
Tariff Code 8539500000
Volts 10-30V
Watts 31W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -40°C to 50°C

Models

Massey Ferguson
5608, 5609, 5610, 5611, 5612, 5613, 5709 S DYNA 4, 5709 S DYNA 6, 5709SL, 5710 S DYNA 4, 5710 S DYNA 6, 5710SL, 5711 S DYNA 4, 5711 S DYNA 6, 5711SL, 5712 S DYNA 4, 5712 S DYNA 6, 5712SL, 5713 S DYNA 4, 5713 S DYNA 6, 5713SL, 6612 DYNA 4, 6613 DYNA 4, 6613 DYNA 6, 6614 DYNA 6, 6615 DYNA 4, 6615 DYNA 6, 6615 DYNA VT, 6616 DYNA 6, 6616 DYNA VT, 6712 S DYNA 4, 6713 S DYNA 4, 6713 S DYNA 6, 6713 S DYNA VT, 6714 S DYNA 4, 6714 S DYNA 6, 6714 S DYNA VT, 6715 S DYNA 6, 6715 S DYNA VT, 6716 S DYNA 6, 6716 S DYNA VT, 6718 S DYNA 6, 6718 S DYNA VT, 7614 DYNA 4, 7615 DYNA 4, 7615 DYNA 6, 7615 DYNA VT/DYNA STEP, 7616 DYNA 6, 7616 DYNA VT/DYNA STEP, 7618 DYNA 6, 7618 DYNA VT/DYNA STEP, 7619 DYNA 6, 7619 DYNA VT, 7620 DYNA 6, 7620 DYNA VT, 7622 DYNA 6, 7622 DYNA VT, 7624 DYNA 6, 7624 DYNA VT, 7626 DYNA 6, 7714 DYNA 4, 7714 S DYNA 4, 7715 DYNA 4, 7715 DYNA 6, 7715 DYNA VT, 7715 S DYNA 4, 7715 S DYNA 6, 7715 S DYNA VT, 7716 DYNA 6, 7716 DYNA VT, 7716 S DYNA 6, 7716 S DYNA VT, 7718 DYNA 6, 7718 DYNA VT, 7718 S DYNA 6, 7718 S DYNA VT, 7719 DYNA 6, 7719 DYNA VT, 7719 S DYNA VT, 7720 DYNA VT, 7720 S DYNA VT, 7722 DYNA VT, 7722 S DYNA VT, 7724 DYNA VT, 7724 S DYNA VT, 7726 DYNA VT, 7726 S DYNA VT, 8650, 8660, 8670, 8680, 8690 (8600 Series), 8727, 8727 S, 8730, 8730 S, 8732, 8732 S, 8737, 8737 S, 8740, 8740 S
