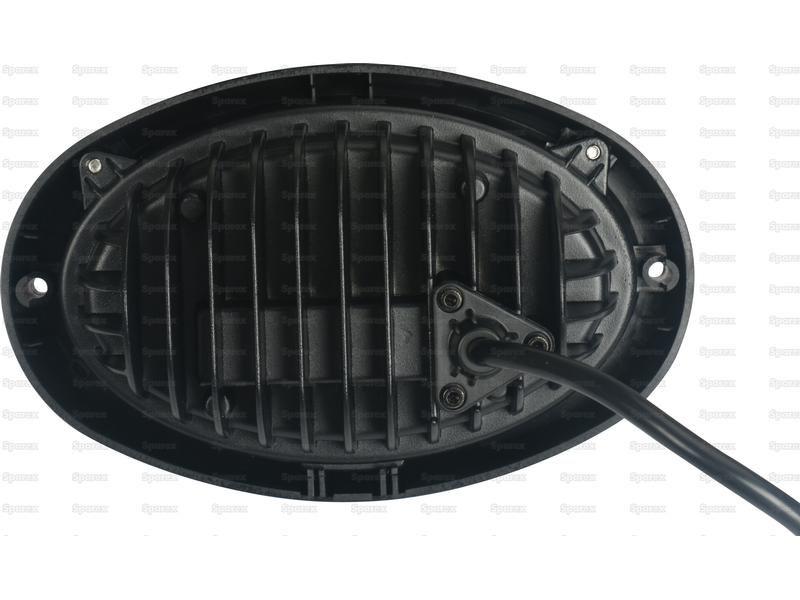

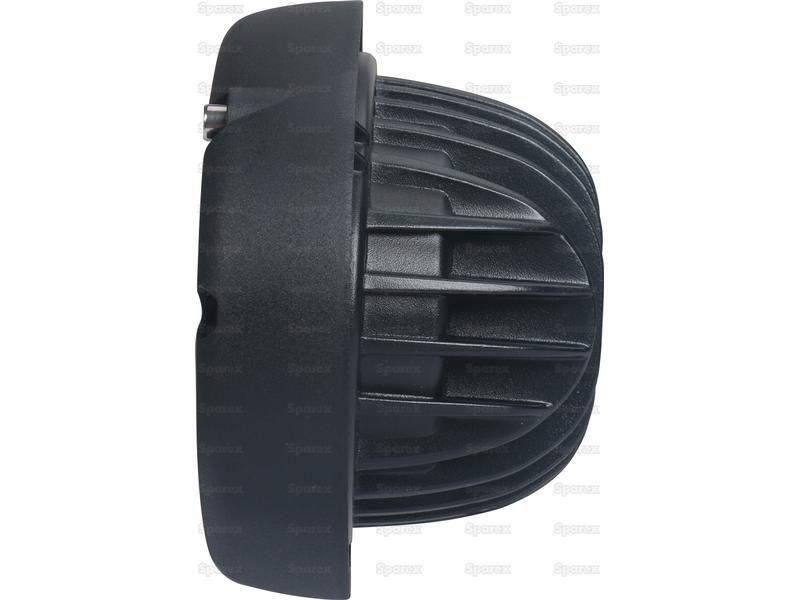

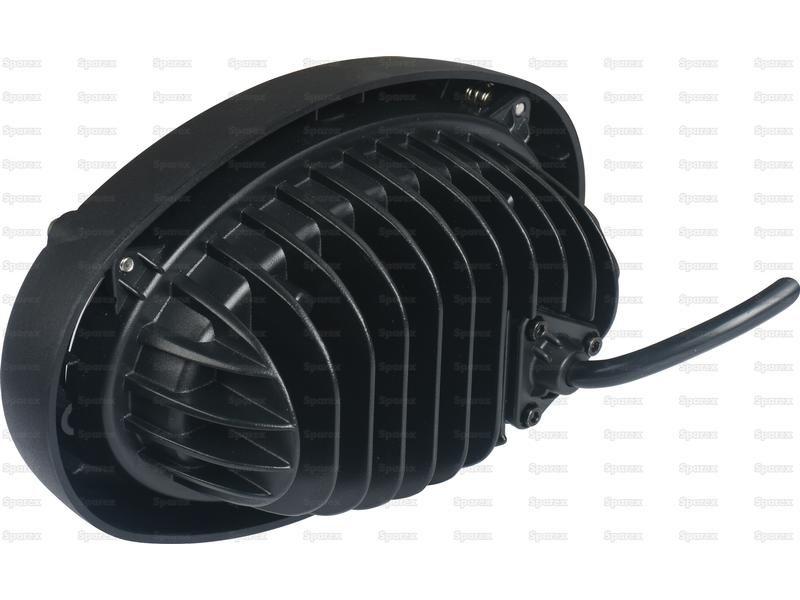

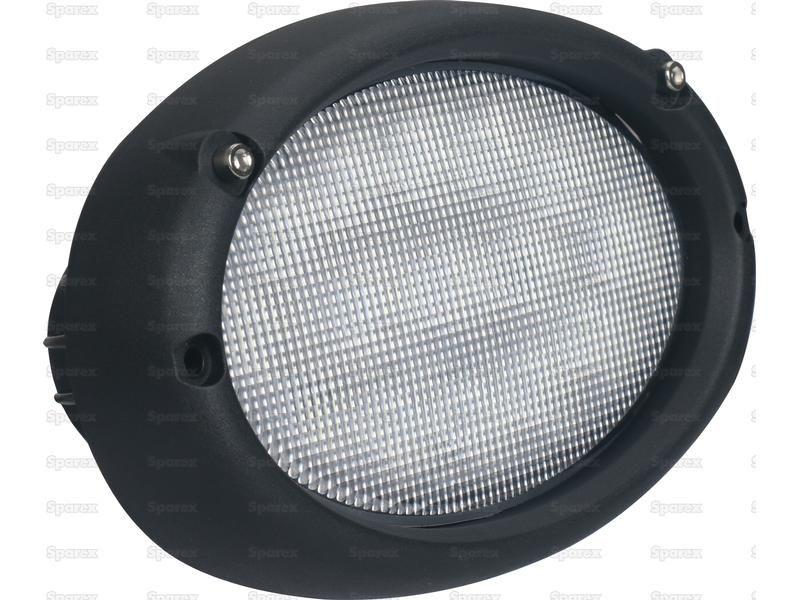

LED Work Light, Interference: Class 5, 4500 Lumens, 10-30V () for Massey Ferguson
Part Number: S.151850Categories: Electrical Accessories
Part Number: S.151850
Grade: Replacement
Part Details
LED Work Light, Interference: Class 5, 4500 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: 2 pcs. DJ70215-6.3-11 Connector
Technical Information
| Beam Angle | 140° |
| Beam Type | Flood Beam |
| Brand | Sparex |
| Cable length mm | 400 |
| CE Approved | Yes |
| Connection Type | 2 pcs. DJ70215-6.3-11 Connector |
| ECE Rating | Reg 10 |
| Fixing | 2 Bolts |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 5 |
| IP Rating | IP6K9K |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 2200 |
| Lumens Raw | 4500 |
| Lux Value | 6525 |
| Number of LEDs | 15 LEDs |
| Overall height mm | 106.2 |
| Overall length mm | 166 |
| Overall width mm | 87.6 |
| Power Consumption @ 12V | 2.5Amps |
| Power Consumption @ 24V | 1.25Amps |
| Related Products | 163618, 163905, 163906 |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Oval |
| Tariff Code | 8539100090 |
| Volts | 10-30V |
| Watts | 45W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 50°C |
Models
| Massey Ferguson |
|---|
| 5425 (5400 Series), 5435 (5400 Series), 5435 (5400 Series), 5445 (5400 Series), 5455 (5400 Series), 5460 (5400 Series), 5465 (5400 Series), 6445 (6400 Series), 6455 (6400 Series), 6460 (6400 Series), 6465 (6400 Series), 6470 (6400 Series), 6475 (6400 Series), 6480 (6400 Series), 6485 (6400 Series), 6490 (6400 Series), 6495 (6400 Series), 6497 (6400 Series), 6499 (6400 Series), 7465 (7400 Series), 7480 (7400 Series), 7485 (7400 Series), 7485 DYNA VT/DYNA STEP, 7490 (7400 Series), 8450 (8400 Series), 8460 (8400 Series), 8470 (8400 Series), 8480 (8400 Series) |
