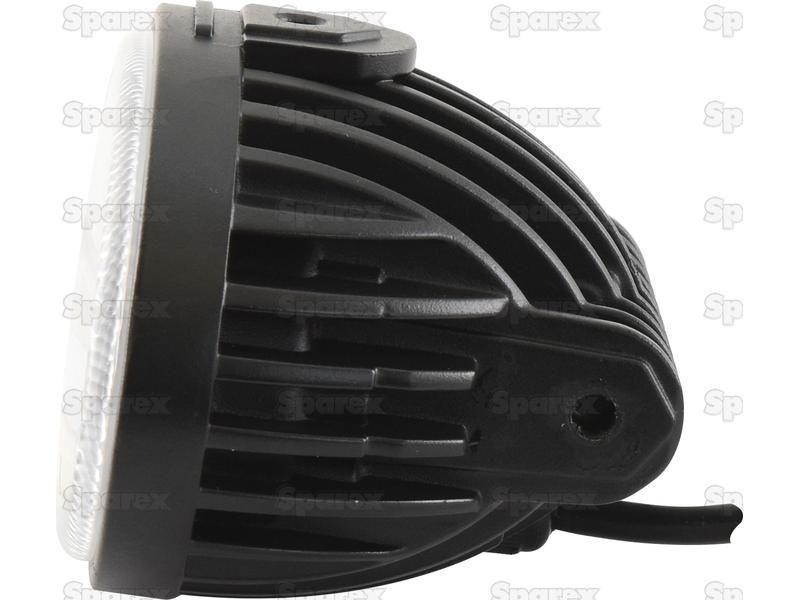

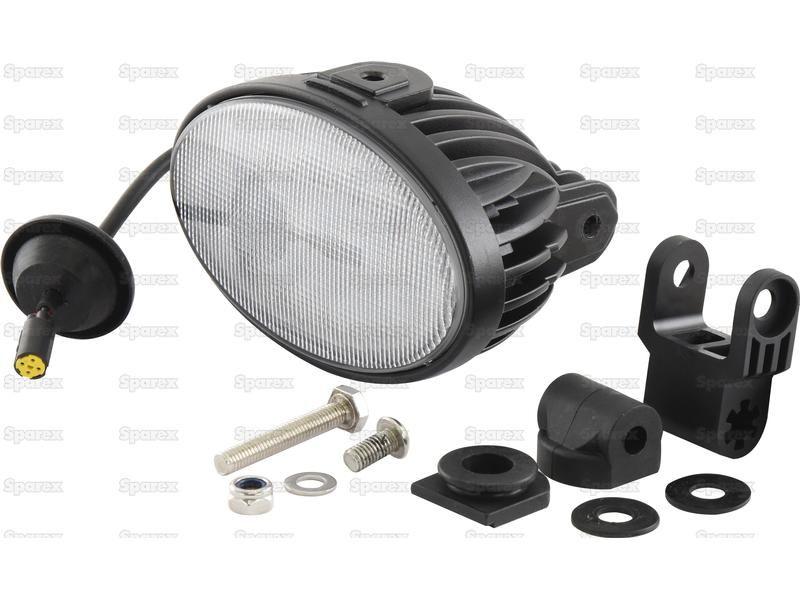

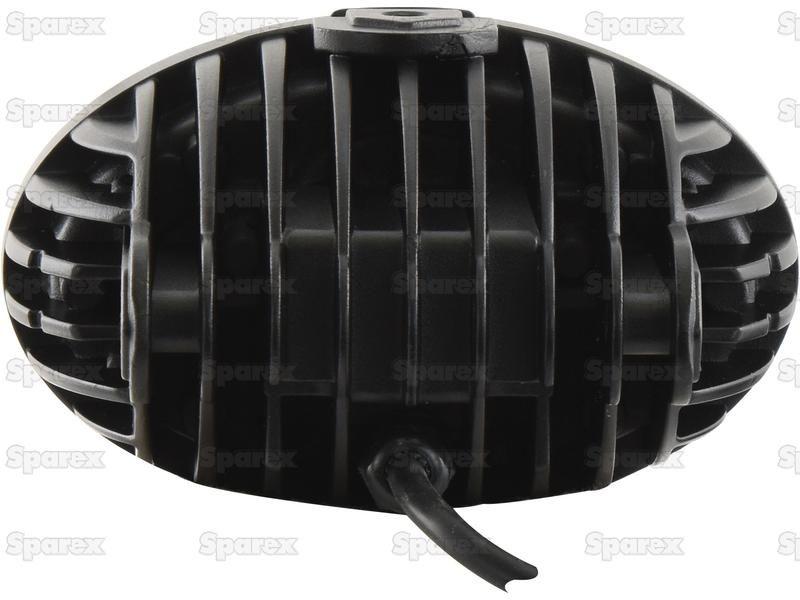

LED Work Light, Interference: Class 5, 4500 Lumens, 10-30V () for Ford New Holland

Part Number: S.163871Categories: Electrical Accessories
LED Work Light, Interference: Class 5, 4500 Lumens, 10-30V () for Ford New Holland
LED Work Light, Interference: Class 5, 4500 Lumens, 10-30V () for Ford New Holland
LED Work Light, Interference: Class 5, 4500 Lumens, 10-30V () for Ford New Holland
LED Work Light, Interference: Class 5, 4500 Lumens, 10-30V () for Ford New Holland

Part Number: S.163871

Grade: Replacement

Part Details

LED Work Light, Interference: Class 5, 4500 Lumens, 10-30V () ECE Rating: Reg10 - E4 10R05/01*4539*00CE Approved: YesIP Rating: IP6K9KConnection Type: ITT Connector

Technical Information

Beam Angle 140°
Beam Type Flood Beam
Brand Sparex
Cable length mm 400
CE Approved Yes
Connection Type ITT Connector
ECE Rating Reg10 - E4 10R05/01*4539*00
Fixing Bracket
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 5
IP Rating IP6K9K
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 2720
Lumens Raw 4500
Lux Value 7494.4cd
Number of LEDs 15 LEDs
Overall height mm 92
Overall length mm 143
Overall width mm 95
Power Consumption @ 12V 2.5Amps
Power Consumption @ 24V 1.25Amps
Related Products 152142, 163863, 163867, 163877, 163880
RoHS Approved Yes
SAE Approved No
Shape Oval
Tariff Code 8539100090
Volts 10-30V
Watts 45W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -40°C

Models

Ford New Holland
T6.140 - AUTOCOMMAND, T6.150 - AUTOCOMMAND, T6.160 - AUTOCOMMAND, T6010 - DELTA, T6010 - PLUS, T6020 - DELTA, T6020 - ELITE, T6020 - PLUS, T6030 - DELTA, T6030 - ELITE, T6030 - PLUS, T6030 - POWER COMMAND, T6030 - RANGE COMMAND, T6040 - ELITE, T6050 - DELTA, T6050 - ELITE, T6050 - PLUS, T6050 - POWER COMMAND, T6050 - RANGE COMMAND, T6060 - ELITE, T6070 - POWER COMMAND, T6070 - RANGE COMMAND, T6080 - POWER COMMAND, T6080 - RANGE COMMAND, T6090 - POWER COMMAND, T6090 - RANGE COMMAND, T7.140 - MECH BRAZILIAN, T7.150 - MECH BRAZILIAN, T7.165 - MECH BRAZILIAN, T7.170 - AUTOCOMMAND, T7.170 - POWER COMMAND, T7.170 - RANGE COMMAND, T7.175, T7.175 - AUTOCOMMAND, T7.175 - SPS BRAZILIAN, T7.180 - MECH BRAZILIAN, T7.185 - AUTOCOMMAND, T7.185 - POWER COMMAND, T7.185 - RANGE COMMAND, T7.190, T7.190 - AUTOCOMMAND, T7.190 - SPS BRAZILIAN, T7.195 - SPS BRAZILIAN, T7.200 - AUTOCOMMAND, T7.200 - POWER COMMAND, T7.200 - RANGE COMMAND, T7.205 - SPS BRAZILIAN, T7.210 - AUTOCOMMAND, T7.210 - POWER COMMAND, T7.210 - RANGE COMMAND, T7.210 (T7 Series), T7.220 - AUTOCOMMAND, T7.220 - POWER COMMAND, T7.225 - AUTOCOMMAND, T7.230, T7.230 - AUTOCOMMAND, T7.235 - AUTOCOMMAND, T7.235 - POWER COMMAND, T7.245, T7.245 - AUTOCOMMAND, T7.250 - AUTOCOMMAND, T7.250 - POWER COMMAND, T7.260 - AUTOCOMMAND, T7.260 - POWER COMMAND, T7.260 (T7 Series), T7.270 - AUTOCOMMAND, T7030 - AUTOCOMMAND, T7030 - POWER COMMAND, T7030 (T7000 Series), T7040 - AUTOCOMMAND, T7040 - POWER COMMAND, T7040 (T7000 Series), T7050 - AUTOCOMMAND, T7050 - POWER COMMAND, T7050 (T7000 Series), T7060 - AUTOCOMMAND, T7060 - POWER COMMAND, T7060 (T7000 Series), T7070 - AUTOCOMMAND
