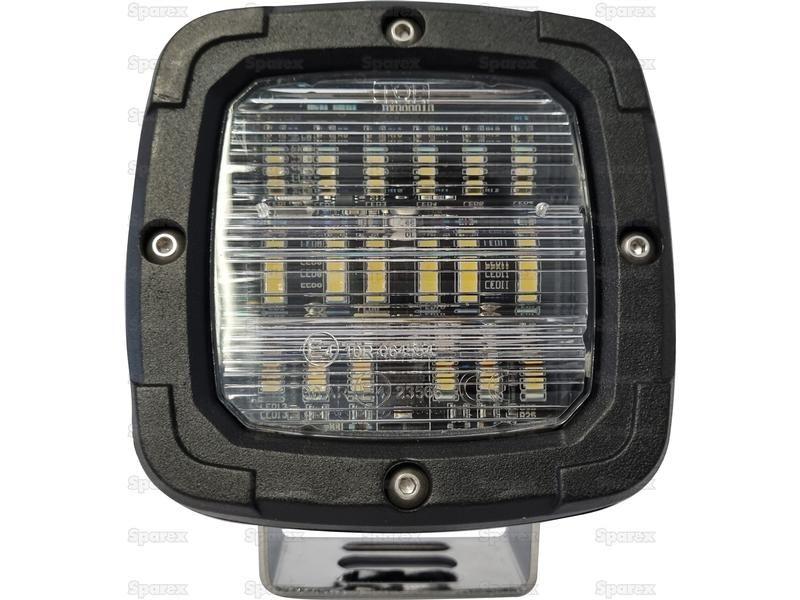

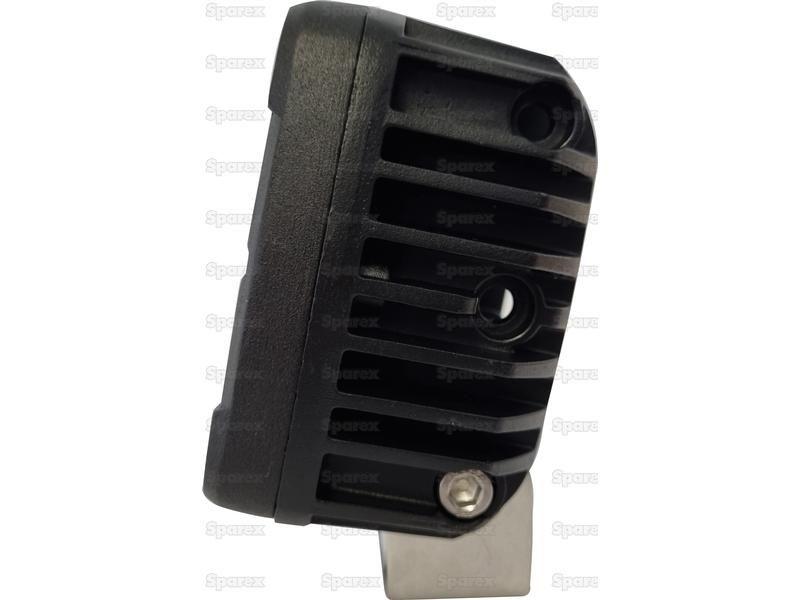

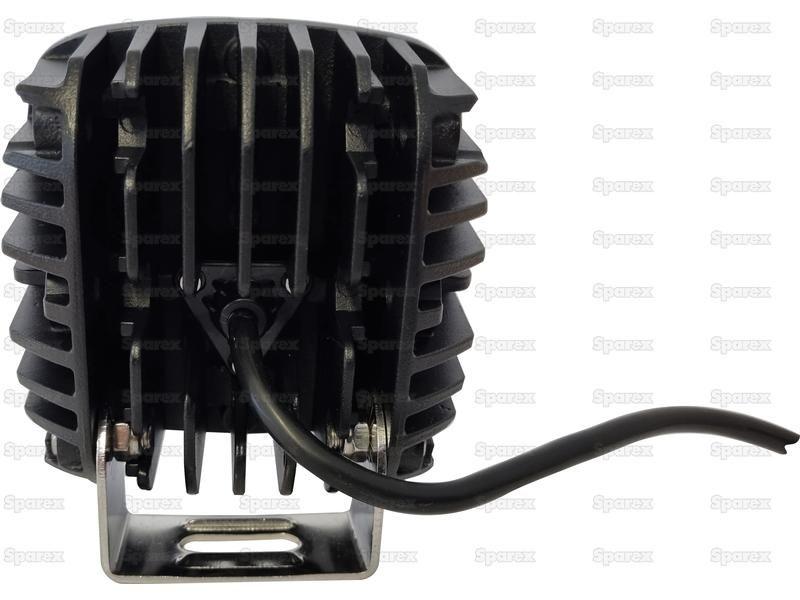

LED Work Light, Interference: Class 5, 2340 Lumens, 10-30V ()
Part Number: S.164377Categories: Electrical Accessories
Part Number: S.164377
Grade: Replacement
Part Details
LED Work Light, Interference: Class 5, 2340 Lumens, 10-30V () ECE Rating: Reg10 - E4 10R06/00*4554*00CE Approved: YesIP Rating: IP6K9KConnection Type: DT Connector
Technical Information
| Beam Angle | 140° |
| Beam Type | Flood Beam |
| Brand | Sparex |
| Cable length mm | 400 |
| CE Approved | Yes |
| Connection Type | DT Connector |
| ECE Rating | Reg10 - E4 10R06/00*4554*00 |
| Fixing | Bracket |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 5 |
| IP Rating | IP6K9K |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 1318 |
| Lumens Raw | 2340 |
| Lux Value | 2000cd |
| Number of LEDs | 18 LEDs |
| Overall height mm | 109 |
| Overall length mm | 98.5 |
| Overall width mm | 59 |
| Power Consumption @ 12V | 1.25Amps |
| Power Consumption @ 24V | 0.63Amps |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Square |
| Tariff Code | 8539500000 |
| Volts | 10-30V |
| Watts | 18W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C |
