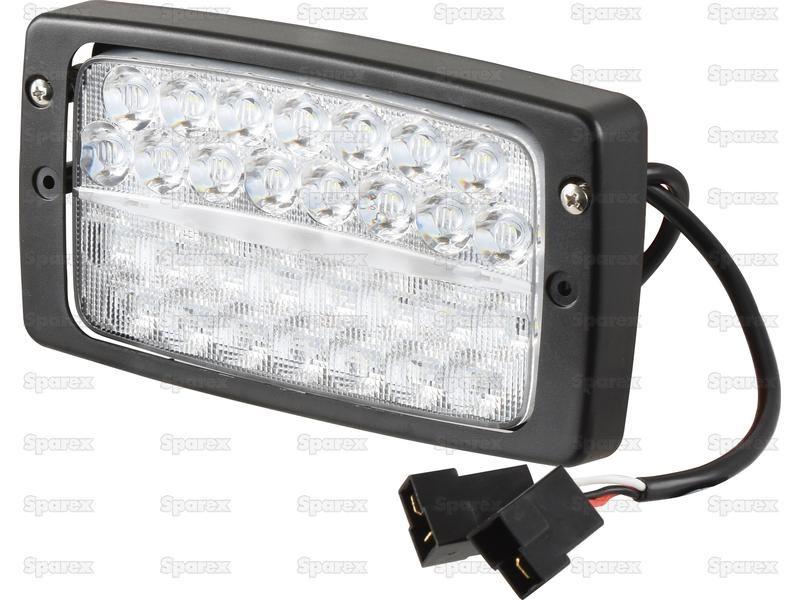

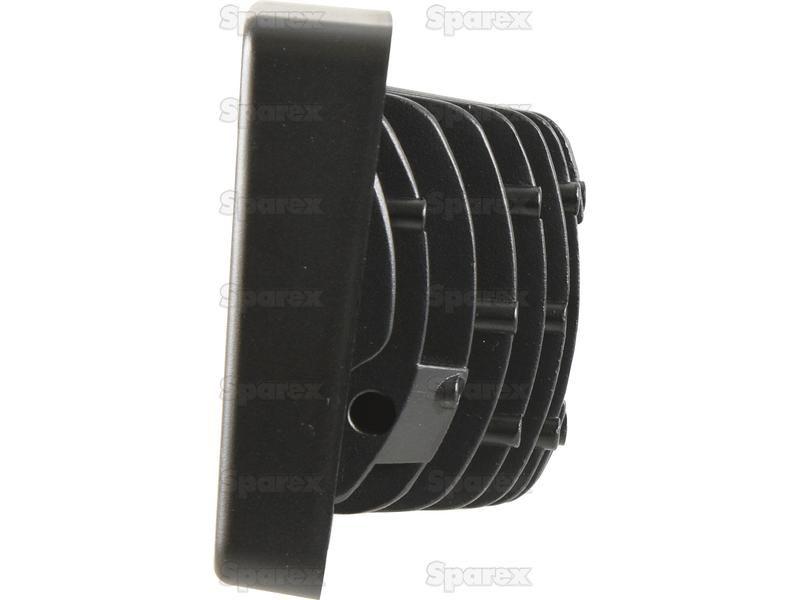

LED Work Light, Interference: Class 3, 9900 Lumens, 10-30V () for Massey Ferguson

Part Number: S.152147Categories: Electrical Accessories
LED Work Light, Interference: Class 3, 9900 Lumens, 10-30V () for Massey Ferguson
LED Work Light, Interference: Class 3, 9900 Lumens, 10-30V () for Massey Ferguson
LED Work Light, Interference: Class 3, 9900 Lumens, 10-30V () for Massey Ferguson

Part Number: S.152147

Grade: Replacement

Part Details

LED Work Light, Interference: Class 3, 9900 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: 2 pcs. DJ70215-6.3-11 Connector

Technical Information

Beam Angle 80°
Beam Type Spot Beam
Brand Sparex
Cable length mm 450
CE Approved Yes
Connection Type 2 pcs. DJ70215-6.3-11 Connector
ECE Rating Reg 10
Fixing 2 Bolts
Function 2, High / Low Beam
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP6K9K
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 2700 / 1360
Lumens Raw 9900
Lux Value 12115
Number of LEDs 30 x LEDs
Overall height mm 101.8
Overall length mm 182.5
Overall width mm 60.89
Power Consumption @ 12V 1.0 Amp
Power Consumption @ 24V 1.08Amps
Related Products 119891, 151835, 151854, 163620, 163905
RoHS Approved Yes
SAE Approved No
Shape Rectangular
Tariff Code 8539100090
Volts 10-30V
Watts 90W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -40°C to 50°C

Models

Massey Ferguson
5410, 5420 (5400 Series), 5425 (5400 Series), 5430 (5400 Series), 5435 (5400 Series), 5435 (5400 Series), 5440 (5400 Series), 5445 (5400 Series), 5450 (5400 Series), 5455 (5400 Series), 5460 (5400 Series), 5465 (5400 Series), 5470 (5400 Series), 5475, 5480 (5400 Series), 6235 (6200 Series), 6245 (6200 Series), 6255 (6200 Series), 6260 (6200 Series), 6265 (6200 Series), 6270 (6200 Series), 6280 (6200 Series), 6290 (6200 Series), 6445 (6400 Series), 6455 (6400 Series), 6460 (6400 Series), 6465 (6400 Series), 6470 (6400 Series), 6475 (6400 Series), 6480 (6400 Series), 6490 (6400 Series), 6495 (6400 Series), 6497 (6400 Series), 6499 (6400 Series), 7465 (7400 Series), 7475 (7400 Series), 7480 (7400 Series), 7485 (7400 Series), 7485 DYNA VT/DYNA STEP, 7490 (7400 Series), 7495 (7400 Series), 8240 (8200 Series), 8250 (8200 Series), 8260 (8200 Series), 8270 (8200 Series), 8280 (8200 Series)
