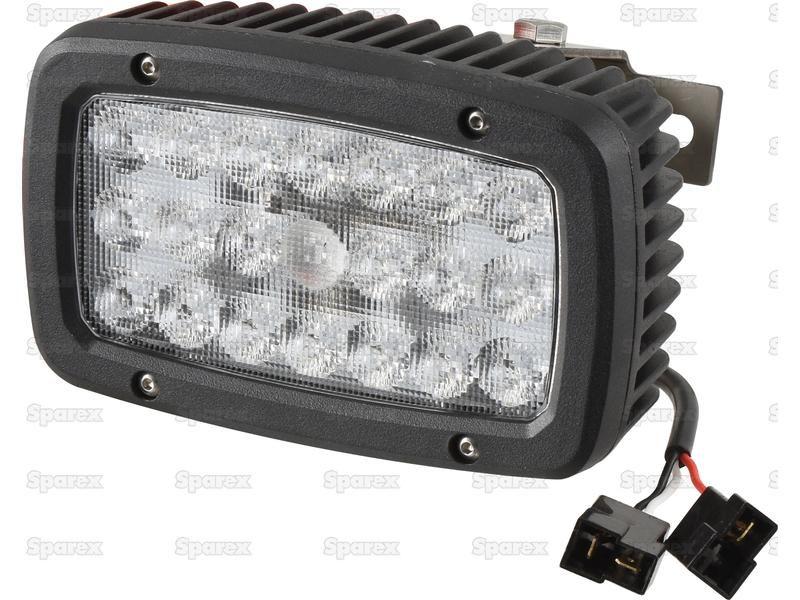

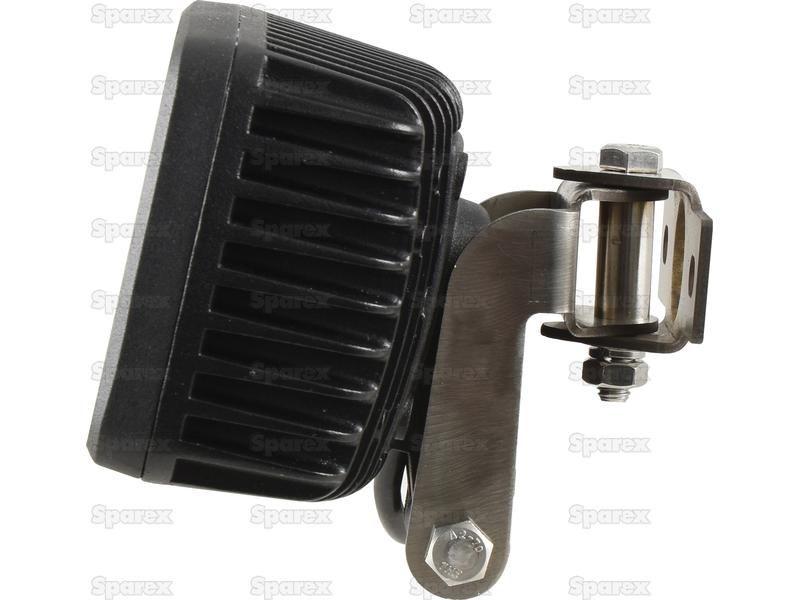

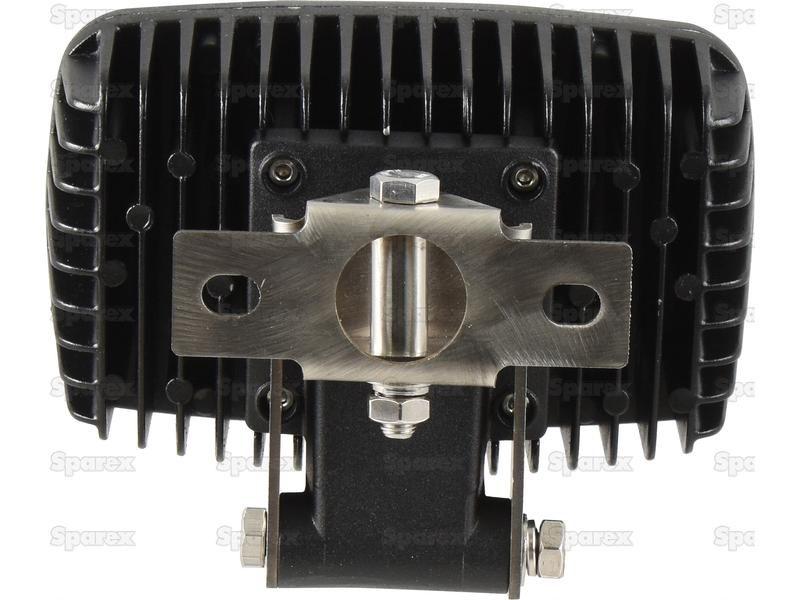

LED Work Light, Interference: Class 3, 6600 Lumens, 10-30V () for Massey Ferguson

Part Number: S.151854Categories: Electrical Accessories
LED Work Light, Interference: Class 3, 6600 Lumens, 10-30V () for Massey Ferguson
LED Work Light, Interference: Class 3, 6600 Lumens, 10-30V () for Massey Ferguson
LED Work Light, Interference: Class 3, 6600 Lumens, 10-30V () for Massey Ferguson
LED Work Light, Interference: Class 3, 6600 Lumens, 10-30V () for Massey Ferguson

Part Number: S.151854

Grade: Replacement

Part Details

LED Work Light, Interference: Class 3, 6600 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: 2 pcs. DJ70215-6.3-11 Connector

Technical Information

Beam Angle 80°
Beam Type Flood Beam
Brand Sparex
Cable length mm 450
CE Approved Yes
Connection Type 2 pcs. DJ70215-6.3-11 Connector
ECE Rating Reg 10
Fixing Bracket
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP6K9K
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 3220 / 1900
Lumens Raw 6600
Lux Value 13790
Notes Bracket included
Number of LEDs 21 LEDs
Overall height mm 98.5
Overall length mm 160
Overall width mm 95
Power Consumption @ 12V 1.25Amps
Power Consumption @ 24V 1.38Amps
Related Products 152147, 163620, 163905
RoHS Approved Yes
SAE Approved No
Shape Rectangular
Tariff Code 8539500000
Volts 10-30V
Watts 63W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -40°C to 50°C

Models

Massey Ferguson
5410, 5420 (5400 Series), 5425 (5400 Series), 5430 (5400 Series), 5435 (5400 Series), 5435 (5400 Series), 5440 (5400 Series), 5445 (5400 Series), 5450 (5400 Series), 5455 (5400 Series), 5460 (5400 Series), 5465 (5400 Series), 5470 (5400 Series), 5475, 5480 (5400 Series), 6445 (6400 Series), 6455 (6400 Series), 6460 (6400 Series), 6465 (6400 Series), 6470 (6400 Series), 6475 (6400 Series), 6480 (6400 Series), 6490 (6400 Series), 6495 (6400 Series), 6497 (6400 Series), 6499 (6400 Series), 7465 (7400 Series), 7475 (7400 Series), 7480 (7400 Series), 7485 (7400 Series), 7485 DYNA VT/DYNA STEP, 7490 (7400 Series), 7495 (7400 Series)
