LED Work Light, Interference: Class 3, 5420 Lumens Raw, 10-30V for Fendt FAVORIT 712 (712)

Part Number: S.119777Categories: Electrical Accessories
LED Work Light, Interference: Class 3, 5420 Lumens Raw, 10-30V for Fendt FAVORIT 712 (712)
LED Work Light, Interference: Class 3, 5420 Lumens Raw, 10-30V for Fendt FAVORIT 712 (712)
LED Work Light, Interference: Class 3, 5420 Lumens Raw, 10-30V for Fendt FAVORIT 712 (712)
LED Work Light, Interference: Class 3, 5420 Lumens Raw, 10-30V for Fendt FAVORIT 712 (712)
LED Work Light, Interference: Class 3, 5420 Lumens Raw, 10-30V for Fendt FAVORIT 712 (712)

Part Number: S.119777

Grade: Replacement

Part Details

LED Work Light, Interference: Class 3, 5420 Lumens Raw, 10-30V ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: For Male or Female Insulated Terminal

Technical Information

Working Temperature °C -40°C to 50°C
Volts 10-30V
Cable length (mm) 1000
Watts 108W

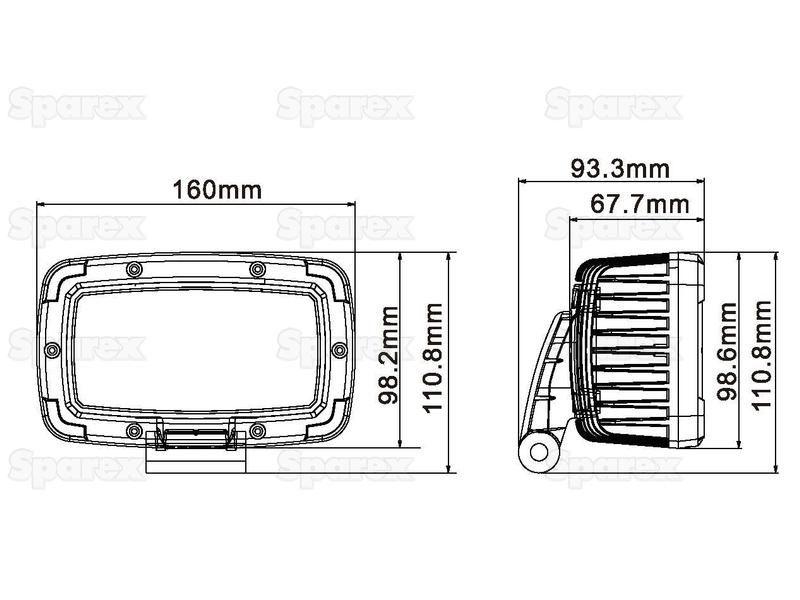

Overall width (mm) 112
Overall height (mm) 130
Overall length (mm) 160
Power Consumption @ 24V: 2.0Amps
Number of LEDs: 36 LEDs

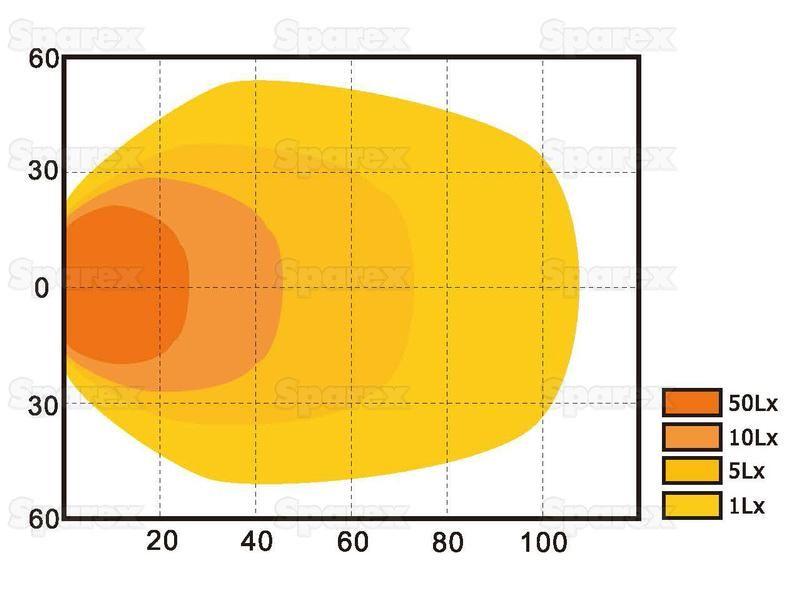

Lux Value 3650
Effective Lumens 3800
Power Consumption @ 12V: 4.0Amps
Lumens Raw 5420
Tariff Code 8539100090
Beam Angle 90°
Housing Material Aluminium
Fixing: Bracket
Interference EMC EMI CISPR 25 Class 3
Lens Colour Clear
Notes Dimensions without bracket
Beam Type Flood Beam
Connection Type For Male or Female Insulated Terminal
IP Rating IP6K9K
Light source LED
SAE Approved No
Lens Material Plastic Safety Glass
Shape Rectangular
ECE Rating Reg 10
Brand Sparex
CE Approved Yes
RoHS Approved Yes
With Noise Suppression Yes

Manufacturer Part Numbers

Fendt
G31290011031
Ford New Holland
G31290011031
