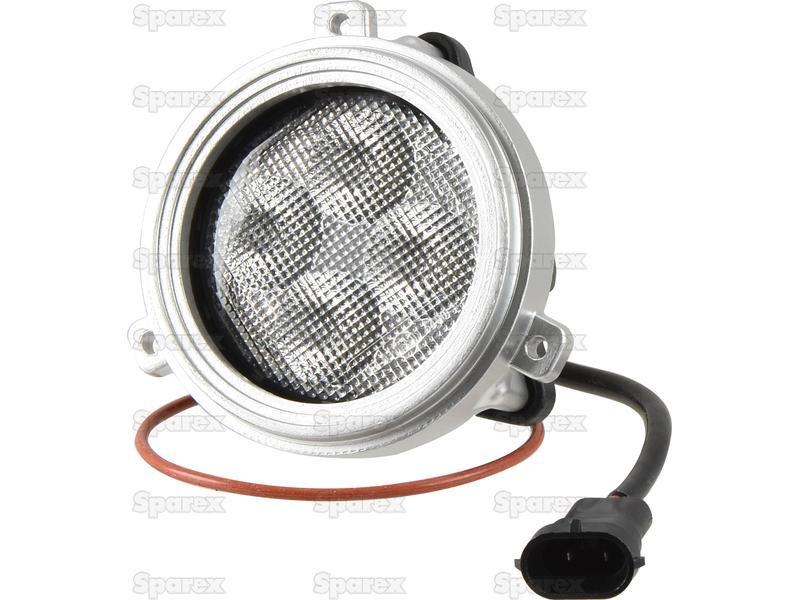

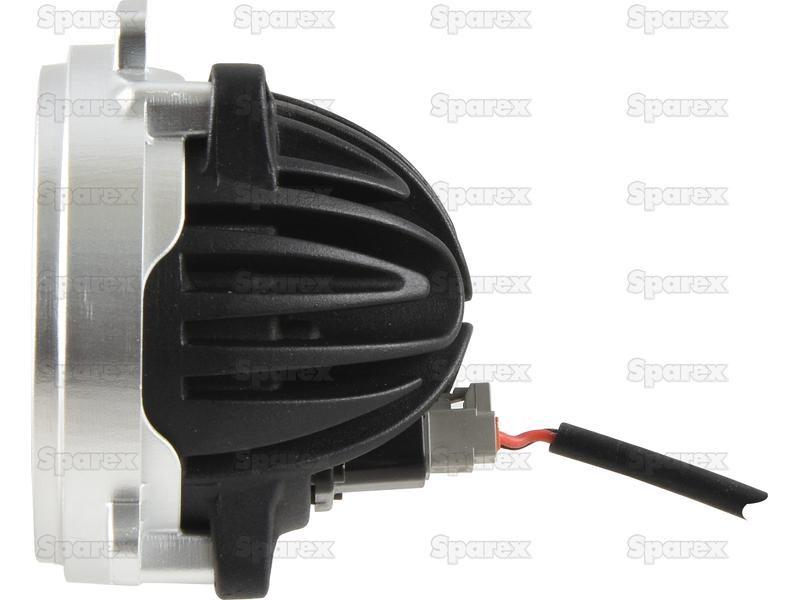

LED Work Light, Interference: Class 3, 4800 Lumens, 10-30V () for Steyr 6185CVT
Part Number: S.152142Categories: Electrical Accessories
Part Number: S.152142
Grade: Replacement
Part Details
LED Work Light, Interference: Class 3, 4800 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: H9 & 9005 Connectors
Technical Information

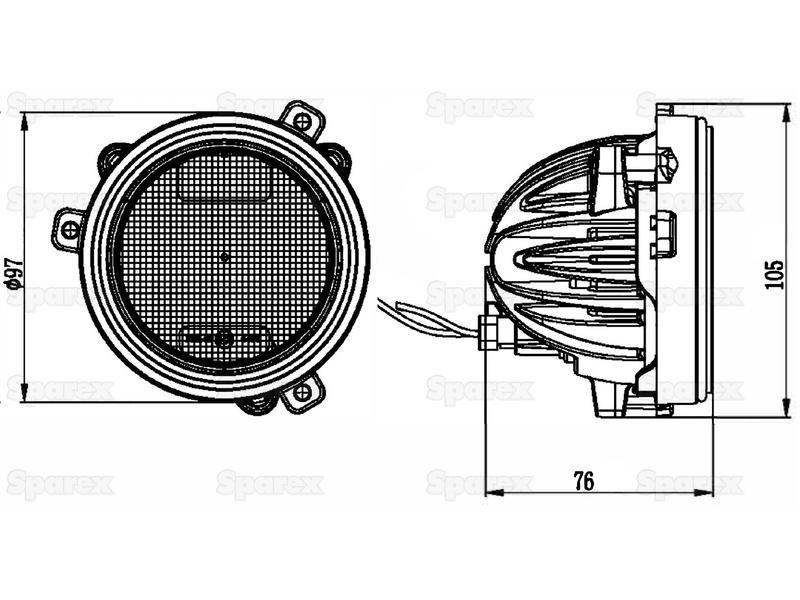

| Ø mm | 80.4 |
| Beam Angle | 60° |
| Beam Type | Spot Beam |
| Brand | Sparex |
| Cable length mm | 70 |
| CE Approved | Yes |
| Connection Type | H9 & 9005 Connectors |
| ECE Rating | Reg 10 |
| Fixing | 3 Bolts |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP6K9K |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 2200 |
| Lumens Raw | 4800 |
| Lux Value | 4305 |
| Notes | O'ring included |
| Number of LEDs | 4 LEDs |
| Overall height mm | 97 |
| Overall length mm | 97 |
| Overall width mm | 76 |
| Power Consumption @ 12V | 1.5Amps |
| Power Consumption @ 24V | 0.75Amps |
| Related Products | 130540, 130541, 163863, 163867, 163871, 163877, 163880 |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Round |
| Tariff Code | 8539100090 |
| Volts | 10-30V |
| Watts | 40W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 50°C |
