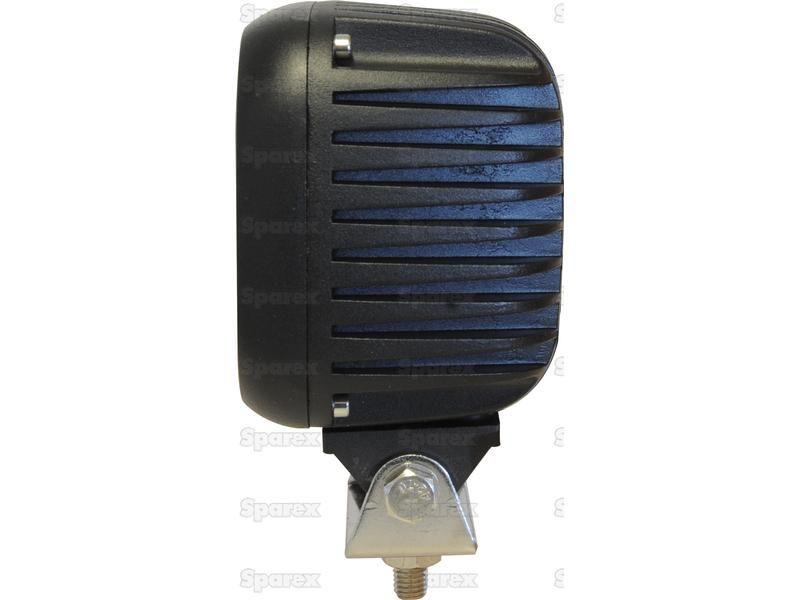

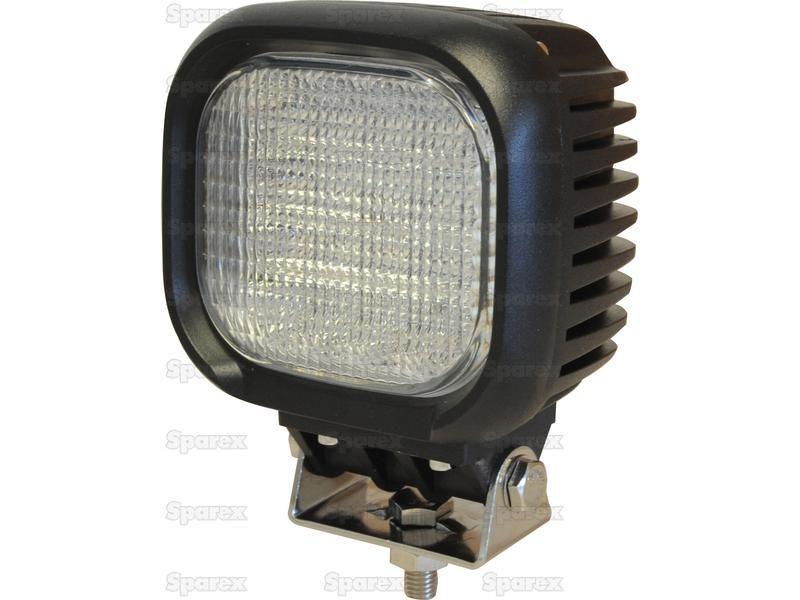

LED Work Light, Interference: Class 3, 4800 Lumens, 10-30V () for Fendt

Part Number: S.112526Categories: Electrical Accessories
LED Work Light, Interference: Class 3, 4800 Lumens, 10-30V () for Fendt
LED Work Light, Interference: Class 3, 4800 Lumens, 10-30V () for Fendt
LED Work Light, Interference: Class 3, 4800 Lumens, 10-30V () for Fendt
LED Work Light, Interference: Class 3, 4800 Lumens, 10-30V () for Fendt
LED Work Light, Interference: Class 3, 4800 Lumens, 10-30V () for Fendt

Part Number: S.112526

Grade: Replacement

Part Details

LED Work Light, Interference: Class 3, 4800 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: For Male or Female Insulated Terminal

Technical Information

Beam Angle 60°
Beam Type Flood Beam
Brand Sparex
Cable length mm 1000
CE Approved Yes
Connection Type For Male or Female Insulated Terminal
ECE Rating Reg 10
Fixing Bracket
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP6K9K
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 2700
Lumens Raw 4800

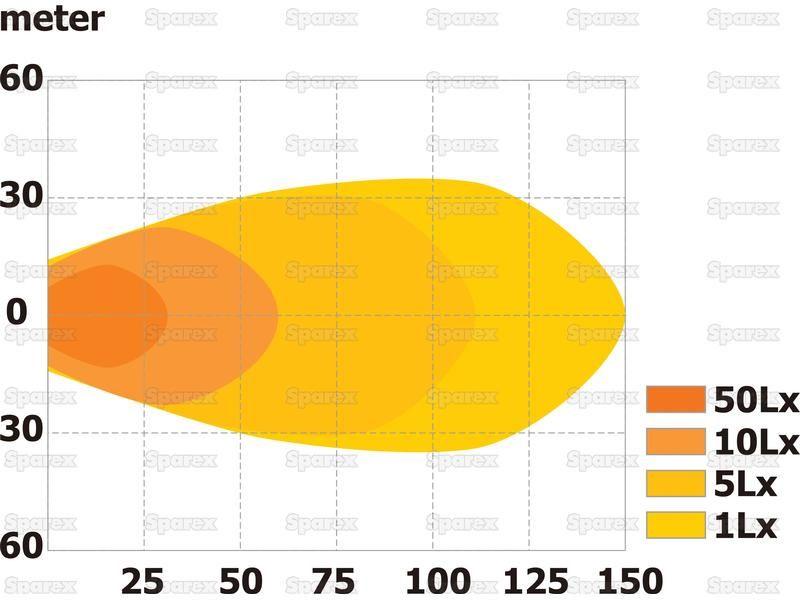

Lux Value 14050
Notes Dimensions without bracket
Number of LEDs 16 LEDs
On Off Switch No
Overall height mm 151.2
Overall length mm 124.2
Overall width mm 87
Power Consumption @ 12V 2.92Amps
Power Consumption @ 24V 1.46Amps
Related Products 119256, 119258
RoHS Approved Yes
SAE Approved No
Shape Square
Tariff Code 8539500000
Volts 10-30V
Watts 48W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -40°C to 50°C

Models

Fendt
310 VARIO S4 (347), 311 VARIO S4 (348), 312 VARIO S4 (349), 313 VARIO S4 (350), 512 VARIO S4 (435), 513 VARIO S4 (436), 514 VARIO S4 (437), 516 VARIO S4 (438), 714 VARIO S4 SCR (738), 716 VARIO S4 SCR (739), 718 VARIO S4 (740), 720 VARIO S4 (741), 722 VARIO S4 (742), 724 VARIO S4 (743), 724 VARIO SCR (737), 819 VARIO SCR (832), 822 VARIO S4 (839), 822 VARIO SCR (833), 824 VARIO S4 (840), 824 VARIO SCR (834), 826 VARIO S4 (841), 826 VARIO SCR (835), 828 VARIO S4 (842), 828 VARIO SCR (836), 924 VARIO SCR (941), 924 VARIO TIER III (941), 927 VARIO S4 (950), 927 VARIO SCR (942), 927 VARIO TIER III (942), 930 VARIO S4 (951), 930 VARIO SCR (943), 930 VARIO TIER III (943), 933 VARIO SCR (944), 933 VARIO TIER III (944), 936 VARIO S4 (953), 936 VARIO SCR (945), 936 VARIO TIER III (945), 939 VARIO S4 (954), 939 VARIO SCR (946)

Manufacturer Part Numbers

Fendt
G737900110030, G737900110031
