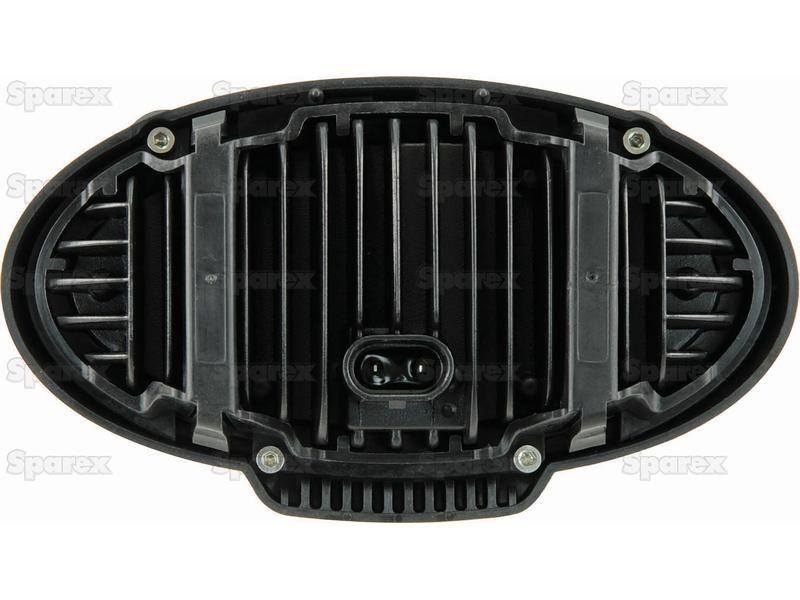

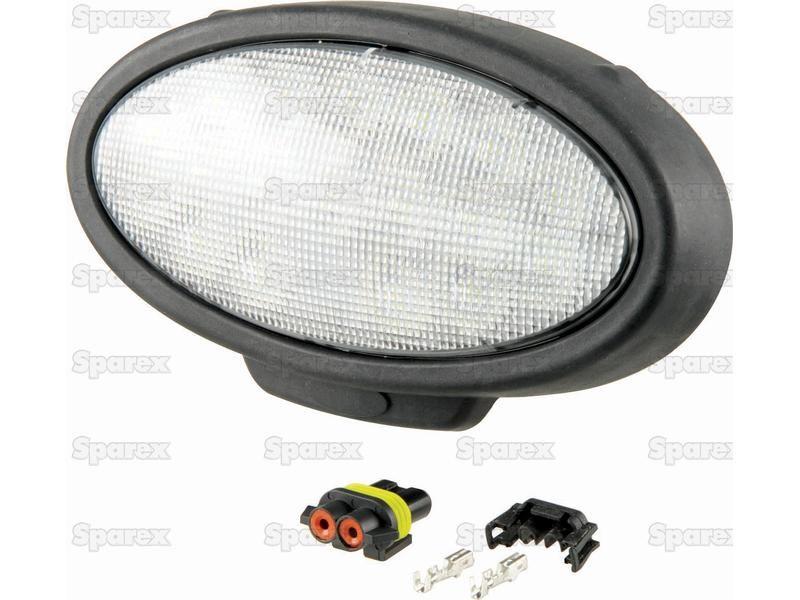

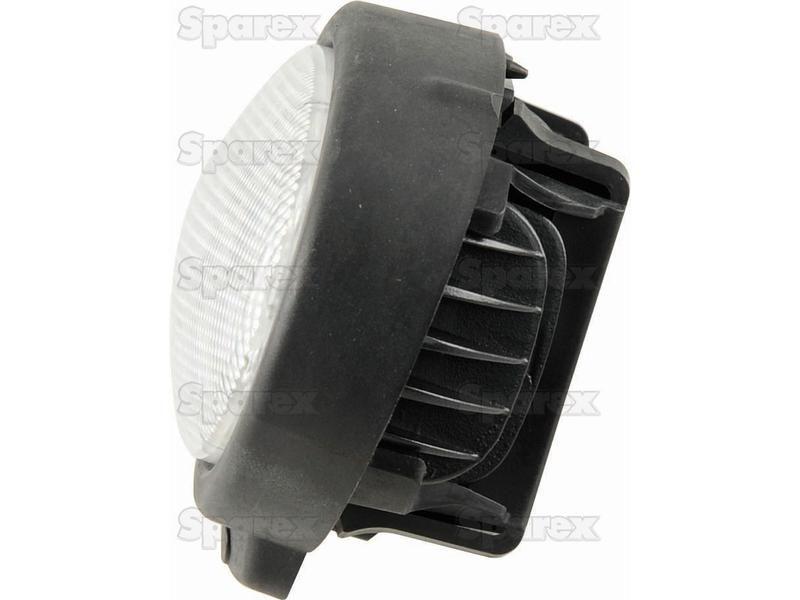

LED Work Light, Interference: Class 3, 4100 Lumens, 10-30V () for John Deere

Part Number: S.149215Categories: Electrical Accessories
LED Work Light, Interference: Class 3, 4100 Lumens, 10-30V () for John Deere
LED Work Light, Interference: Class 3, 4100 Lumens, 10-30V () for John Deere
LED Work Light, Interference: Class 3, 4100 Lumens, 10-30V () for John Deere
LED Work Light, Interference: Class 3, 4100 Lumens, 10-30V () for John Deere

Part Number: S.149215

Grade: Replacement

Part Details

LED Work Light, Interference: Class 3, 4100 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP69KConnection Type: None

Technical Information

Beam Angle 160°
Beam Type Flood Beam
Brand Sparex
Cable length mm 100
CE Approved Yes
Connection Type None
ECE Rating Reg 10
Fixing Panel Mount
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP69K
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 3500
Lumens Raw 4100
Lux Value 4788
Number of LEDs 18 LEDs
Overall height mm 108
Overall length mm 190.5
Overall width mm 70.4
Power Consumption @ 12V 2.5Amps
Power Consumption @ 24V 1.25Amps
Related Products 143231, 149214
RoHS Approved Yes
SAE Approved No
Shape Oval
Tariff Code 8539100090
Volts 10-30V
Watts 30W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -45°C to 60°C

Models

John Deere
5090R, 5100R, 5115R, 6110R, 6115R, 6120R, 6125R, 6130R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 7210R, 7230R, 7250R, 7270R, 7290R, 7310R, 8225R, 8245R, 8270R, 8295R, 8320R, 8320RT, 8335R, 8345R, 8345RT, 8370R, 8370RT, 8400R, 9370R, 9420R, 9420RX, 9470R, 9470RT, 9470RX, 9520R, 9520RT, 9520RX, 9570R, 9570RT, 9570RX, 9620R, 9620RX, T550, T560, T660, T670, W540, W550, W650, W660
