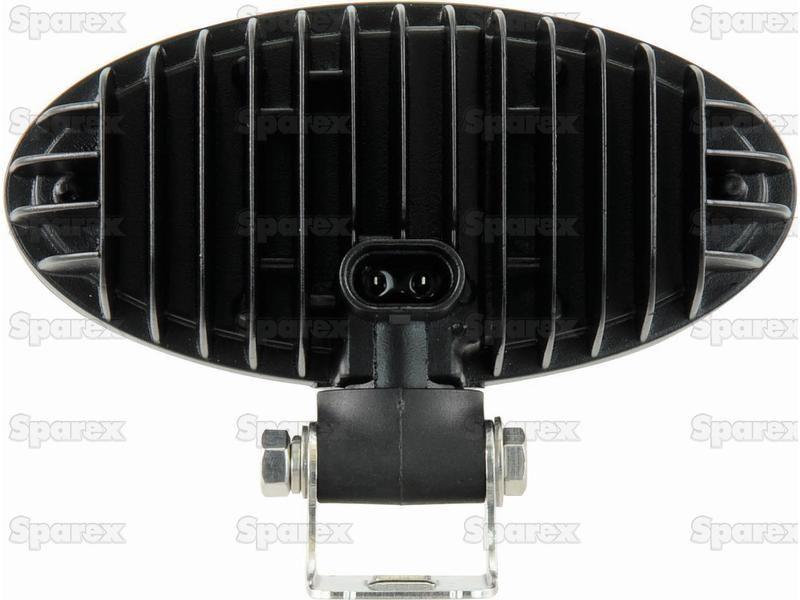

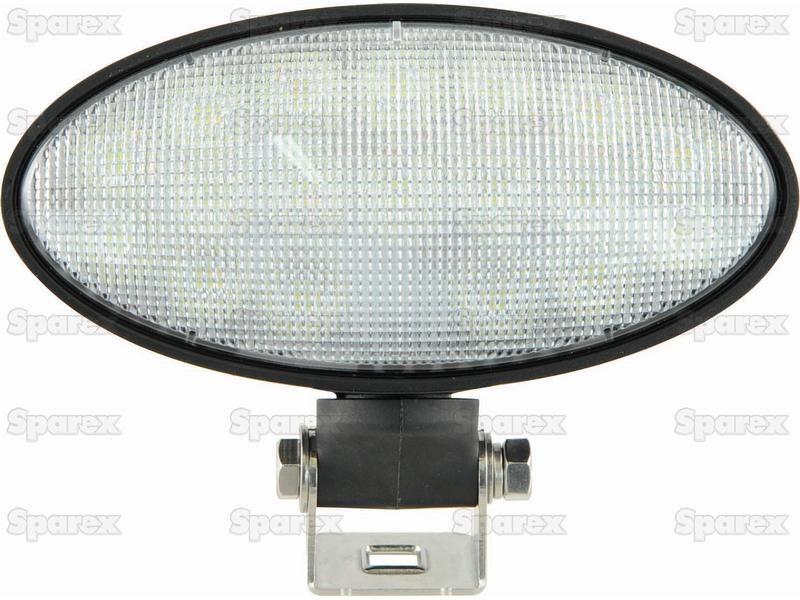

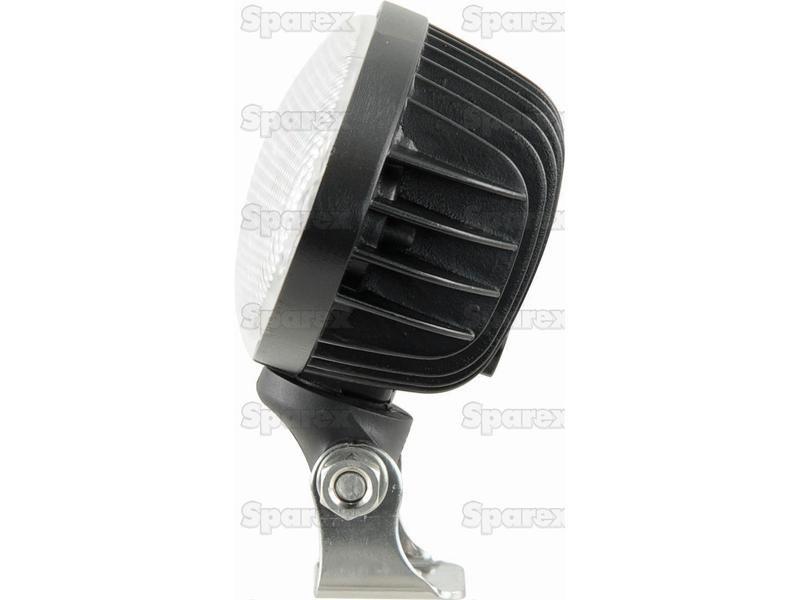

LED Work Light, Interference: Class 3, 4100 Lumens, 10-30V () for John Deere
Part Number: S.149214Categories: Electrical Accessories
Part Number: S.149214
Grade: Replacement
Part Details
LED Work Light, Interference: Class 3, 4100 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP69KConnection Type: None
Technical Information
| Beam Angle | 160° |
| Beam Type | Flood Beam |
| Brand | Sparex |
| Cable length mm | 100 |
| CE Approved | Yes |
| Connection Type | None |
| ECE Rating | Reg 10 |
| Fixing | 1 Bolt |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP69K |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 3500 |
| Lumens Raw | 4100 |
| Lux Value | 4788 |
| Number of LEDs | 18 LEDs |
| Overall height mm | 128.6 |
| Overall length mm | 172.9 |
| Overall width mm | 69.6 |
| Power Consumption @ 12V | 2.5Amps |
| Power Consumption @ 24V | 1.25Amps |
| Related Products | 143231, 130542, 149215 |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Oval |
| Tariff Code | 8539500000 |
| Volts | 10-30V |
| Watts | 30W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -45°C to 60°C |
Models
| John Deere |
|---|
| 2904, 5075M, 5085E, 5090E, 5090M, 5090R, 5100E, 5100M, 5100R, 5115M, 5115R, 6095MC, 6095RC, 6105MC, 6105R, 6105RC, 6110R, 6115MC, 6115R, 6115RC, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6230R, 6250R, 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT, 8400R, 9360R, 9370R, 9410R, 9420R, 9420RX, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX, 9620R, 9620RX |
