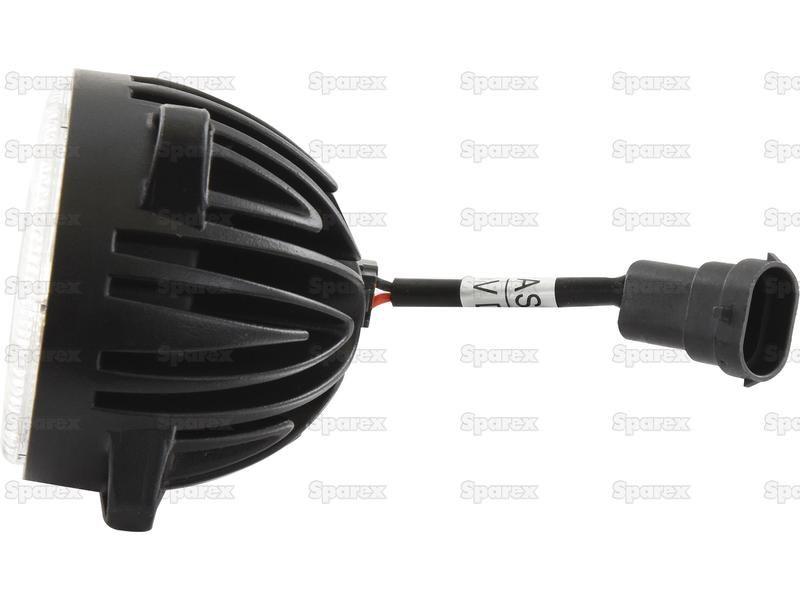

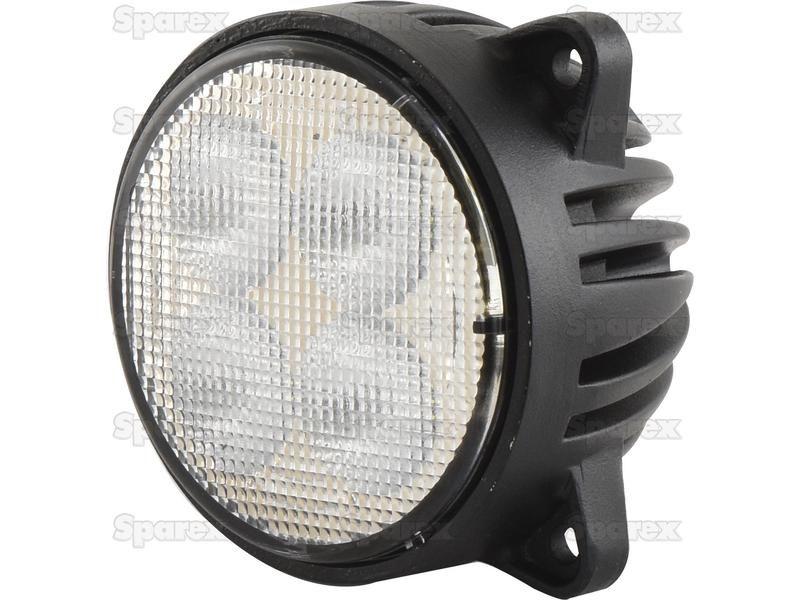

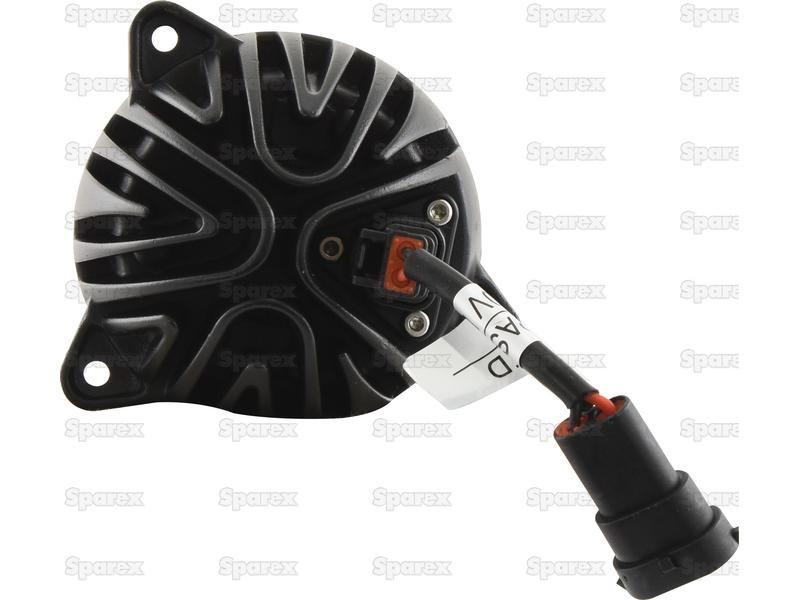

LED Work Light, Interference: Class 3, 4000 Lumens, 10-30V () for Case IH, Deutz-Fahr, Same

Part Number: S.163912Categories: Electrical Accessories
LED Work Light, Interference: Class 3, 4000 Lumens, 10-30V () for Case IH, Deutz-Fahr, Same
LED Work Light, Interference: Class 3, 4000 Lumens, 10-30V () for Case IH, Deutz-Fahr, Same
LED Work Light, Interference: Class 3, 4000 Lumens, 10-30V () for Case IH, Deutz-Fahr, Same
LED Work Light, Interference: Class 3, 4000 Lumens, 10-30V () for Case IH, Deutz-Fahr, Same

Part Number: S.163912

Grade: Replacement

Part Details

LED Work Light, Interference: Class 3, 4000 Lumens, 10-30V () ECE Rating: Reg10 - E4 10R053598CE Approved: YesIP Rating: IP6K9KConnection Type: H9 Connector

Technical Information

Beam Angle 80°
Beam Type Flood Beam
Brand Sparex
Cable length mm 70
CE Approved Yes
Connection Type H9 Connector
ECE Rating Reg10 - E4 10R053598
Fixing Bracket
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP6K9K
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 1940
Lumens Raw 4000
Lux Value 4602.5cd
Number of LEDs 4 LEDs
Overall height mm 94.5
Overall length mm 83.5
Overall width mm 70
Power Consumption @ 12V 1.46Amps
Power Consumption @ 24V 0.73Amps
Related Products 130540, 130541, 163861, 163876, 163878
RoHS Approved Yes
SAE Approved No
Shape Round
Tariff Code 8539100090
Volts 10-30V
Watts 40W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -40°C

Models

Case IH
PUMA 165 - CVT, PUMA 165 - CVX, Puma 165 (Puma Series), PUMA 170 - CVT, PUMA 170 - CVX, Puma 170 (Puma Series), PUMA 180 - CVT, PUMA 180 - CVX, Puma 180 (Puma Series), PUMA 185 - CVT, PUMA 185 - CVX, Puma 185 (Puma Series), PUMA 195 - CVT, PUMA 195 - CVX, Puma 195 (Puma Series), PUMA 200 - CVT, PUMA 200 - CVX, Puma 200 (Puma Series), PUMA 210 - CVT, PUMA 210 - CVX, Puma 210 (Puma Series), PUMA 215 - CVT, PUMA 215 - CVX, Puma 215 (Puma Series), PUMA 225 - CVT, PUMA 225 - CVX, PUMA 230 - CVT, PUMA 230 - CVX
Deutz-Fahr
AGROPLUS 320 F, AGROPLUS 320 S COM3, AGROPLUS 320 V COM3, AGROPLUS 330 S, AGROPLUS 330 V, AGROPLUS 410 F, AGROPLUS 410 S COM3, AGROPLUS 410 V COM3, AGROPLUS 420 F, AGROPLUS 420 S COM3, AGROPLUS 420 V COM3, AGROPLUS 430 S, AGROPLUS 430 V
Same
FRUTTETO III 100, FRUTTETO III 80, FRUTTETO III 90, FRUTTETO S100, FRUTTETO S105, FRUTTETO S115, FRUTTETO S80, FRUTTETO S90, FRUTTETO V100, FRUTTETO V105, FRUTTETO V115, FRUTTETO V80, FRUTTETO V90
