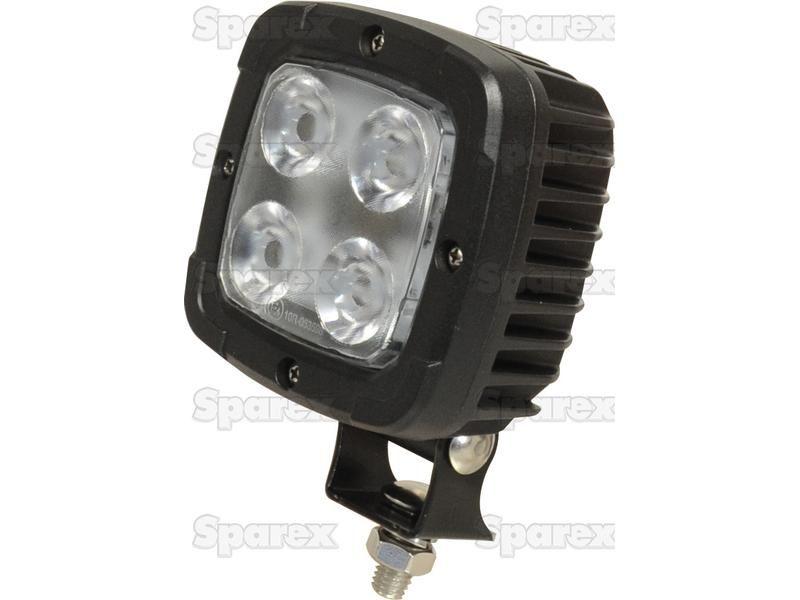

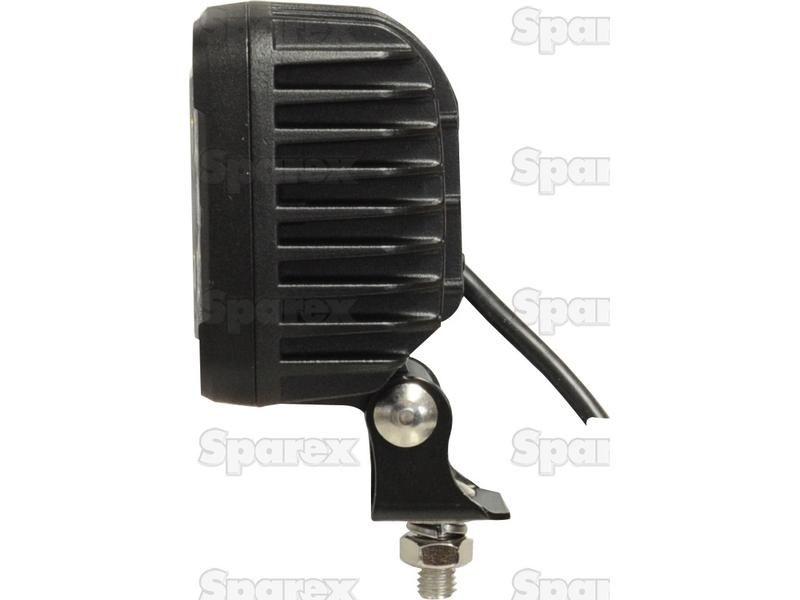

LED Work Light, Interference: Class 3, 4000 Lumens Raw, 10-30V for Fendt FAVORIT 712 (712)
Part Number: S.119891Categories: Electrical Accessories
Part Number: S.119891
Grade: Replacement
Part Details
LED Work Light, Interference: Class 3, 4000 Lumens Raw, 10-30V ECE Rating: Reg 10CE Approved: YesIP Rating: IP69KConnection Type: For Male or Female Insulated Terminal
Technical Information
| Working Temperature °C | -40°C to 55°C |
| Fixing: | 1 Bolt |
| Power Consumption @ 24V: | 1.13Amps |
| Volts | 10-30V |
| Cable length (mm) | 1000 |

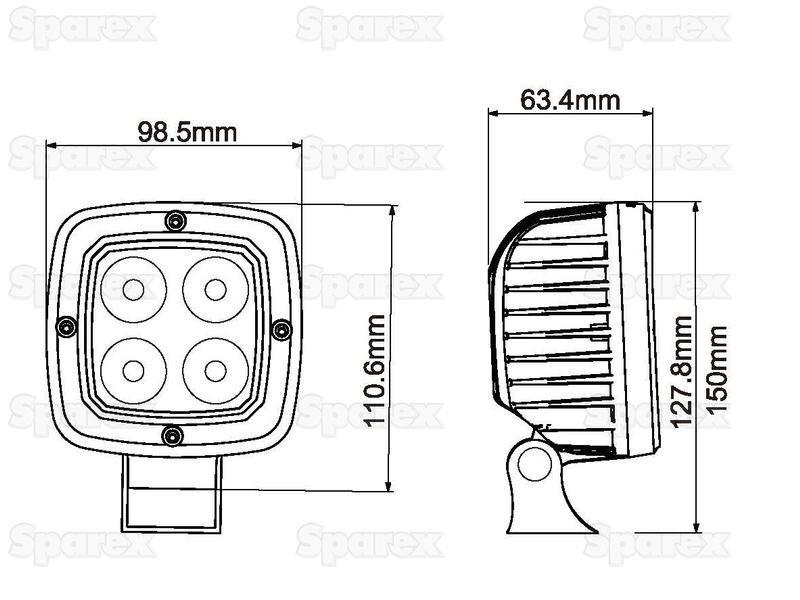

| Overall height (mm) | 110.6 |
| Related products | 112533,119780,152147 |
| Power Consumption @ 12V: | 2.25Amps |
| Effective Lumens | 2500 |
| Watts | 27W |
| Number of LEDs: | 4 LEDs |
| Lumens Raw | 4000 |
| Alternative to | 51750 |
| Overall width (mm) | 63.4 |
| Lux Value | 6715 |

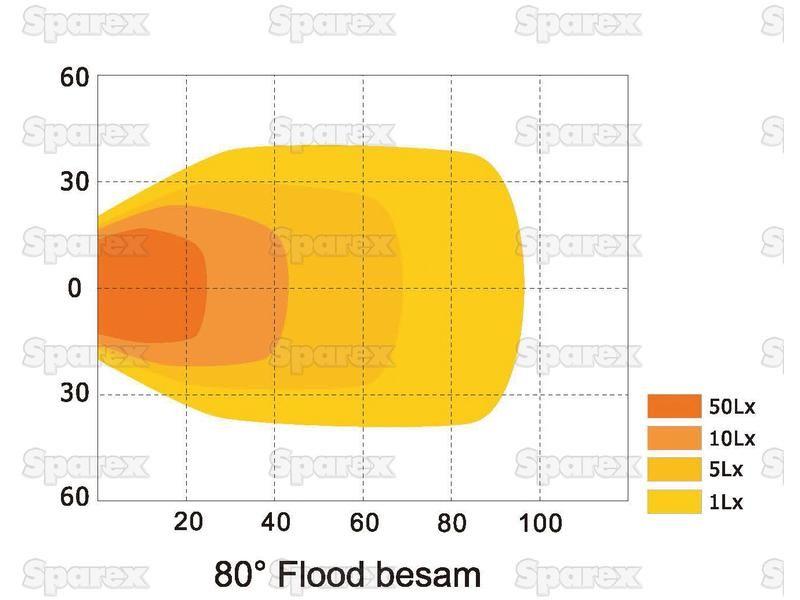

| Beam Angle | 80° |
| Tariff Code | 8539100090 |
| Overall length (mm) | 98.5 |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 3 |
| Lens Colour | Clear |
| Notes | Dimensions without bracket |
| Beam Type | Flood Beam |
| Connection Type | For Male or Female Insulated Terminal |
| IP Rating | IP69K |
| Light source | LED |
| SAE Approved | No |
| Lens Material | Plastic Safety Glass |
| Shape | Rectangular |
| ECE Rating | Reg 10 |
| Brand | Sparex |
| CE Approved | Yes |
| RoHS Approved | Yes |
| With Noise Suppression | Yes |
Manufacturer Part Numbers
| Claas |
|---|
| 0000137330, 013733.0 |
| Deutz-Fahr |
| 04411937.4, 04424195.4, 04425599.4, 116046038, 16046038, 280392950, 28039295010, 280392960 |
| Fendt |
| G312901110010, G312901110020, G312901110021, G312901110022, G312901110023 |
| HELLA LTD |
| 1GA007506002, 1GA007506081 |
| JCB |
| 700/38800, 700/43900, 700/50022, 700/50091, 700/50102 |
| John Deere |
| AZ55467 |
| Massey Ferguson |
| 4291408M92, 4291409M91 |
| Valmet & Valtra |
| 3420300, 3420330, 34203300, 4291408M92, 4291409M91 |
