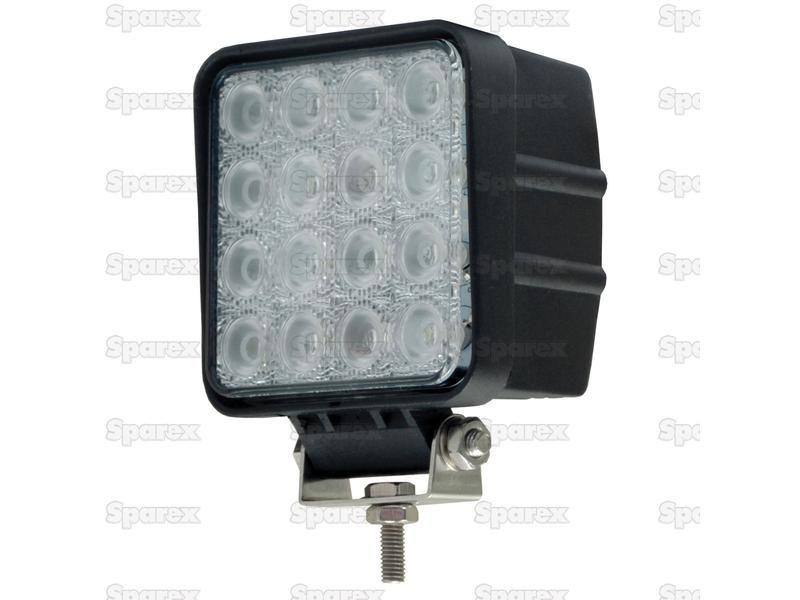

LED Work Light, Interference: Class 3, 2880 Lumens, 10-30V ()

Part Number: S.129484Categories: Electrical Accessories
LED Work Light, Interference: Class 3, 2880 Lumens, 10-30V ()
LED Work Light, Interference: Class 3, 2880 Lumens, 10-30V ()
LED Work Light, Interference: Class 3, 2880 Lumens, 10-30V ()
LED Work Light, Interference: Class 3, 2880 Lumens, 10-30V ()
LED Work Light, Interference: Class 3, 2880 Lumens, 10-30V ()

Part Number: S.129484

Grade: Replacement

Part Details

LED Work Light, Interference: Class 3, 2880 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP68Connection Type: None

Technical Information

Beam Angle 80°
Beam Type 1 function
Brand Sparex
Cable length mm 400
CE Approved Yes
Connection Type None
ECE Rating Reg 10
Fixing 1 Bolt
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP68
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 2600
Lumens Raw 2880
Lux Value 3000
Notes Dimensions without bracket
Number of LEDs 16 LEDs

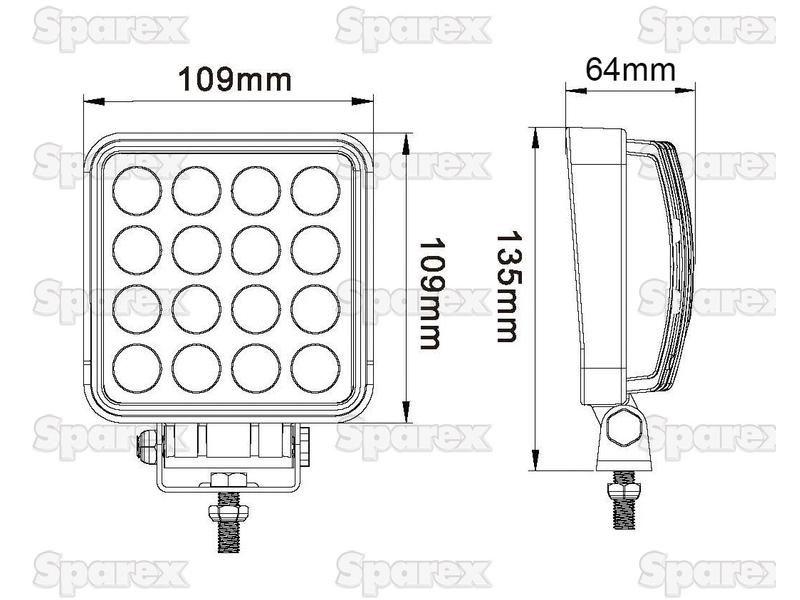

Overall height mm 109
Overall length mm 109
Overall width mm 64
Power Consumption @ 12V 1.25Amps
Power Consumption @ 24V 0.62Amps
RoHS Approved Yes
SAE Approved No
Shape Square
Tariff Code 8539500000
Volts 10-30V
Watts 15W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -20°C to 60°C
