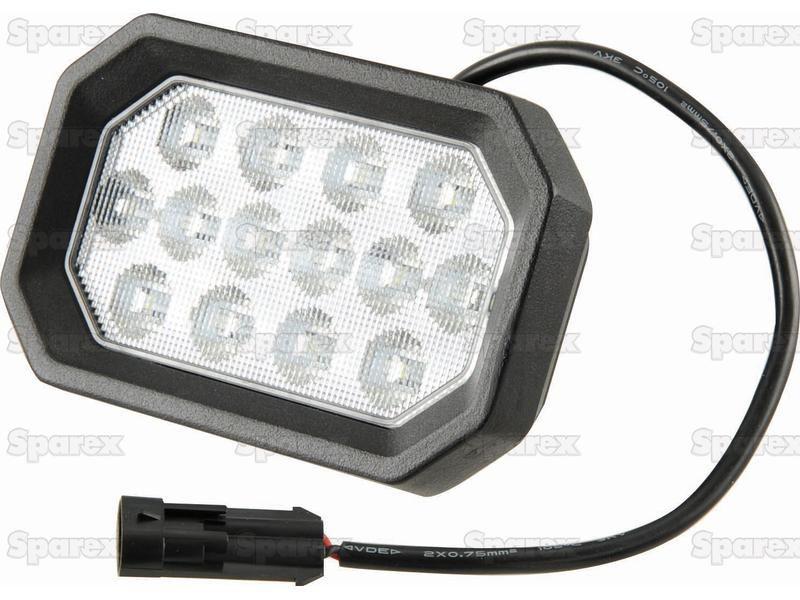

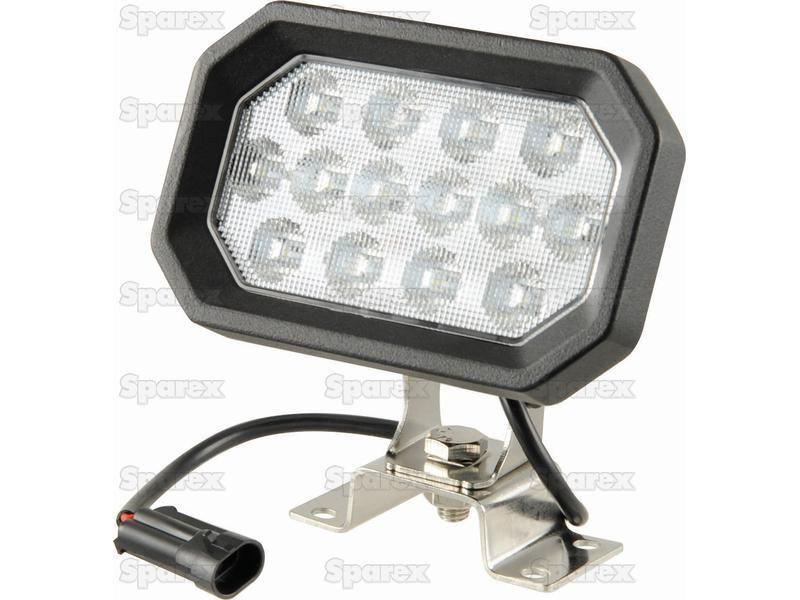

LED Work Light, Interference: Class 3, 2800 Lumens, 10-30V () for John Deere

Part Number: S.151847Categories: Electrical Accessories
LED Work Light, Interference: Class 3, 2800 Lumens, 10-30V () for John Deere
LED Work Light, Interference: Class 3, 2800 Lumens, 10-30V () for John Deere
LED Work Light, Interference: Class 3, 2800 Lumens, 10-30V () for John Deere
LED Work Light, Interference: Class 3, 2800 Lumens, 10-30V () for John Deere
LED Work Light, Interference: Class 3, 2800 Lumens, 10-30V () for John Deere

Part Number: S.151847

Grade: Replacement

Part Details

LED Work Light, Interference: Class 3, 2800 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: Delphi Connector

Technical Information

Beam Angle 80°
Beam Type Flood Beam
Brand Sparex
Cable length mm 400
CE Approved Yes
Connection Type Delphi Connector
ECE Rating Reg 10
Fixing Bracket
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP6K9K
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 2360
Lumens Raw 2800
Lux Value 4800
Notes Bracket included
Number of LEDs 14 LEDs
Overall height mm 95
Overall length mm 148
Overall width mm 80.5
Power Consumption @ 12V 2.58Amps
Power Consumption @ 24V 1.29Amps
Related Products 149216
RoHS Approved Yes
SAE Approved No
Shape Rectangular
Tariff Code 8539100090
Volts 10-30V
Watts 42W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -40°C to 50°C

Models

John Deere
5070M, 5080M, 5090M, 5100M, 5620 (20 Series), 5620 (5020 Series), 5720 (20 Series), 5720 (Forage Harvesters - 5020 Series), 5820 (20 Series), 5820 (Forage Harvesters - 5020 Series), 6020SE, 6110J, 6120SE, 6220SE, 6320SE, 6420SE, 6520SE, 6620SE, 6920SE
