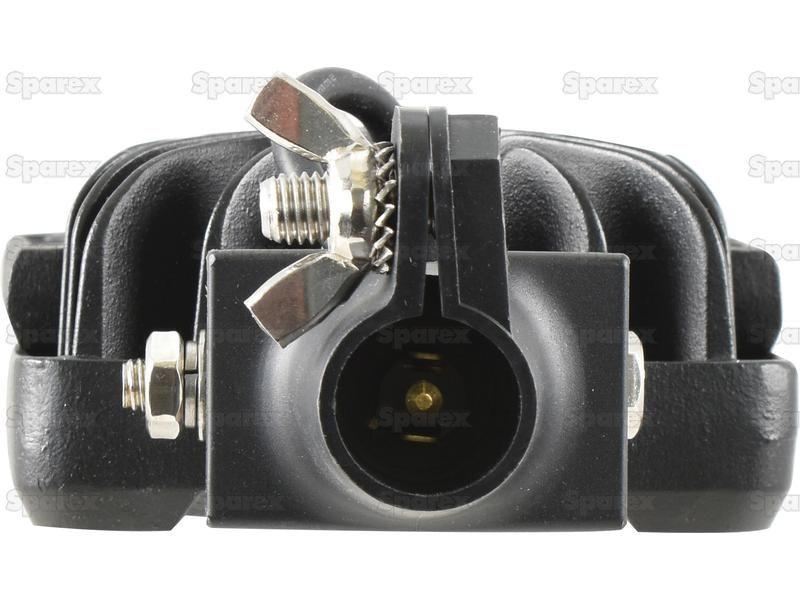

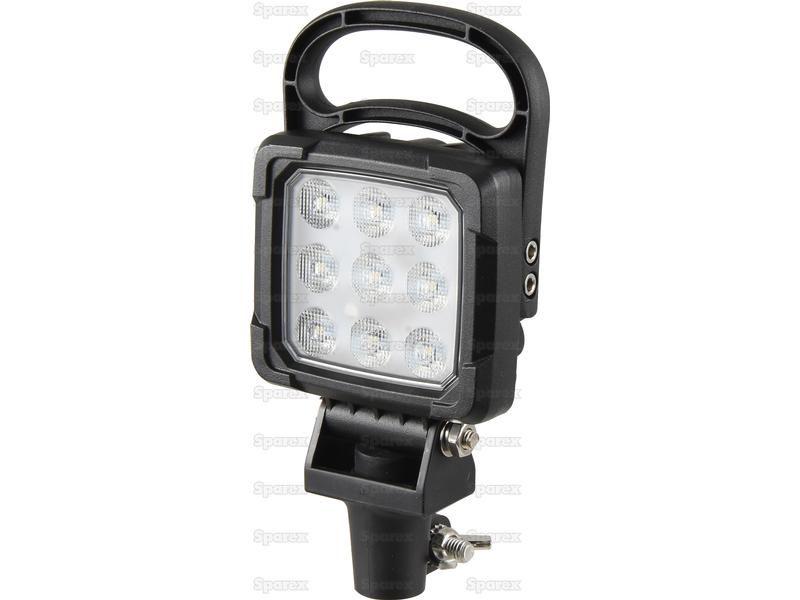

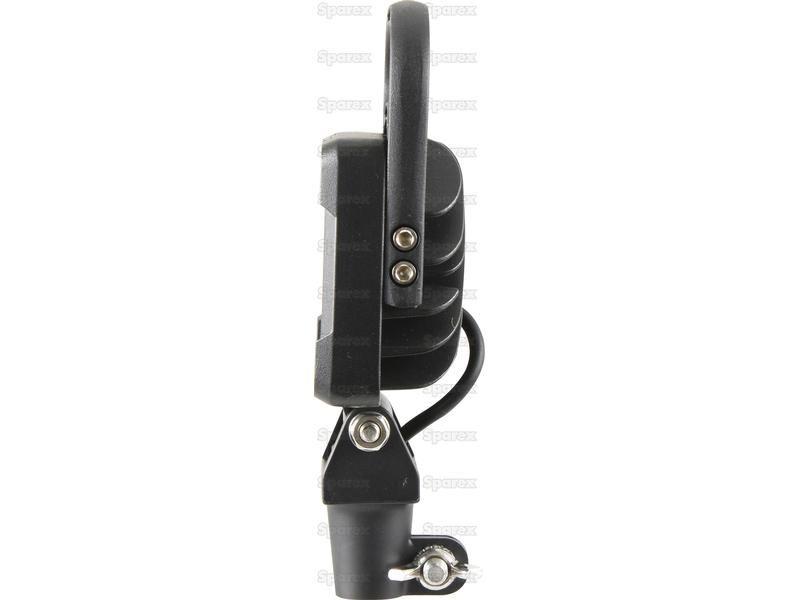

LED Work Light, Interference: Class 3, 2250 Lumens, 10-30V () for John Deere (AL205916)

Part Number: S.130542Categories: Electrical Accessories
LED Work Light, Interference: Class 3, 2250 Lumens, 10-30V () for John Deere (AL205916)
LED Work Light, Interference: Class 3, 2250 Lumens, 10-30V () for John Deere (AL205916)
LED Work Light, Interference: Class 3, 2250 Lumens, 10-30V () for John Deere (AL205916)
LED Work Light, Interference: Class 3, 2250 Lumens, 10-30V () for John Deere (AL205916)

Part Number: S.130542

Grade: Replacement

Part Details

LED Work Light, Interference: Class 3, 2250 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: 12V Port

Technical Information

Beam Angle 80°
Beam Type Flood Beam
Brand Sparex
Cable length mm 100
CE Approved Yes
Connection Type 12V Port
ECE Rating Reg 10
Fixing Bracket
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP6K9K
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 1500
Lumens Raw 2250
Lux Value 4800
Number of LEDs 9 LEDs
Overall height mm 237.7
Overall length mm 120
Overall width mm 61
Power Consumption @ 12V 2.0Amps
Power Consumption @ 24V 1.0 Amp
Related Products 149213, 149216, 149214
RoHS Approved Yes
SAE Approved No
Shape Rectangular
Tariff Code 8539100090
Volts 10-30V
Watts 27W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -40°C to 50°C

Models

John Deere
5075M, 5085M, 5100M, 5115M, 6090MC, 6090RC, 6095MC, 6095RC, 6100RC, 6105M, 6105MC, 6105R, 6105RC, 6110M, 6110MC, 6110RC, 6115M, 6115MC, 6115RC, 6120M, 6125M, 6125R, 6130M, 6130R, 6135M, 6135R, 6140M, 6140R, 6145M, 6145R, 6150M, 6150R, 6155M, 6155R, 6170M, 6170R, 6175M, 6175R, 6190R, 6195M, 6195R, 6210R, 6215R, 6230R, 6250R

Manufacturer Part Numbers

John Deere
AL205916
