LED Work Light, Interference: Class 3, 2070 Lumens, 10-30V ()
Part Number: S.129483Categories: Electrical Accessories
Part Number: S.129483
Grade: Replacement
Part Details
LED Work Light, Interference: Class 3, 2070 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP67Connection Type: None
Technical Information

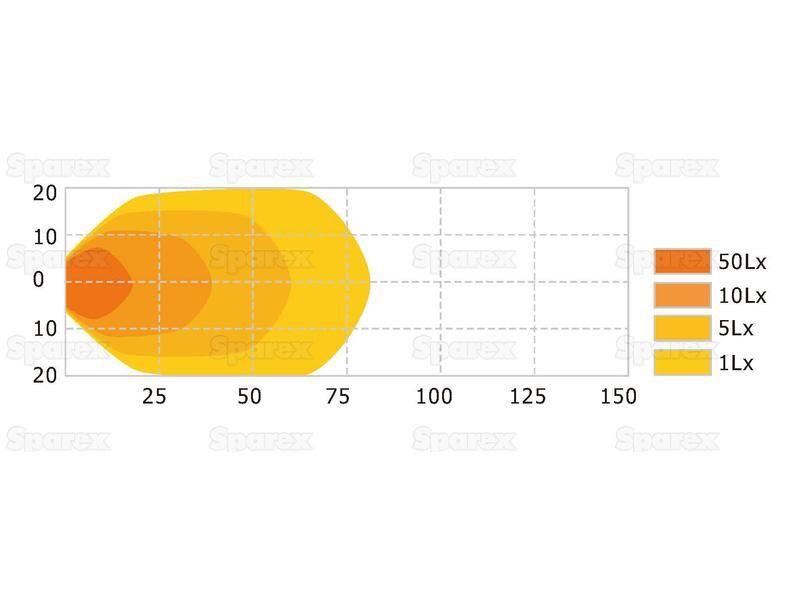

| Beam Angle | 80° |
| Beam Type | 1 function |
| Brand | Sparex |
| Cable length mm | 400 |
| CE Approved | Yes |
| Connection Type | None |
| ECE Rating | Reg 10 |
| Fixing | 1 Bolt |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP67 |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 1800 |
| Lumens Raw | 2070 |
| Lux Value | 2200 |
| Notes | Dimensions without bracket |
| Number of LEDs | 9 LEDs |

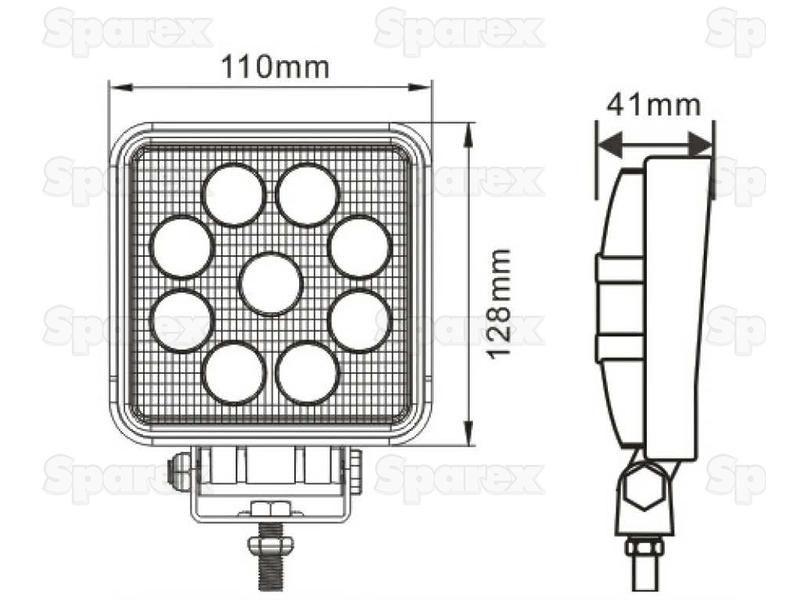

| Overall height mm | 128 |
| Overall length mm | 41 |
| Overall width mm | 110 |
| Power Consumption @ 12V | 0.87Amps |
| Power Consumption @ 24V | 0.43Amps |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Square |
| Tariff Code | 8539500000 |
| Volts | 10-30V |
| Watts | 10W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -20°C to 60°C |
