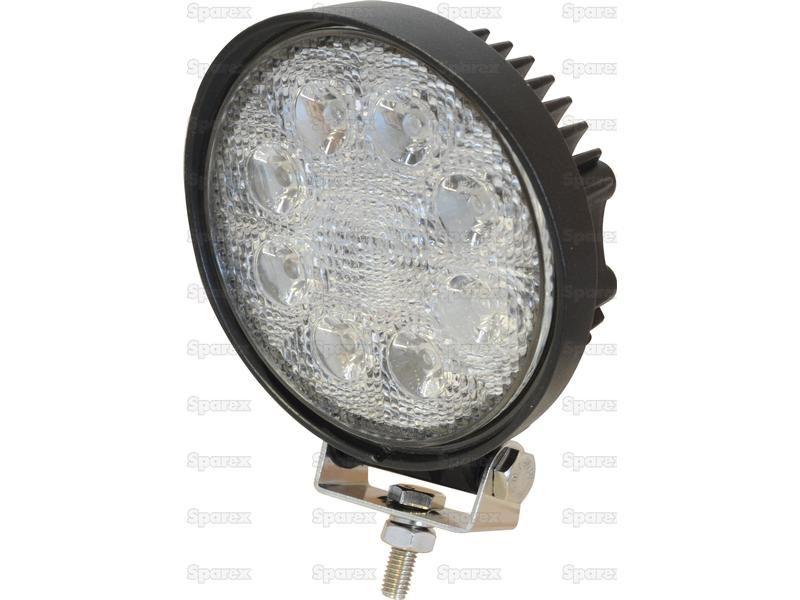

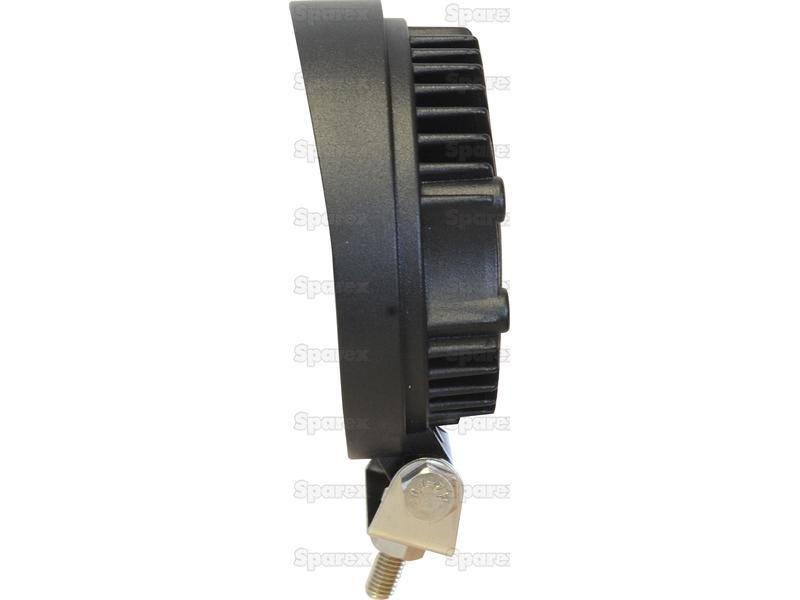

LED Work Light, Interference: Class 3, 1600 Lumens, 10-30V ()

Part Number: S.129485Categories: Electrical Accessories
LED Work Light, Interference: Class 3, 1600 Lumens, 10-30V ()
LED Work Light, Interference: Class 3, 1600 Lumens, 10-30V ()
LED Work Light, Interference: Class 3, 1600 Lumens, 10-30V ()
LED Work Light, Interference: Class 3, 1600 Lumens, 10-30V ()
LED Work Light, Interference: Class 3, 1600 Lumens, 10-30V ()

Part Number: S.129485

Grade: Replacement

Part Details

LED Work Light, Interference: Class 3, 1600 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP68Connection Type: None

Technical Information

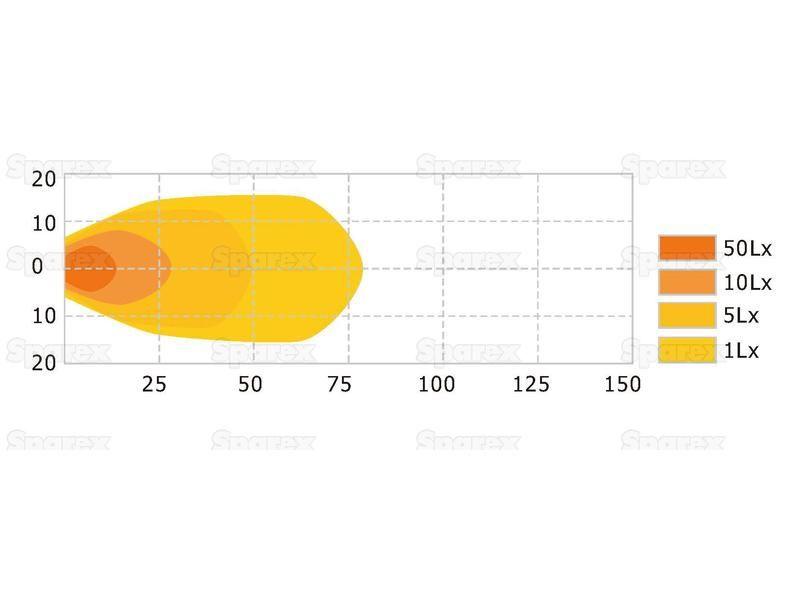

Beam Angle 60°
Beam Type 1 function
Brand Sparex
Cable length mm 400
CE Approved Yes
Connection Type None
ECE Rating Reg 10
Fixing 1 Bolt
Housing Material Aluminium
Interference EMC EMI CISPR 25 Class 3
IP Rating IP68
Lens Colour Clear
Lens Material Plastic Safety Glass
Light source LED
Lumens Effective 1300
Lumens Raw 1600
Lux Value 1800
Notes Dimensions without bracket
Number of LEDs 8 LEDs

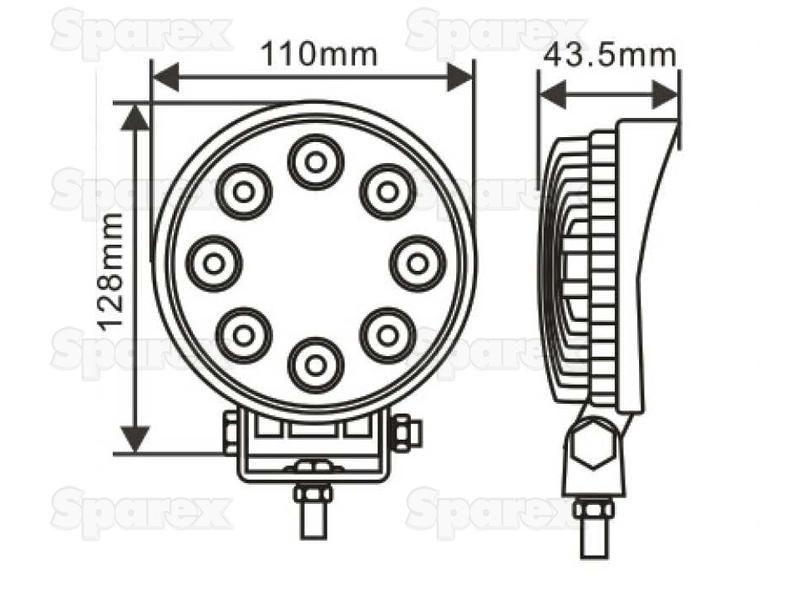

Overall height mm 128
Overall length mm 110
Overall width mm 43.5
Power Consumption @ 12V 0.67Amps
Power Consumption @ 24V 0.34Amps
RoHS Approved Yes
SAE Approved No
Shape Round
Tariff Code 8539500000
Volts 10-30V
Watts 8W
With Noise Suppression Yes
Working Temperature Degrees Centregrade -20°C to 60°C
