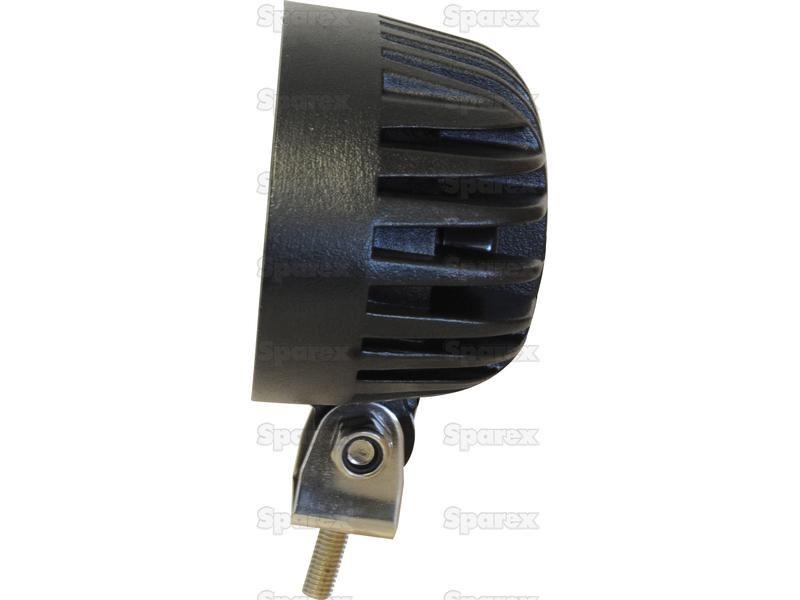

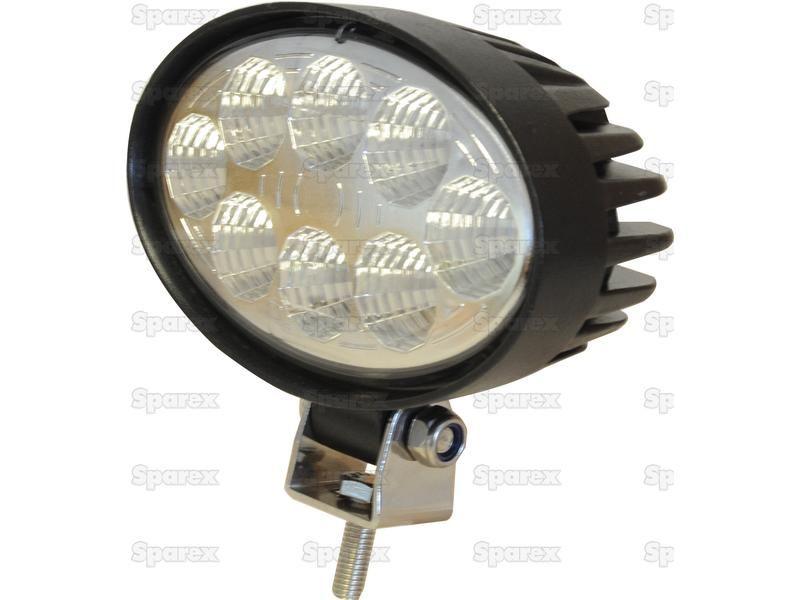

LED Work Light, Interference: Class 1, 3000 Lumens, 10-30V ()
Part Number: S.112527Categories: Electrical Accessories
Part Number: S.112527
Grade: Replacement
Part Details
LED Work Light, Interference: Class 1, 3000 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: For Male or Female Insulated Terminal
Technical Information

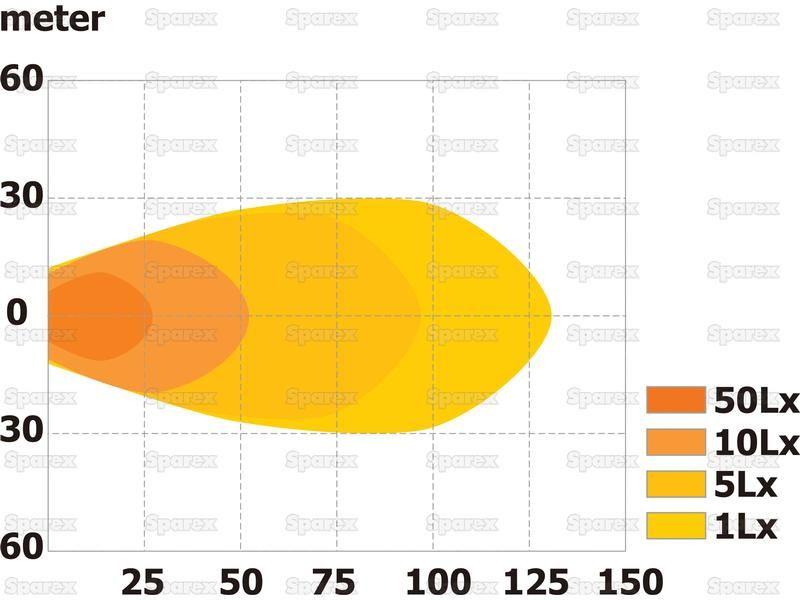

| Beam Angle | 60° |
| Beam Type | Flood Beam |
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | Yes |
| Connection Type | For Male or Female Insulated Terminal |
| ECE Rating | Reg 10 |
| Fixing | Bracket |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 1 |
| IP Rating | IP6K9K |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 1900 |
| Lumens Raw | 3000 |
| Lux Value | 7968 |
| Notes | Dimensions without bracket |
| Number of LEDs | 8 LEDs |
| On Off Switch | No |

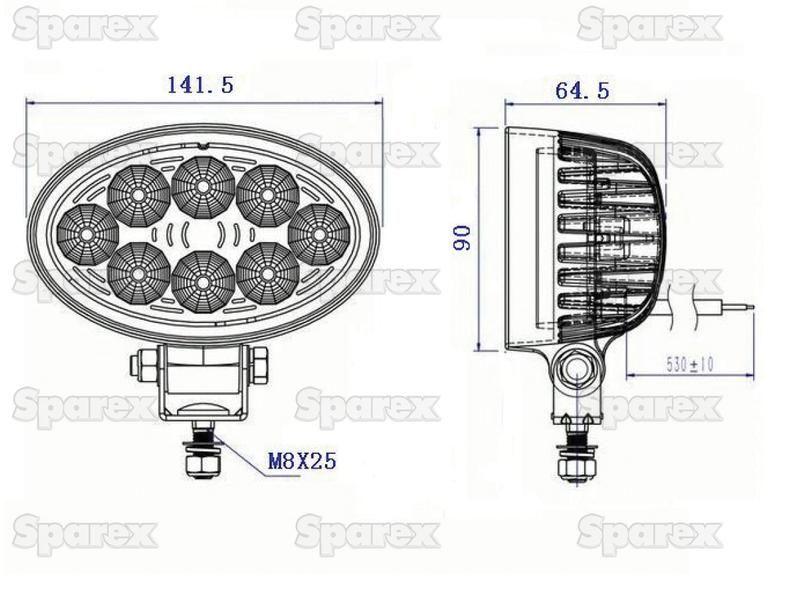

| Overall height mm | 120 |
| Overall length mm | 143 |
| Overall width mm | 65 |
| Power Consumption @ 12V | 1.67Amps |
| Power Consumption @ 24V | 0.83Amps |
| Related Products | 115244, 119256, 119258 |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Oval |
| Tariff Code | 8539500000 |
| Volts | 10-30V |
| Watts | 24W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 50°C |
