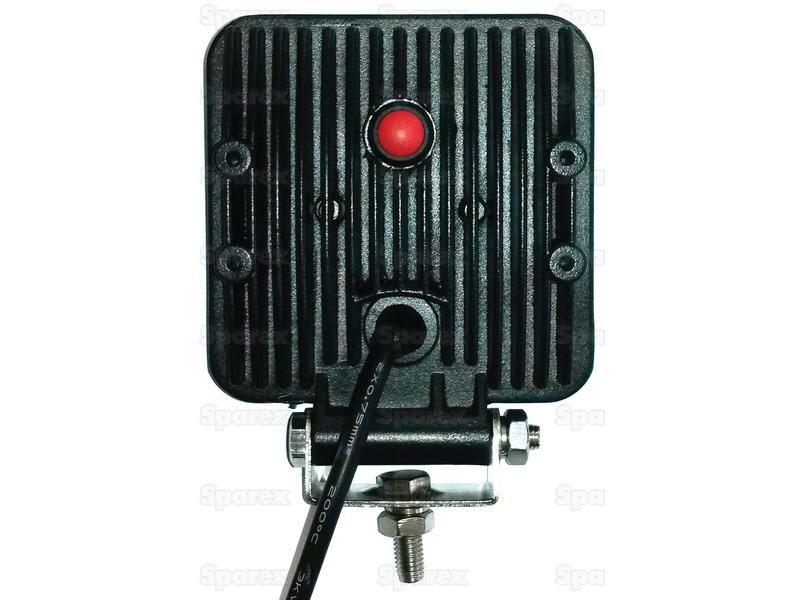

LED Work Light, Interference: Class 1, 1800 Lumens, 10-30V ()
Part Number: S.29318Categories: Electrical Accessories
Part Number: S.29318
Grade: Replacement
Part Details
LED Work Light, Interference: Class 1, 1800 Lumens, 10-30V () ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: For Male or Female Insulated Terminal
Technical Information
| Beam Angle | 80° |
| Beam Type | Flood Beam |
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | Yes |
| Connection Type | For Male or Female Insulated Terminal |
| ECE Rating | Reg 10 |
| Fixing | Bracket |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 1 |
| IP Rating | IP6K9K |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 1120 |
| Lumens Raw | 1800 |
| Lux Value | 1585 |
| Notes | Complete with on/off switch - Dimensions without bracket |
| Number of LEDs | 6 LEDs |
| On Off Switch | Yes |
| Overall height mm | 136 |
| Overall length mm | 107 |
| Overall width mm | 60 |
| Power Consumption @ 12V | 1.25Amps |
| Power Consumption @ 24V | 0.63Amps |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Square |
| Tariff Code | 8539213000 |
| Volts | 10-30V |
| Watts | 18W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 50°C |
