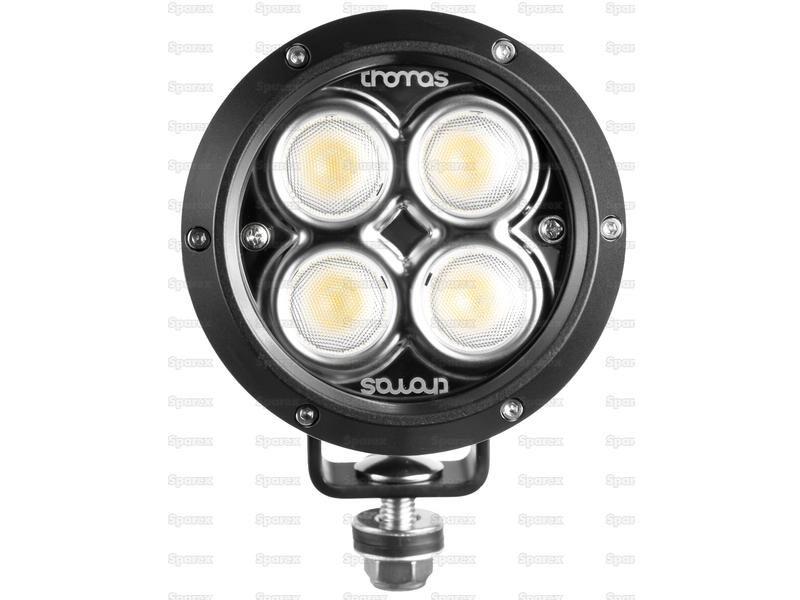

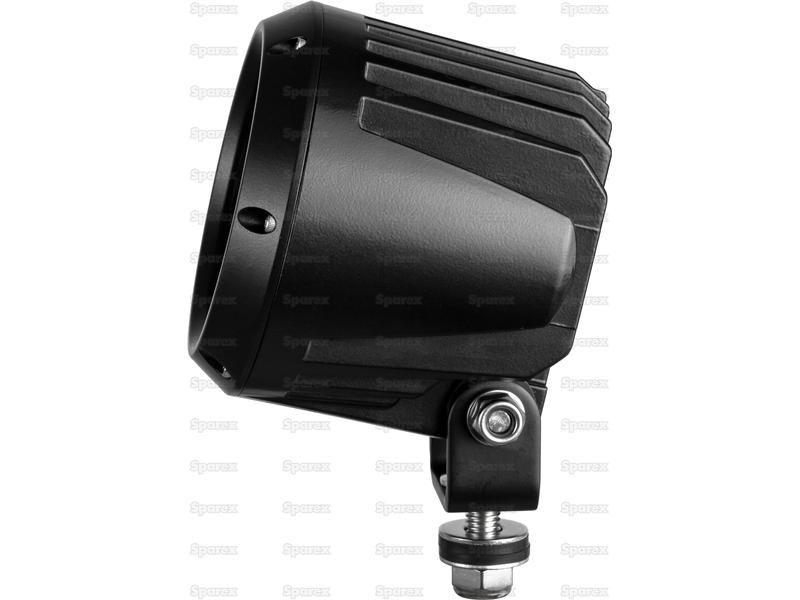

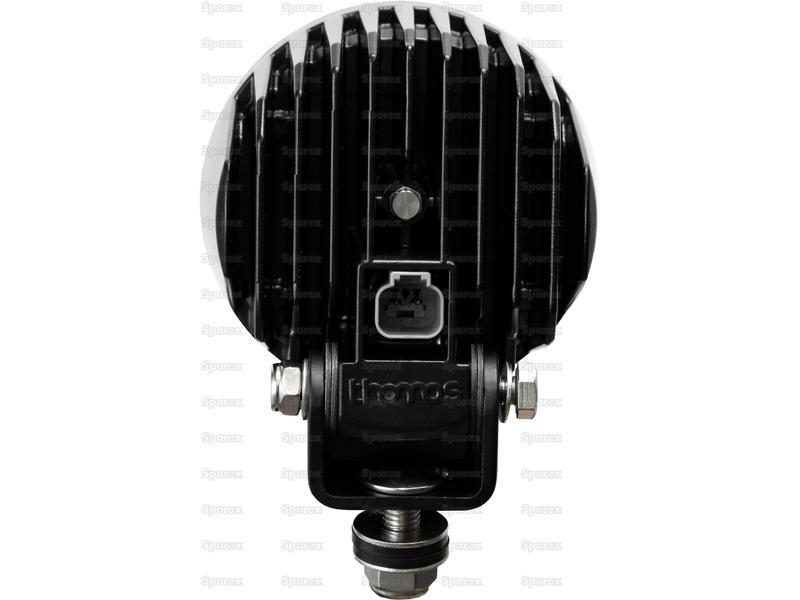

LED Work Light (Cree High Power), Interference: Class 3, 4300 Lumens, 10-60V for John Deere
Part Number: S.164167 - Categories: Electrical Accessories
£247.27
per item, including UK VAT and delivery
Part Number: S.164167
Grade: Replacement
Part Details
LED Work Light (Cree High Power), Interference: Class 3, 4300 Lumens, 10-60V ECE Rating: Reg 14CE Approved: YesIP Rating: IP68Connection Type: Integrated 2 pin Deutsch connector
Technical Information
| Beam Angle | 40° |
| Brand | Thomas LED |
| Brightness | 5700K |
| CE Approved | Yes |
| Connection Type | Integrated 2 pin Deutsch connector |
| ECE Rating | Reg 14 |
| Fixing | 1 Bolt |
| Function | Worklight |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP68 |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 4300 |
| Lumens Raw | 4300 |
| Number of LEDs | 4 LEDs |
| Overall height mm | 99 |
| Overall length mm | 130 |
| Overall width mm | 76 |
| Power Consumption @ 12V | 3.67Amps |
| Power Consumption @ 24V | 1.84Amps |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Round |
| Tariff Code | 8539100090 |
| Volts | 10-60V |
| Watts | 46W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 55°C |
Models
| John Deere |
|---|
| 5090R, 5100R, 5115R, 6110R, 6115R, 6120R, 6125R, 6130 (6030 Standard Series ), 6130R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6230 (6030 Standard Series ), 6330 (6030 Standard Series ), 6430 (6030 Standard Series ), 6530 (6030 Standard Series ), 6630 (6030 Standard Series ), 6830 (6030 Standard Series ), 6930 (6030 Standard Series ), 7210R, 7230R, 7250R, 7270R, 7290R, 7310R, 8225R, 8245R, 8270R, 8295R, 8320R, 8320RT, 8335R, 8345R, 8345RT, 8370R, 8370RT, 8400R, 9370R, 9420R, 9420RX, 9470R, 9470RT, 9470RX, 9520R, 9520RT, 9520RX, 9570R, 9570RT, 9570RX, 9620R, 9620RX, T550, T560, T660, T670, W540, W550, W650, W660 |
