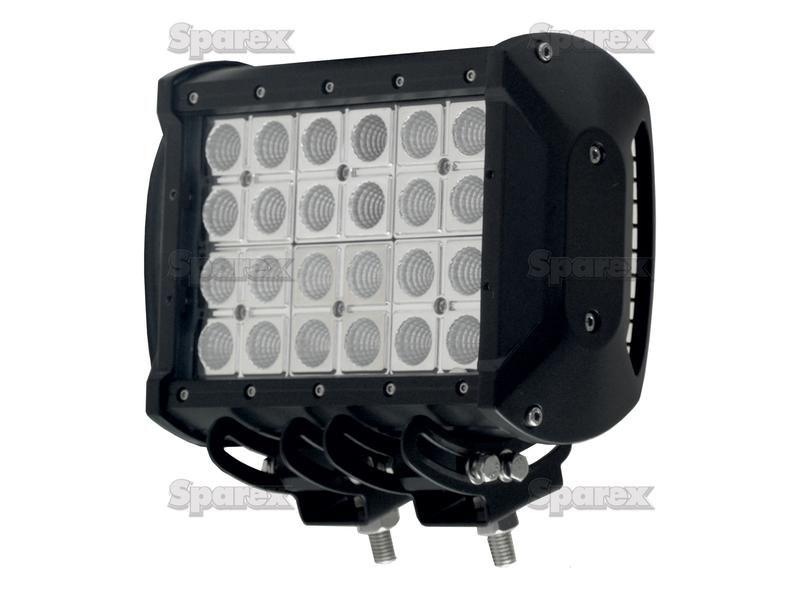

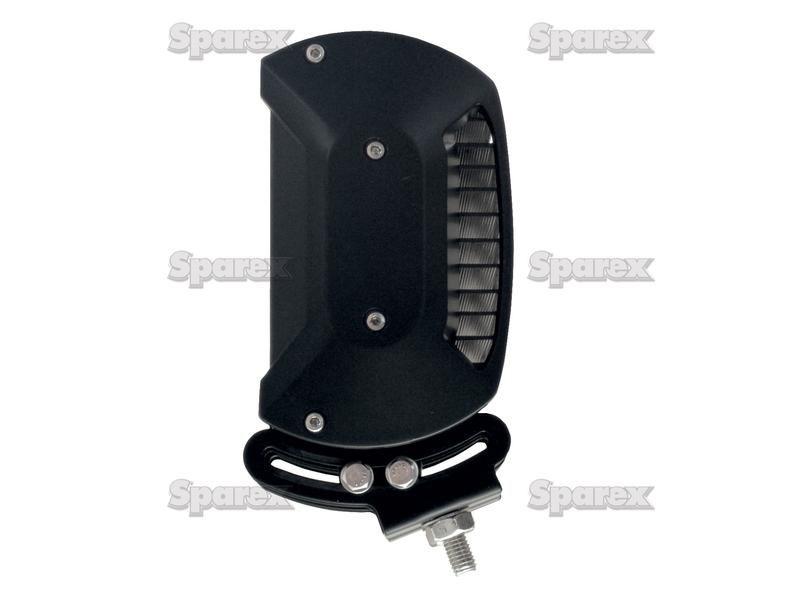

LED Work Light - aluminium case, 7200 lumen | 12/24 Volts, LEDs 24x3w
Part Number: S.28770Categories: Electrical Accessories
Part Number: S.28770
Grade: Replacement
Part Details
LED Work Light - aluminium case, 7200 lumen | 12/24 Volts, LEDs 24x3w ECE Rating: Reg 10CE Approved: NoIP Rating: IP67Connection Type:
Technical Information
| Beam Angle | 20° |
| Beam Type | Worklight |
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | No |
| ECE Rating | Reg 10 |
| Fixing | 2 Bolts |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Not Classified |
| IP Rating | IP67 |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 3003 |
| Lumens Raw | 7200 |
| Lux Value | 7200 |
| Notes | Dimensions without bracket |
| Number of LEDs | 24 LEDs |
| On Off Switch | No |

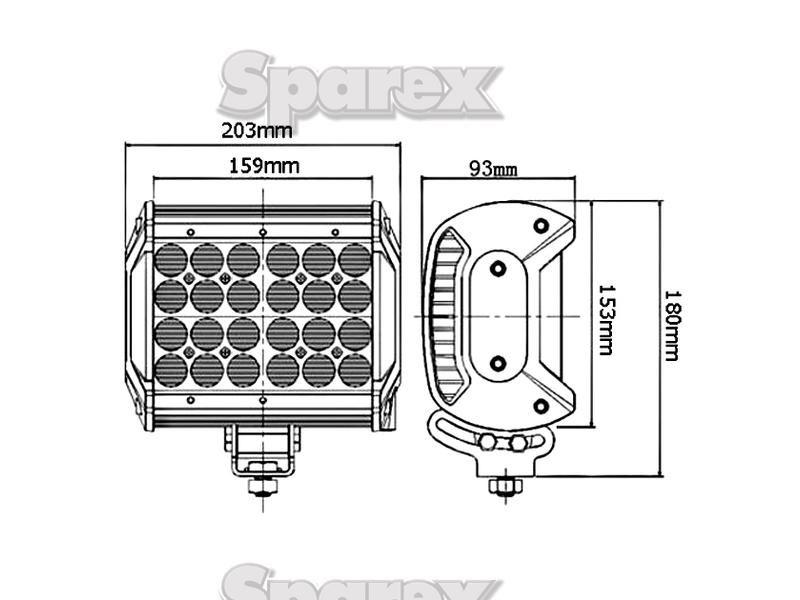

| Overall height mm | 180 |
| Overall length mm | 203 |
| Overall width mm | 93 |
| Power Consumption @ 12V | 3.85Amps |
| Power Consumption @ 24V | 2.09Amps |
| RoHS Approved | No |
| SAE Approved | No |
| Shape | Rectangular |
| Tariff Code | 8539213000 |
| Volts | 10-30V |
| Watts | 46-50W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 55°C |
