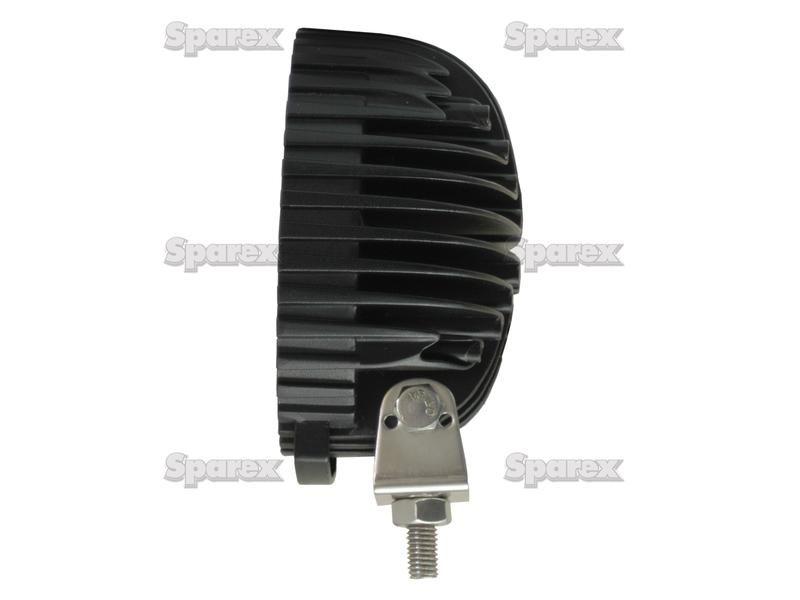

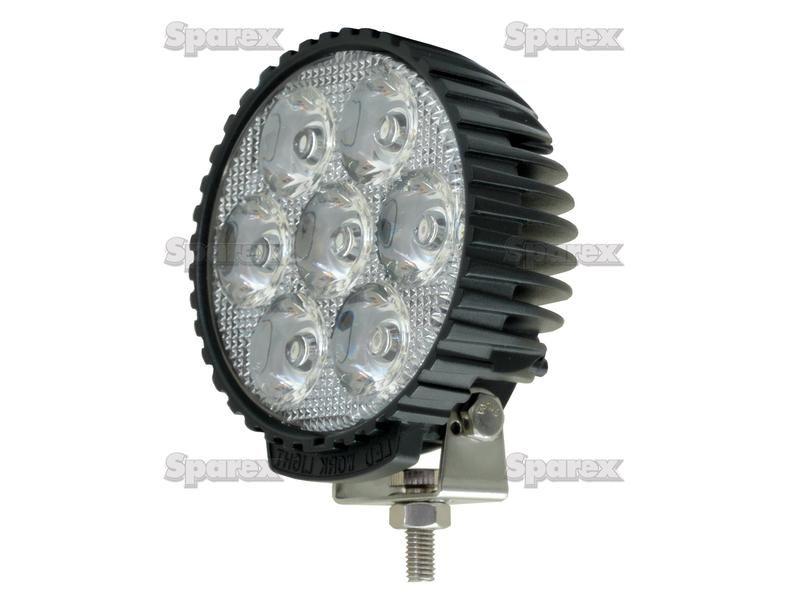

LED Work Light - aluminium case, 3180 lumen | 12/24 Volts, LEDs 6x5w
Part Number: S.28769Categories: Electrical Accessories
Part Number: S.28769
Grade: Replacement
Part Details
LED Work Light - aluminium case, 3180 lumen | 12/24 Volts, LEDs 6x5w ECE Rating: Reg 10CE Approved: YesIP Rating: IP6K9KConnection Type: For Male or Female Insulated Terminal
Technical Information

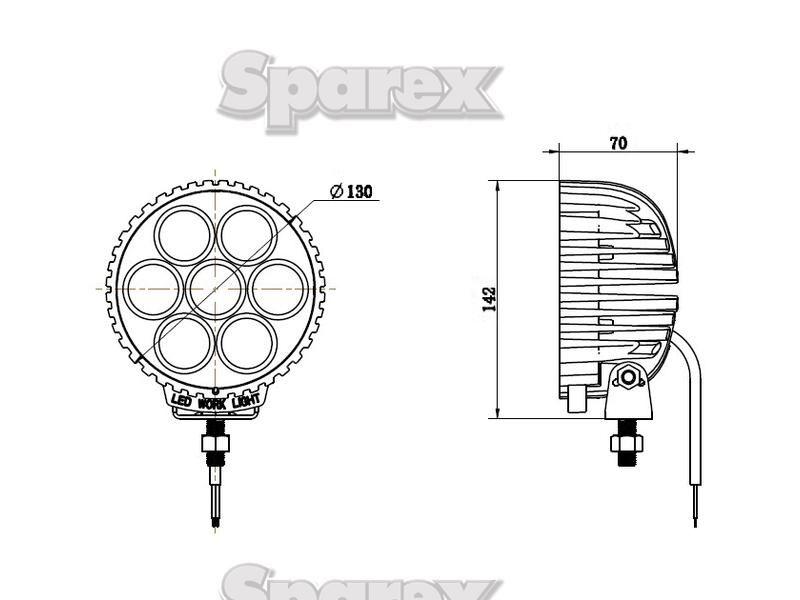

| Ø mm | 130 |

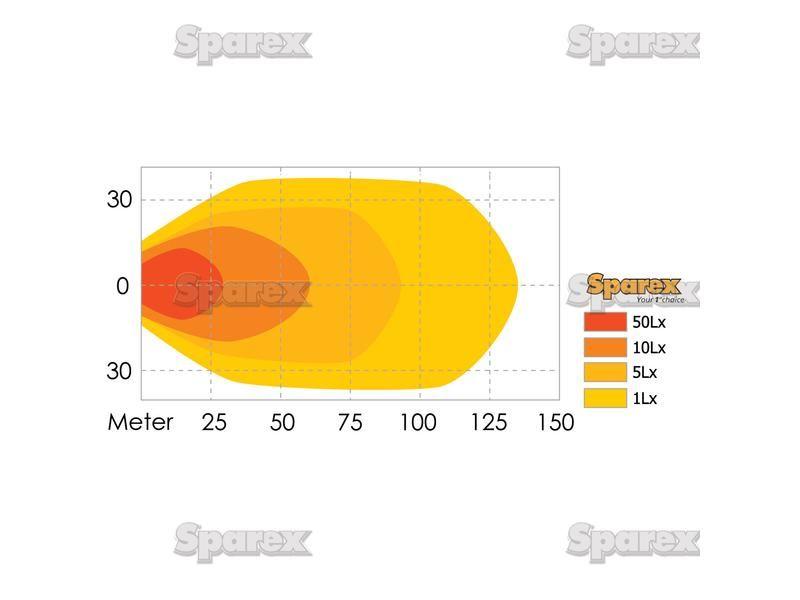

| Beam Angle | 60° |
| Beam Type | Flood Beam |
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | Yes |
| Connection Type | For Male or Female Insulated Terminal |
| ECE Rating | Reg 10 |
| Fixing | Bracket |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP6K9K |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 2960 |
| Lumens Raw | 3030 |
| Lux Value | 5240 |
| Notes | Dimensions without bracket |
| Number of LEDs | 7 LEDs |
| On Off Switch | No |
| Overall height mm | 130 |
| Overall length mm | 130 |
| Overall width mm | 110 |
| Power Consumption @ 12V | 2.42Amps |
| Power Consumption @ 24V | 1.21Amps |
| Related Products | 112533 |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Round |
| Tariff Code | 8539100090 |
| Volts | 10-30V |
| Watts | 40W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 50°C |
