LED Work Light - aluminium case, 1800 lumen | 12/24 Volts, LEDs 8x3w
Part Number: S.28767Categories: Electrical Accessories
Part Number: S.28767
Grade: Replacement
Part Details
LED Work Light - aluminium case, 1800 lumen | 12/24 Volts, LEDs 8x3w ECE Rating: Reg 10CE Approved: YesIP Rating: IP69KConnection Type: For Male or Female Insulated Terminal
Technical Information

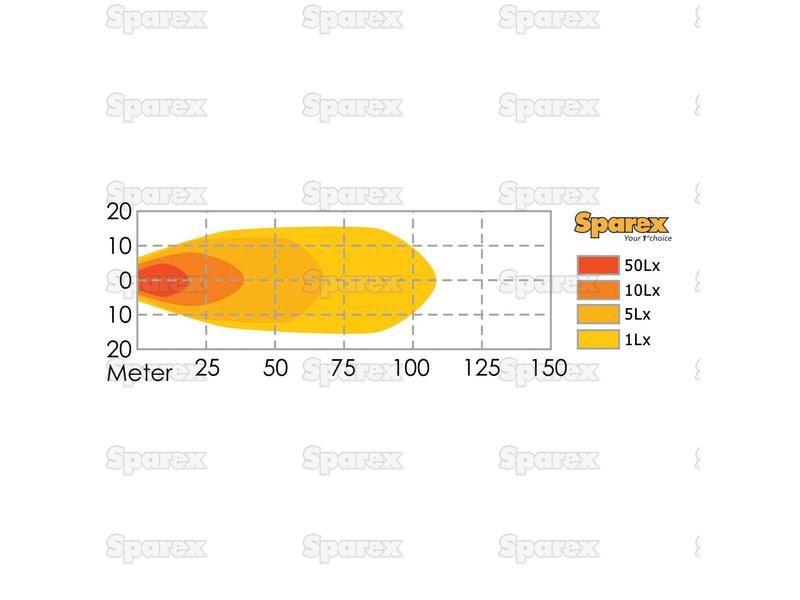

| Beam Angle | 60° |
| Beam Type | Flood Beam |
| Brand | Sparex |
| Cable length mm | 1000 |
| CE Approved | Yes |
| Connection Type | For Male or Female Insulated Terminal |
| ECE Rating | Reg 10 |
| Fixing | 1 Bolt |
| Housing Material | Aluminium |
| Interference EMC EMI CISPR 25 | Class 3 |
| IP Rating | IP69K |
| Lens Colour | Clear |
| Lens Material | Plastic Safety Glass |
| Light source | LED |
| Lumens Effective | 1760 |
| Lumens Raw | 2400 |
| Lux Value | 4335 |
| Notes | Dimensions without bracket |
| Number of LEDs | 8 LEDs |
| On Off Switch | No |

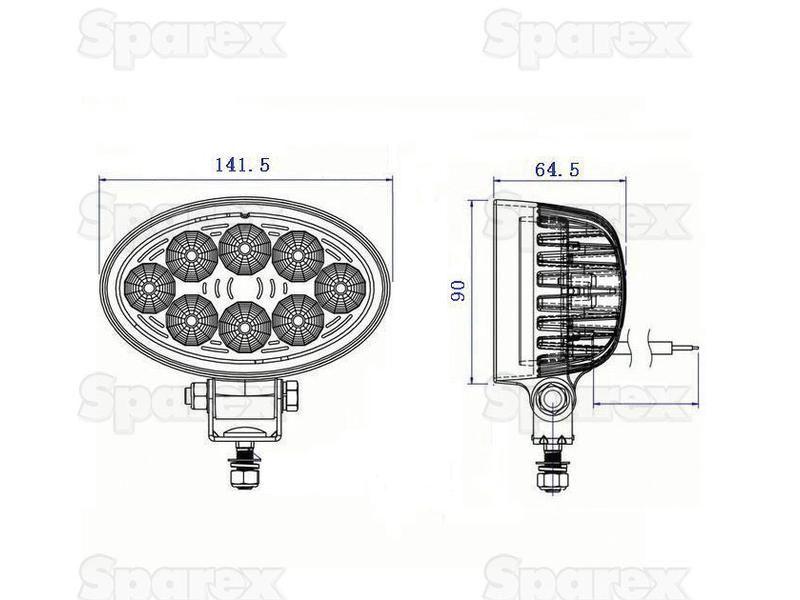

| Overall height mm | 90 |
| Overall length mm | 141.5 |
| Overall width mm | 64.5 |
| Power Consumption @ 12V | 1.67Amps |
| Power Consumption @ 24V | 0.83Amps |
| Related Products | 112533, 115244, 118931, 119256, 119258 |
| RoHS Approved | Yes |
| SAE Approved | No |
| Shape | Oval |
| Tariff Code | 8539213000 |
| Volts | 10-30V |
| Watts | 20W |
| With Noise Suppression | Yes |
| Working Temperature Degrees Centregrade | -40°C to 55°C |
